Page 48
Section 5: Technical Data
ES3610/11 User Guide
Page 48
I447GB issue 6

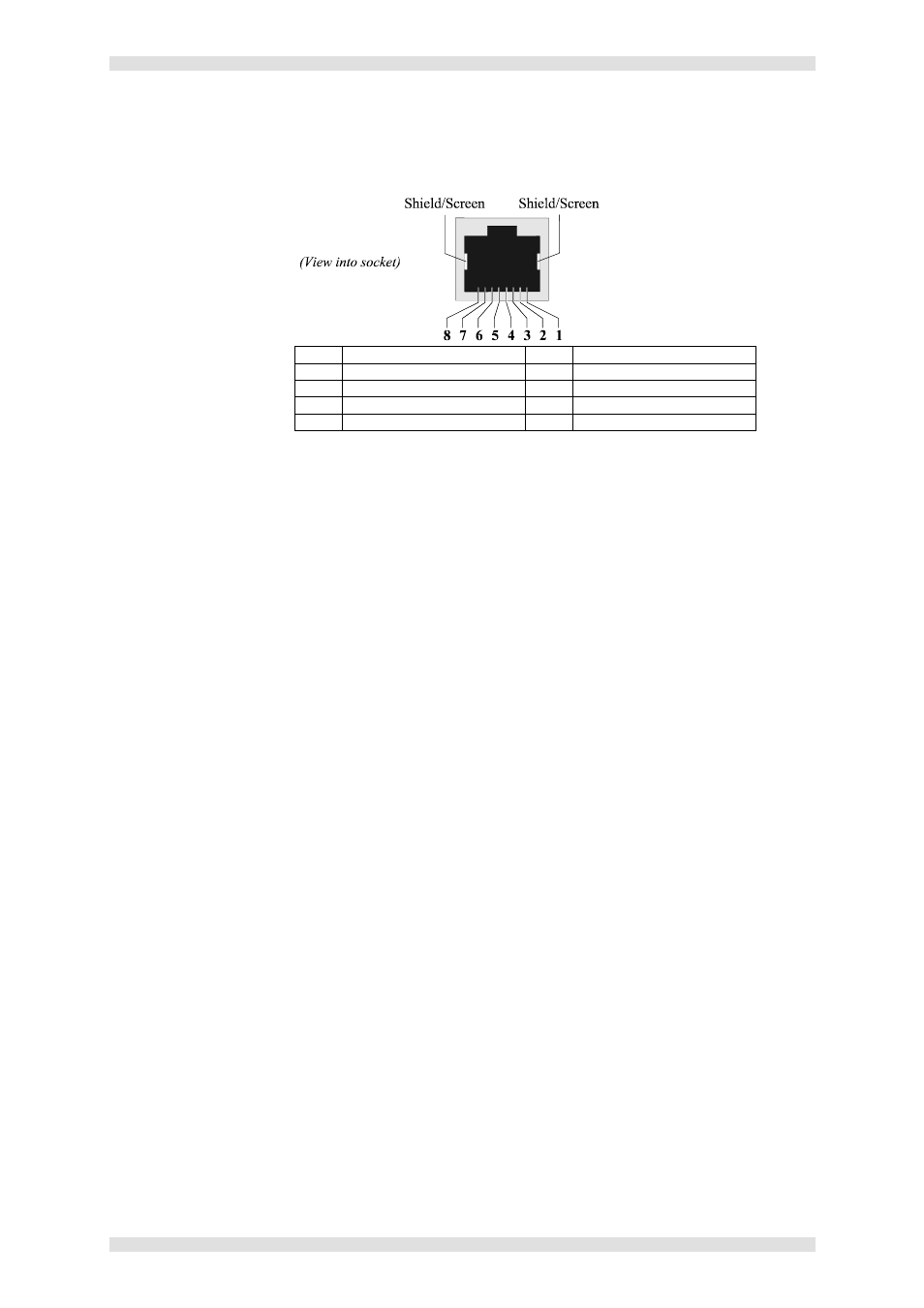

Network Connector
Function: Connection to a local area network and/or control PC.
Connector Type: Shielded RJ-45 Socket.
Pin-out Details:
Pin
Function
Pin
Function
1
TD+ (+ data transmit)
5
NC
2
TD- (- data transmit)
6
RD- (- data receive)
3
RD+ (+ data receive)
7
NC
4
NC
8
NC
Mating Connector: Shielded RJ-45 Plug.
Recommended Cable: Shielded twisted pair (STP).
Max. Cable Length: 100 metres (330 feet).
Comms Standard: 10Base-T, 100Base-T.
Ethernet (MAC)
Address:
00:E0:AA:03:xx:xx
where xx:xx is a unique hex address for each unit.
IP Address: Factory-set default is 172.28.231.98.
User-definable via setup utility & VN-GLIMPSE ADMINISTRATOR.
