ES3610/11 User Guide Section 1: Introduction
I447GB issue 6 Page 11

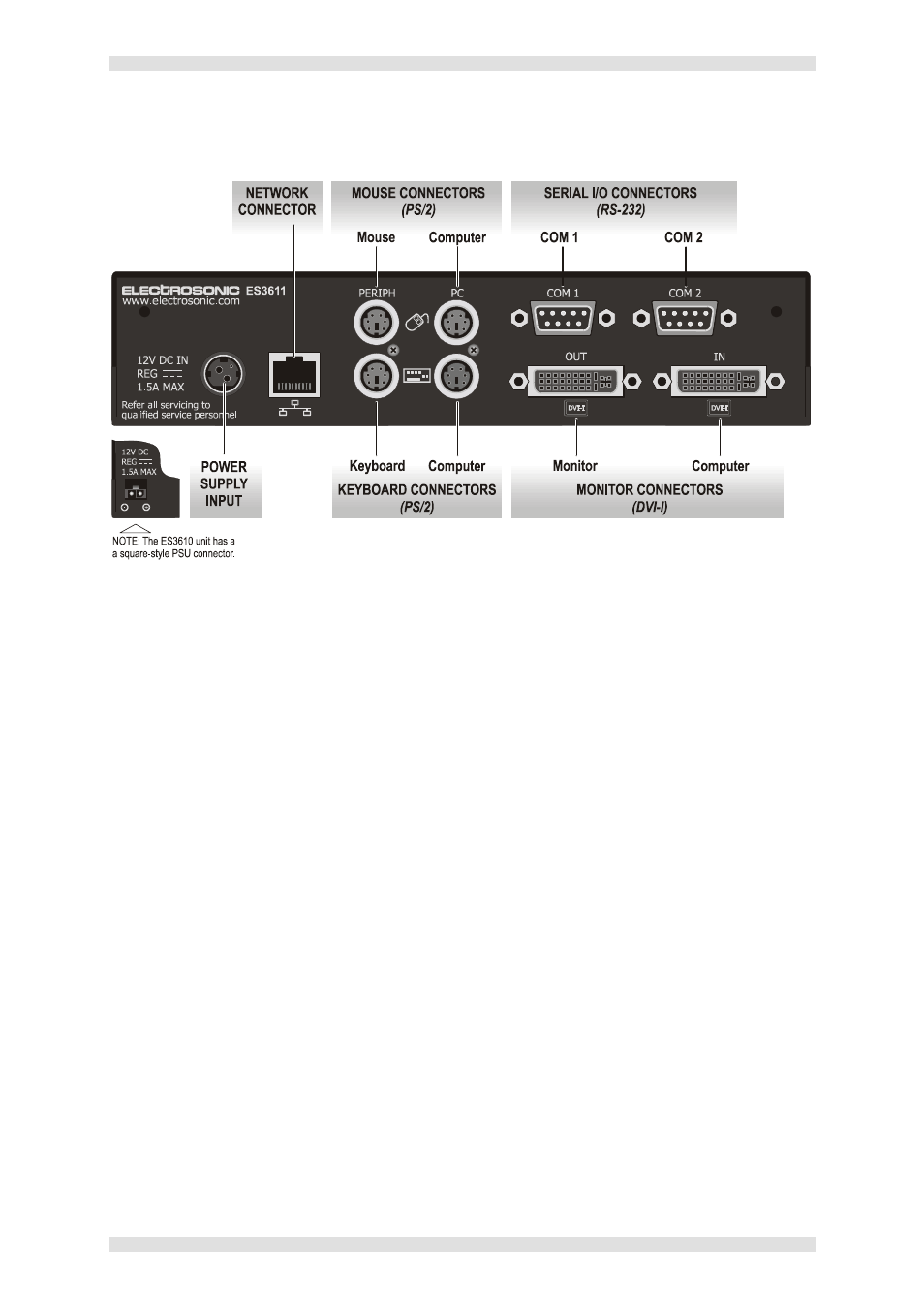

Rear Panel Features
Full details of connector types, pin-outs and specifications can be found in Section 5:Technical Data.
Briefly, these are as follows:
Power Supply Input
The RGB ADAPTER requires a 12V power supply via this connector. A suitable mains operated
power supply unit (PSU) is provided.
Network Connector
This connects the RGB ADAPTOR to the viewing station, usually via an Ethernet network. Captured
image data is output from here. Configuration (if needed) of the RGB ADAPTER is also achieved via
this connection. See page 27 for further details
Keyboard Connectors
Standard PS/2 connectors, used to connect the RGB ADAPTER between the source computer and its
keyboard.
Mouse Connectors
Standard PS/2 connectors, used to connect the RGB ADAPTER between the source computer and its
mouse.
Monitor Connectors
Standard DVD-I connectors, used to connect the RGB ADAPTER between the source computer and
its monitor. Compatible with both digital and analog sources – see Source Compatibility (page 12).
Serial I/O Connectors
Standard 9-pin connectors used to establish a serial data link between the RGB ADAPTER and an
external computer. These are not used during normal operation.
