Section 5: Technical Data ES3610/11 User Guide
Page 46 I447GB issue 6

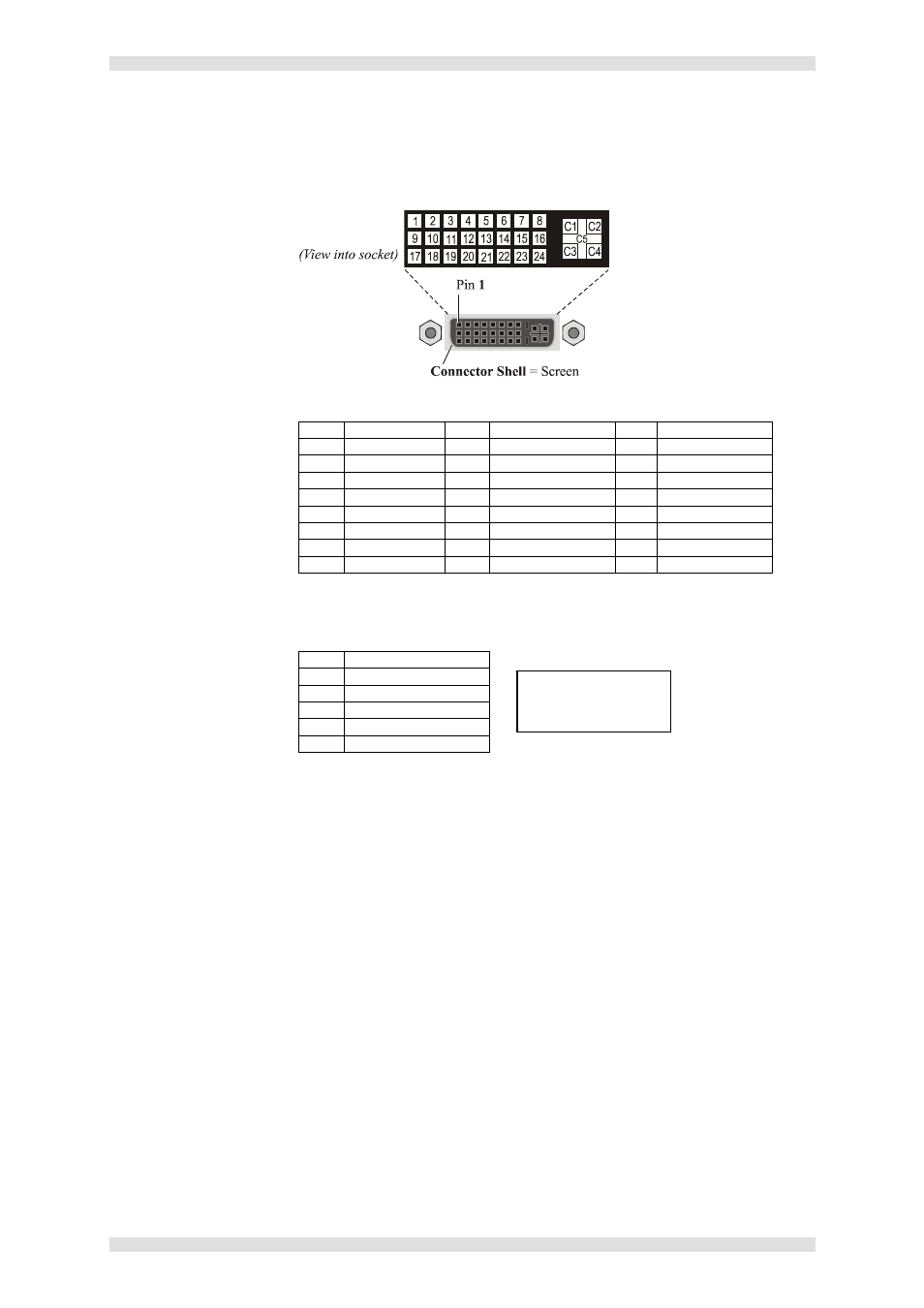

Monitor Connectors
Function: Monitor pass-through connections for source computer.
Connector Type: DVI-I (female).
Pin-out Details:
Digital Connections
Pin Function Pin Function Pin Function
1 TMDS 2- 9 TMDS 1- 17 TMDS 0-
2 TMDS 2+ 10 TMDS 1+ 18 TMDS 0+
3 Ground (2/4) 11 Ground (1/3) 19 Ground (0/5)
4 TMDS 4- 12 TMDS 3- 20 TMDS 5-
5 TMDS 4+ 13 TMDS 3+ 21 TMDS 5+
6 DDC Clock 14 +5V supply* 22 Ground (Clk)
7 DDC Data 15 Ground (for 5v) 23 TMDS Clock+
8 Analog V-Sync 16 Hot Plug Detect 24 TMDS Clock-
* Loop-thru connection only — 5V supply is provided by source.
Analog Connections
Pin Function
C1 Red Signal
C2 Green Signal
C3 Blue Signal
C4 Horizontal Sync
C5 Ground
Mating Connector: DVI-D or DVI-I (male).
Recommended Cable: Supplied DVI cables.
Maximum Cable Length: 2.95 metres (9.5 feet).
Signal Type: DVI (PanelLink® TMDS).
Pixel Clock: 25MHz – 165MHz.
Supported Sources: See table on page 48.
Color Depth: 24-bit maximum.
Scan Mode: Progressive.
DVI Standard: DVI 1.0
Display Data Channel
Standard:
DDC2B.
DDC Levels: V
IH
= 2.4V
V
OH
= 0.9V
I
LOADMAX
= 2mA
NOTE:
Analog Vertical Sync
is on pin 8.
