Serial (RS-232) Connectors
Function: COM1 – used for low level setup or system recovery.
COM2 – reserved for future expansion.
Connector Type: 9-pin D-type (male)

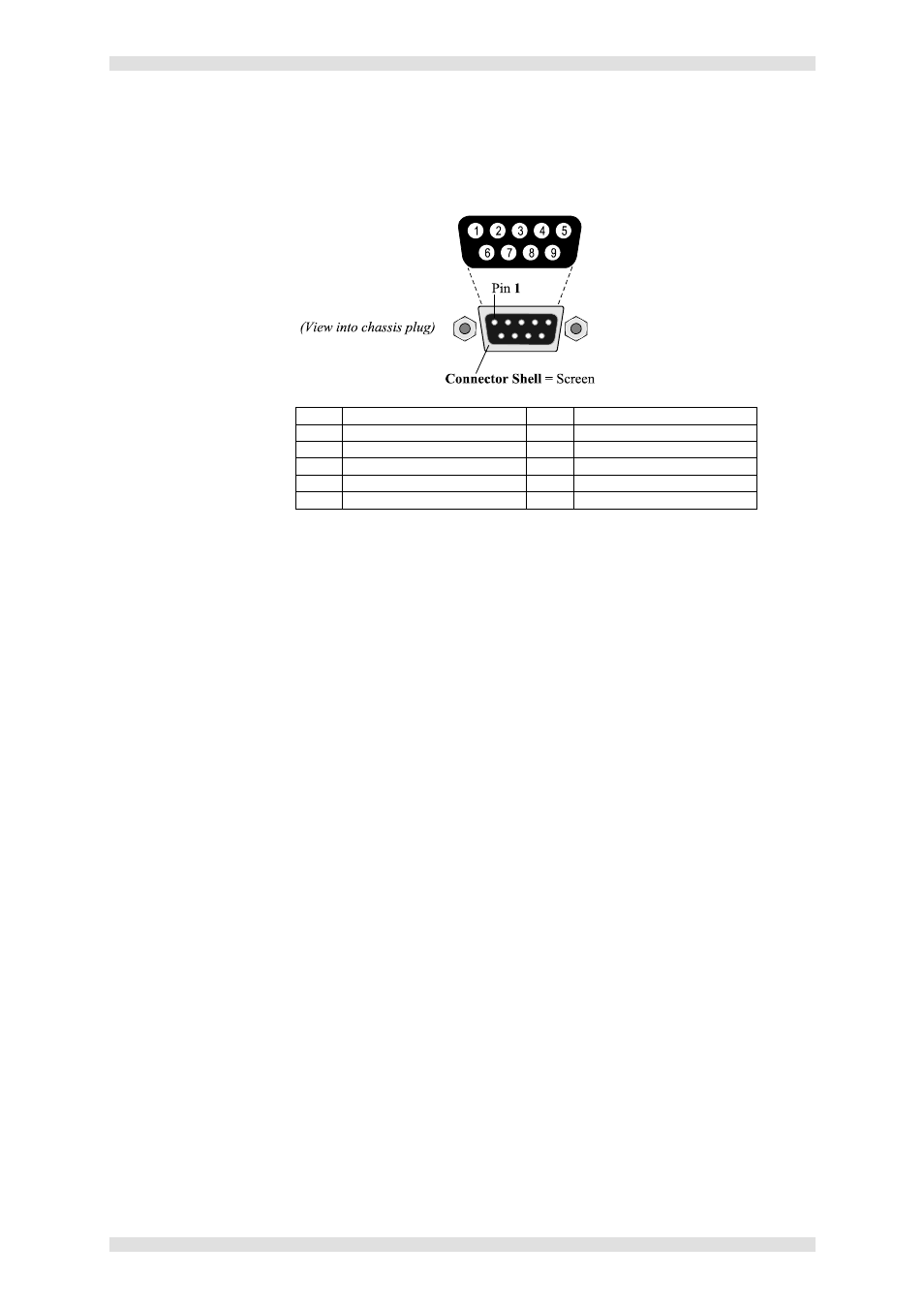

Pin-out Details:
Pin
Function
Pin
Function
1
DCD
6
DSR
2
RX (data in)
7
RTS
3
TX (data out)
8
CTS
4
DTR
9
RING
5
Ground
Mating Connector: 9-pin D-type (female)
with metal cover
Recommended Cable: 6-core plus overall screen (low capacitance),
0.22mm
2
min. per core.
Max. Cable Length: 2.95 metres (9.5 feet).
Comms Standard: RS-232.
COM1 Default Setting: Baud:
115200
Bits:
8
Parity:
None
Stop Bits:
1
Flow Control: None
