Extron Electronics ES3610_11 User Guide User Manual
Page 32
Section 3: VN-GLIMPSE Setup Utility
ES3610/11 User Guide
Page 32
I447GB issue 6

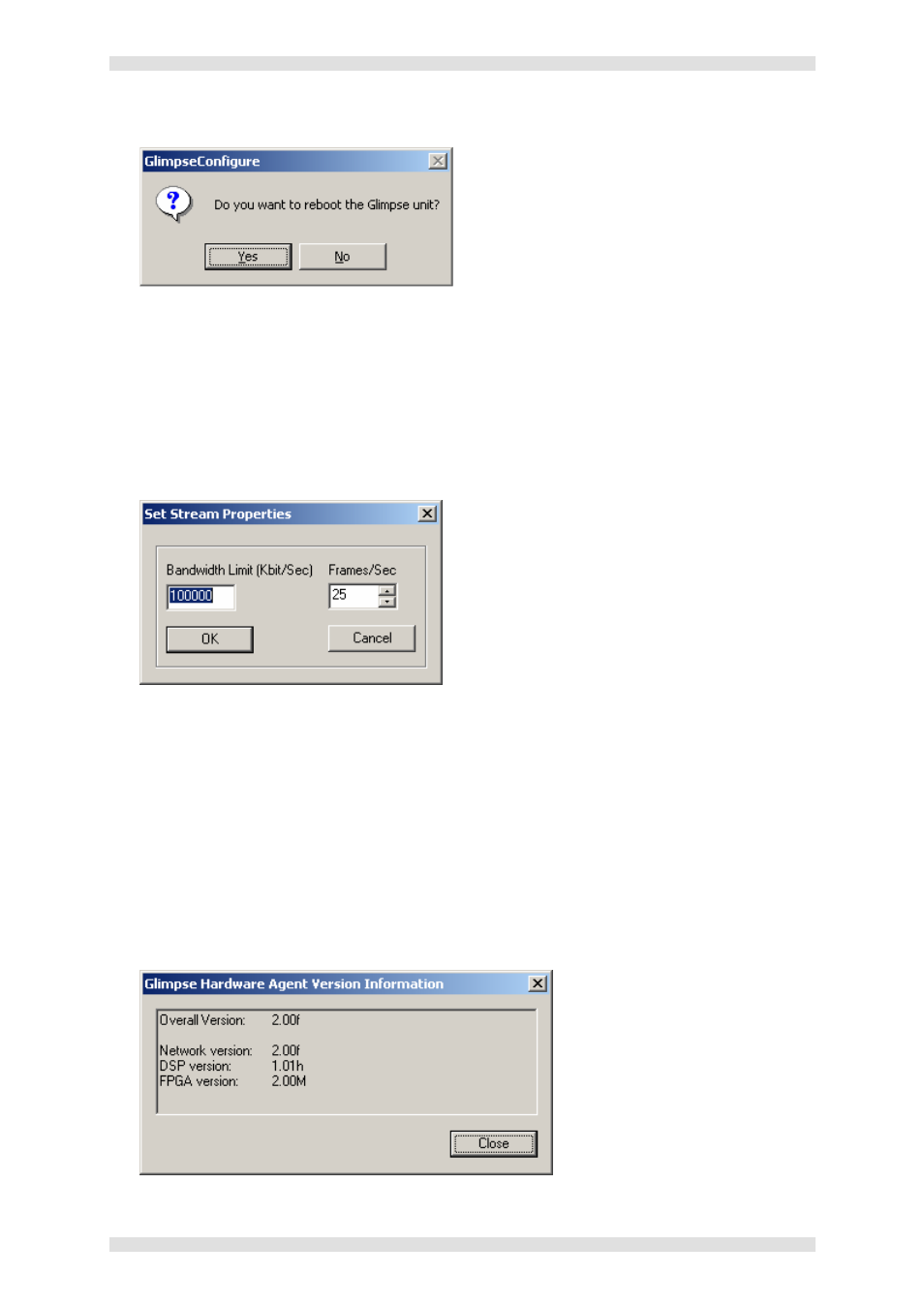

Click
OK to continue. The following dialog will now appear:
To reboot the RGB ADAPTER and implement the new settings now, click
Yes.
Otherwise, click
No — the settings will be implemented the next time that the RGB ADAPTER is
rebooted.
To change Encoder Parameters (Stream Settings)…
Click the
Stream Settings button.
The Set Stream Settings dialog will appear:
To change the maximum refresh rate, adjust the
Frames/Sec value.
To change the maximum bandwidth available to the RGB ADPATER, set the
Bandwidth Limit
value as required.
HINT: For advice about using these parameters, see ‘Understanding VN-GLIMPSE Performance’
(pages 56-58).
To check the current Firmware Version…
Click the
Version button.
The Version Information dialog will appear:
