Front panel features, Indicators – Extron Electronics ES3610_11 User Guide User Manual
Page 10
Section 1: Introduction
ES3610/11 User Guide
Page 10
I447GB issue 6

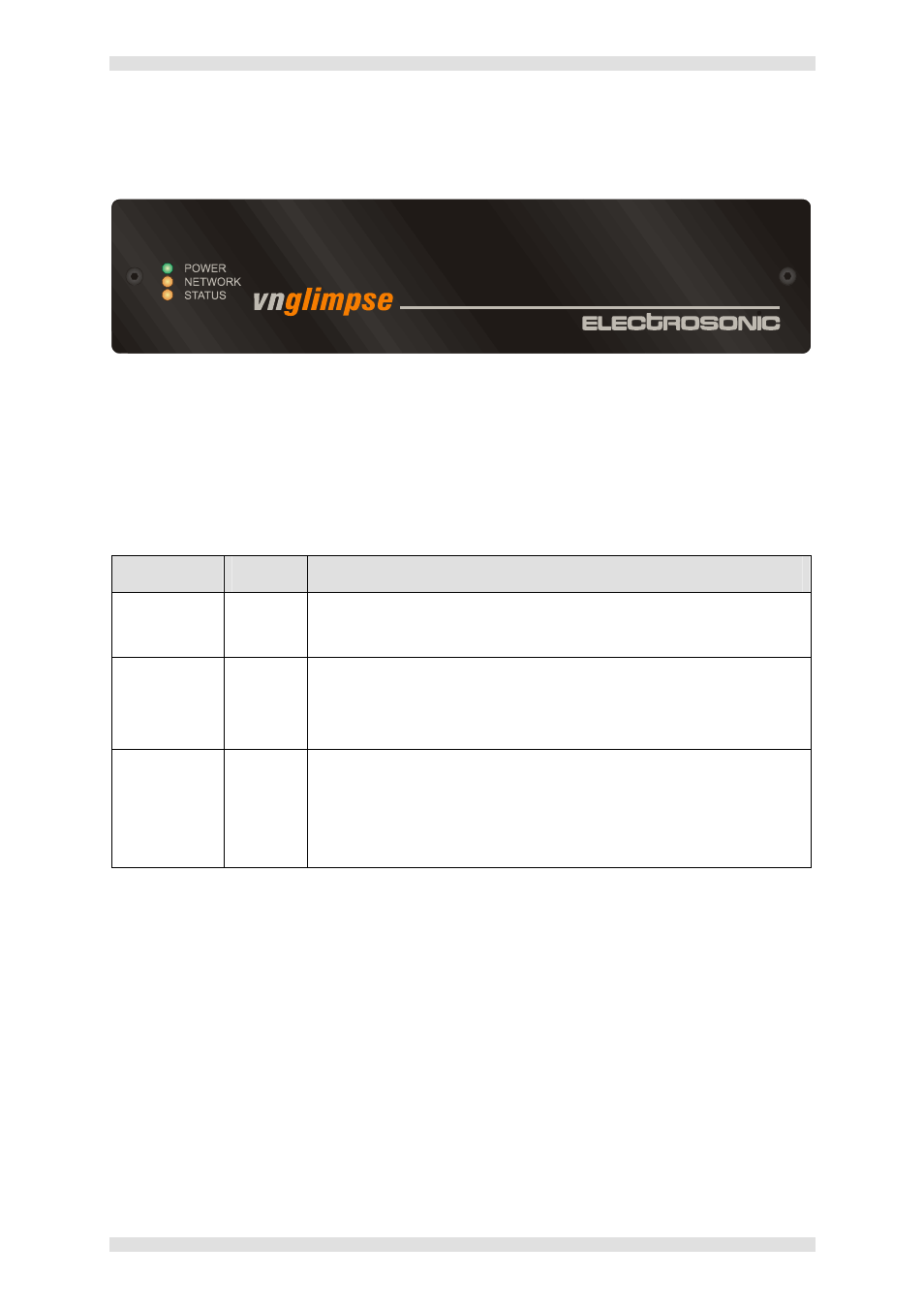

Front Panel Features
Indicators
The following indicators are visible on the front of the RGB ADAPTER:
Name
Color
Function
POWER
Green
Lit when the unit is receiving power from the 12V supply input.
NETWORK
Orange
Indicates the status of the Ethernet connection:
Flashing Intermittently – data is being transmitted across the network.
Unlit – no network connection detected.
STATUS
Orange
Indicates the internal status of the RGB ADAPTER:
Lit – the unit is working normally and is connected to a valid source.
Flashing Regularly – the unit is working normally but has no source.
Unlit – the unit is not functioning correctly.
NOTE: When the RGB ADAPTER is powered-up the NETWORK and STATUS indicators will light up
or flash intermittently for around 15 seconds while the unit initializes.
