Control inputs/outputs, Keyboard/mouse connectors – Extron Electronics ES3610_11 User Guide User Manual
Page 45
ES3610/11 User Guide
Section 5: Technical Data
I447GB issue 6
Page 45
Control Inputs/Outputs
Keyboard/Mouse Connectors
Function: Keyboard and mouse pass-through connections for source computer.
Connector Type: 6-pin mini-DIN (female)

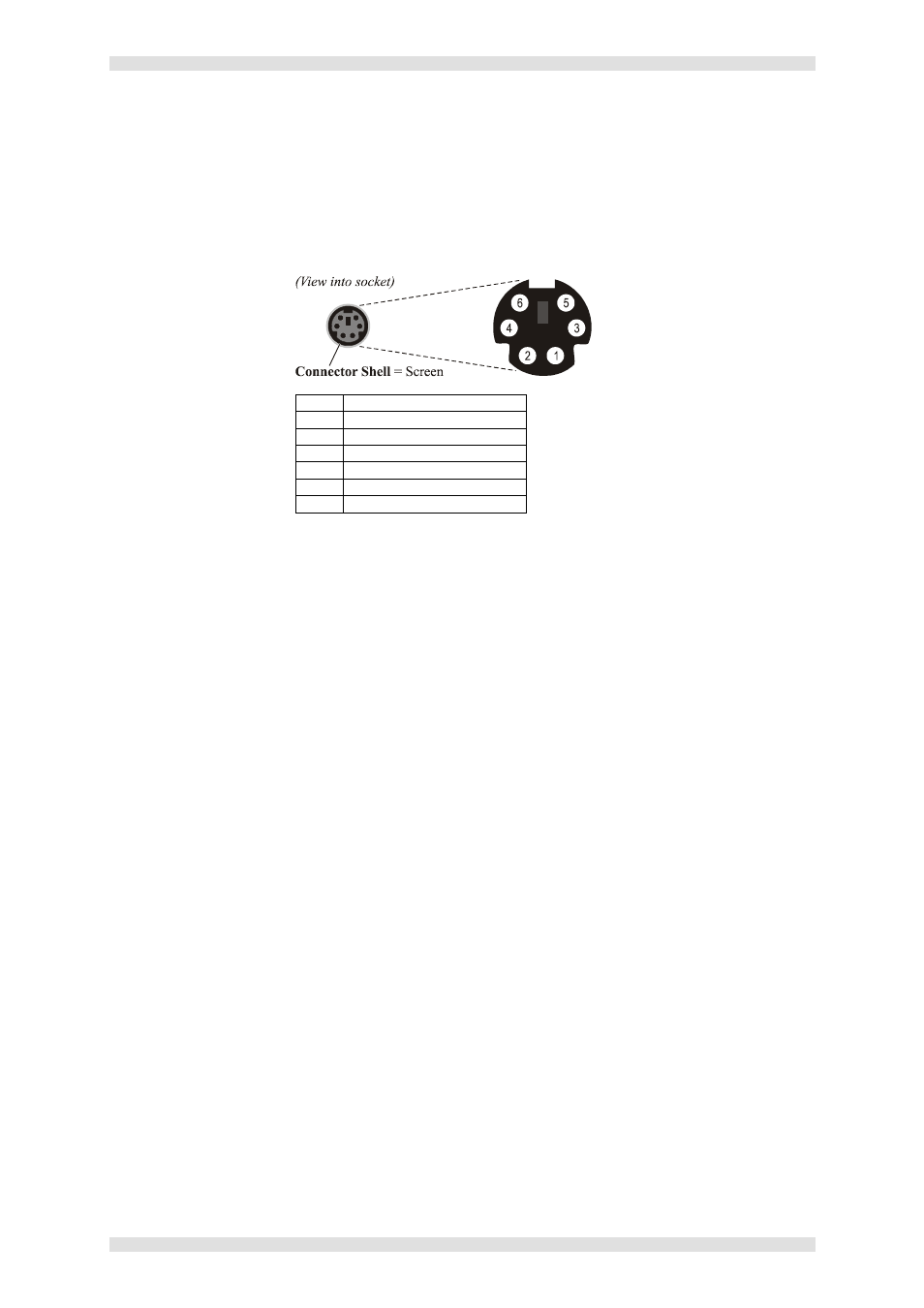

Pin-out Details:
Pin
Function
1
Data
2
No connection
3
Ground
4
+5V supply*
5
Clock
6
No connection
* 5V on pin 4 limited to 200mA by thermal fuse.
Mating Connector: 6-pin mini-DIN (male).
Recommended Cable: Supplied PS/2 cable.
Max. Cable Length: 2.95 metres (9.5 feet).
