Matrix Software, cont’d
MVX VGA A Matrix Switchers • Matrix Software 5-12
PRELIMINAR
Y
Initialize — Initializes and clears any or all of the following: ties, presets, audio
configuration, preset names, icon names, and icons.

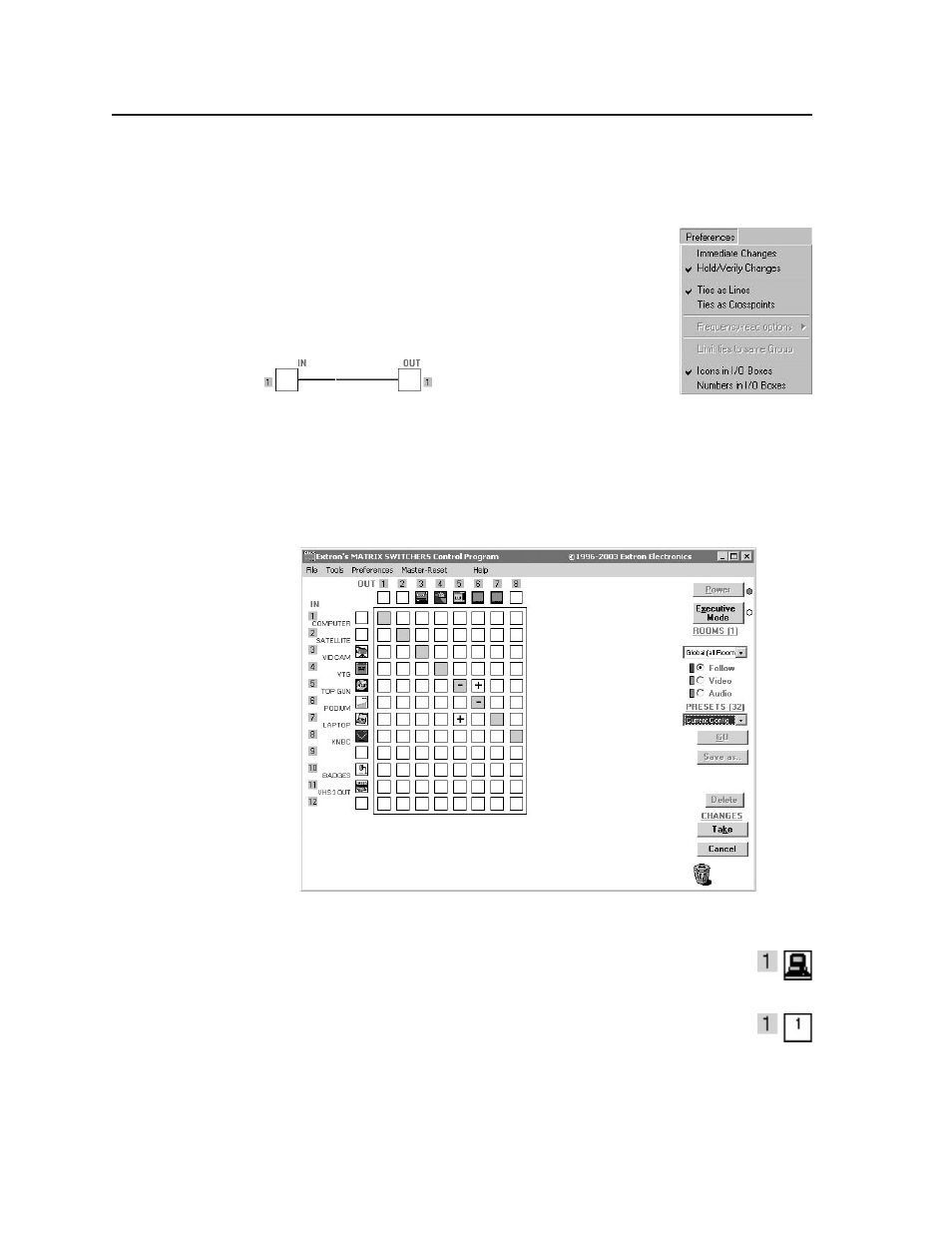

Preferences menu
Immediate changes — Causes configuration changes to take
effect immediately.
Hold/verify changes — Delays implementation of
configuration changes until the Changes – Take button
is pressed.
Ties as lines — Displays ties as lines (figure 5-11).
Figure 5-11 — Ties shown as lines
Ties as crosspoints — Displays ties as a matrix of inputs and outputs (figure 5-12).
Ties that have been made are indicated as amber (video and audio), green
(video only), and red (audio only) boxes. Ties that will take effect when you
click the Take button are indicated by +. Ties that will be broken when you
click the Take button are indicated by –.
Figure 5-12 — Ties shown as crosspoints
Icons in I/O boxes — Erases any numbers in the I/O boxes in the
Control Program window (figure 5-5). You can place icons in the
boxes.
Numbers in I/O boxes — Erases any icons in the I/O boxes in the
Control Program window and fills each box with the associated
input or output number.
Master-Reset selection
Master reset clears all ties and presets, all video and audio mutes, resets all I/O
grouping, sets all input audio levels to unity gain (+0 dB), and sets all output
volume levels to 100% (0 dB of attenuation).
