3-23 MVX VGA A Matrix Switchers • Operation
PRELIMINAR
Y
4 . Press and release the Enter button (figure 3-37). The current configuration
is now stored in memory location 13 (MVX 128 VGA A) or location 17
(MVX 1212 VGA A, MVX 168 VGA A, MVX 1616 VGA A).
ENTER PRESET VIEW ESC
CONTROL
The Enter and Preset LEDs
return to the unlit state.
Press the Enter button to
save the preset.
All input LEDs
return to the
unlit state.

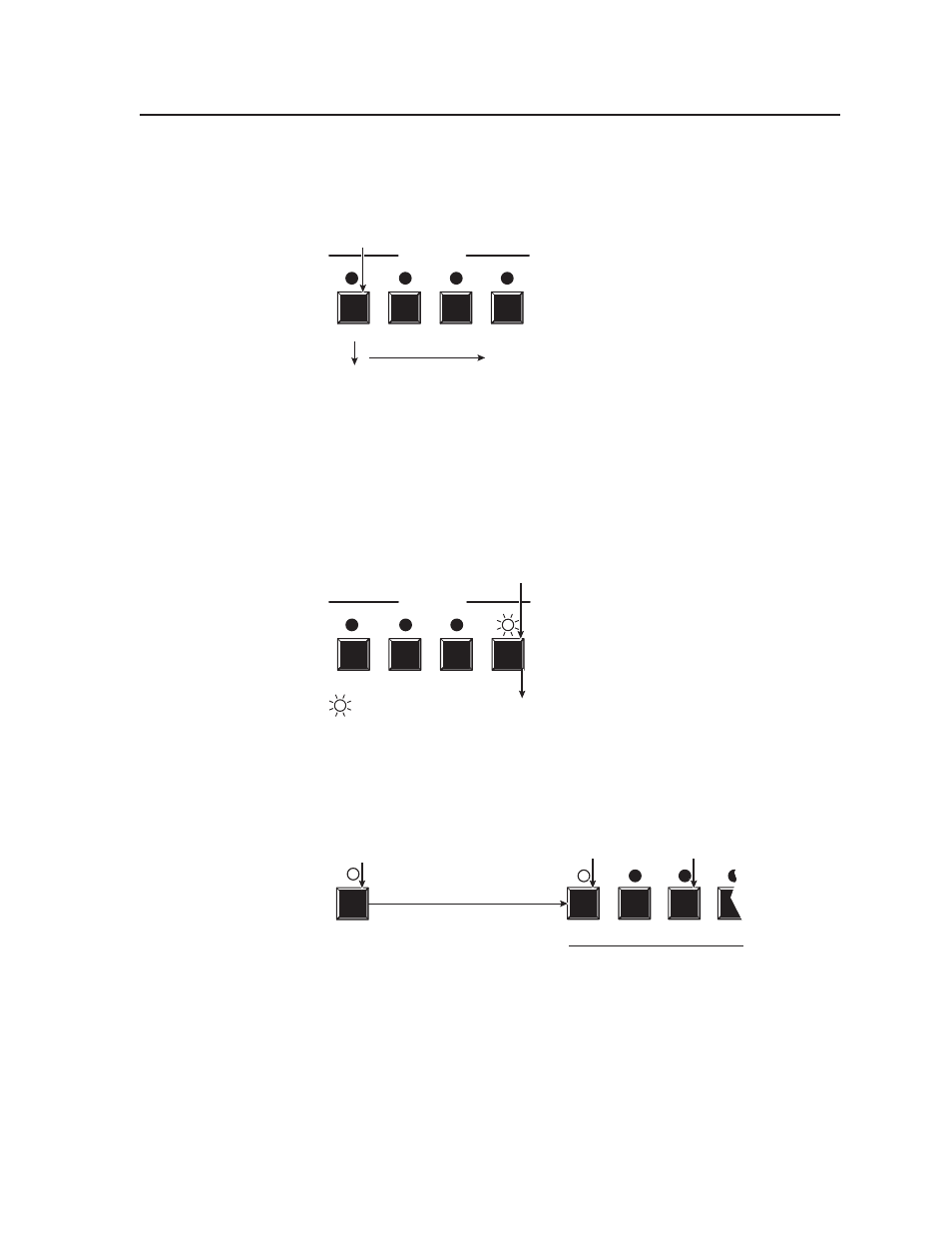

Figure 3-37 — Press the Enter button
Example 7: Recalling a preset
The following steps show an example in which a preset is recalled to become the
current configuration. The steps show the front panel indications that result from
your actions.
1 . Press and release the Esc button (figure 3-38).
ENTER PRESET VIEW ESC
CONTROL
Press the Esc button to clear all selections.
The LED blinks once. = LED blinks once. 1
1
Figure 3-38 — Clear all selections
2 . Press and release the Preset button (figure 3-39).
PRESET 1 2 3 4
Preset 13 Preset 14 Preset 16 Preset 15
Press and release the Preset button.
The Preset LED lights.
All input and output LEDs
with assigned presets light.
Lit
(Preset Assigned)
Unlit
(Preset Unassigned)
Figure 3-39 — Enter Recall Preset mode
