3-17 MVX VGA A Matrix Switchers • Operation
PRELIMINAR
Y
5 . Press and release the RGBHV button to deselect RGBHV (figure 3-24).
RGBHV AUDIO
I/O
2 3 4 5
OUTPUTS
6 7 8
The output buttons for outputs that are not tied to input 5 are unlit.
The output buttons for outputs that are tied to input 5 light to
indicate audio ties (audio breakaway).
The Audio LED remains
lit to indicate that only
audio is selected. Press the RGBHV
button to delesect it.
The LED is unlit
when deselected.

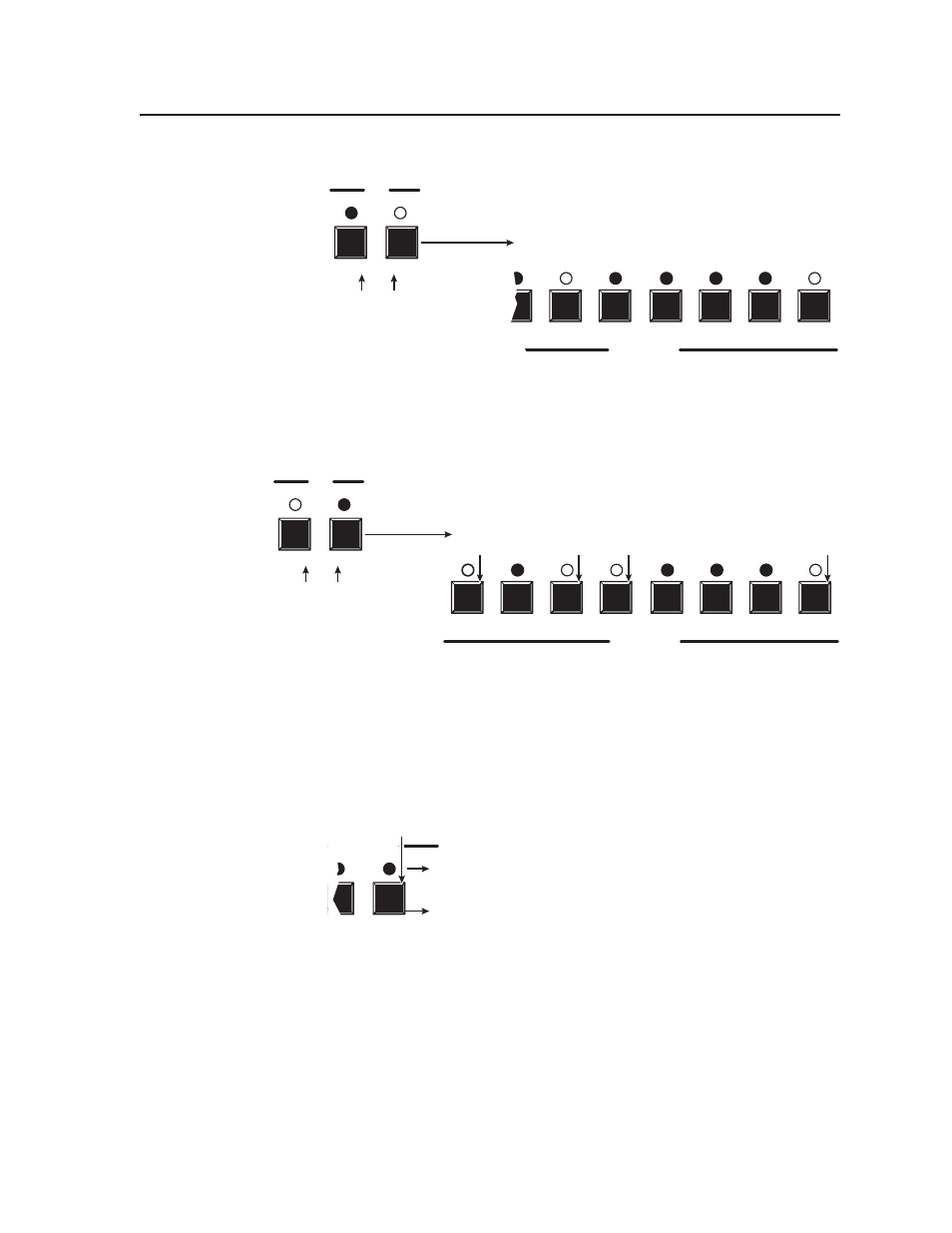

Figure 3-24 — Deselect RGBHV to view audio ties only
6 . Press and release the RGBHV button and the Audio button to toggle the
RGBHV LED lit and the Audio LED unlit (figure 3-25).
VIDEO AUDIO
I/O
2 3 1 4 5
OUTPUTS
6 7 8
The output buttons are unlit for outputs that are not tied to input 5.
The output buttons for outputs that are tied to input 5 light to indicate audio ties
(audio breakaway).
Press the Audio button
to deselect it.
The LED is unlit when
deselected. Press the RGBHV
button to select it.
The LED lights
when selected.
Figure 3-25 — Deselect audio and select RGBHV to view RGBHV only
If video ties are established for input 5, the output LEDs light for all video
outputs tied to input 5. If no ties are established for input 5, all output LEDs
return to the unlit state.
7 . Press and release the View button to exit View-only mode (figure 3-26).
SET VIEW
CONTROL
Press the View button
to exit View-Only mode.
The View LED returns
to the unlit state.
All input LEDs and output
LEDs return to the unlit state.
Figure 3-26 — Press the View button to exit View-only mode
