Operation, cont’d
MVX VGA A Matrix Switchers • Operation 3-12
PRELIMINAR
Y
5 . Press and release the Enter button (figure 3-13).
ENTER
The Enter LED and all input LEDs and
output LEDs return to the unlit state.
Press the Enter button to confirm
the configuration change.
Figure 3-13 — Press the Enter button

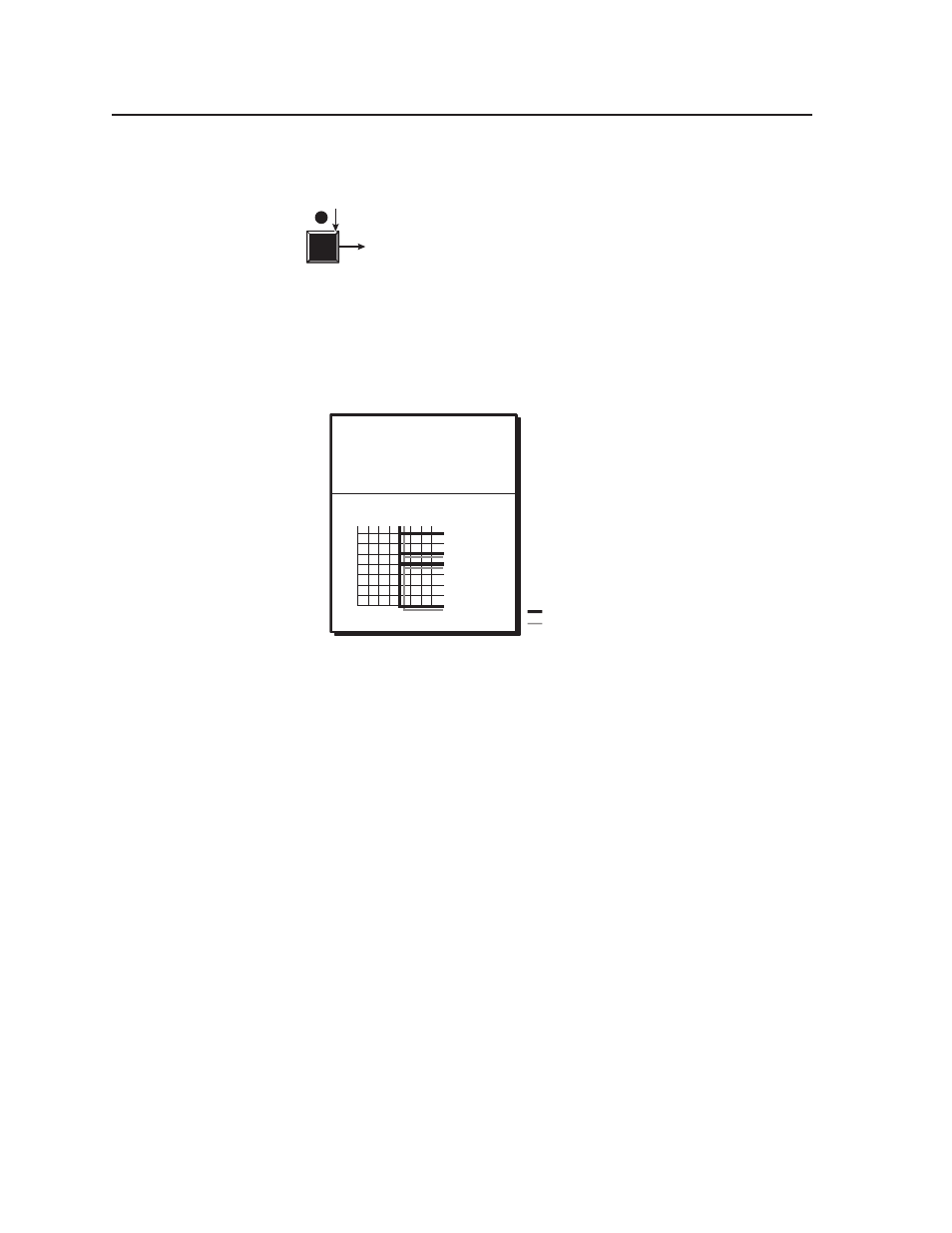

The current configuration (figure 3-14) is now:
• Input 5 (video) is tied to output 1, output 3, output 4, and output 8.
• Input 5 (audio) is tied to output 3, output 4, and output 8.
Input 5 video tied
to outputs 1, 3, 4, and 8
Input 5 audio tied
to outputs 3, 4, and 8
Input
Output
1
3
4
8
5
Video
Audio
Figure 3-14 — Example 2, final configuration
