Operation, cont’d
MVX VGA A Matrix Switchers • Operation 3-24
PRELIMINAR
Y

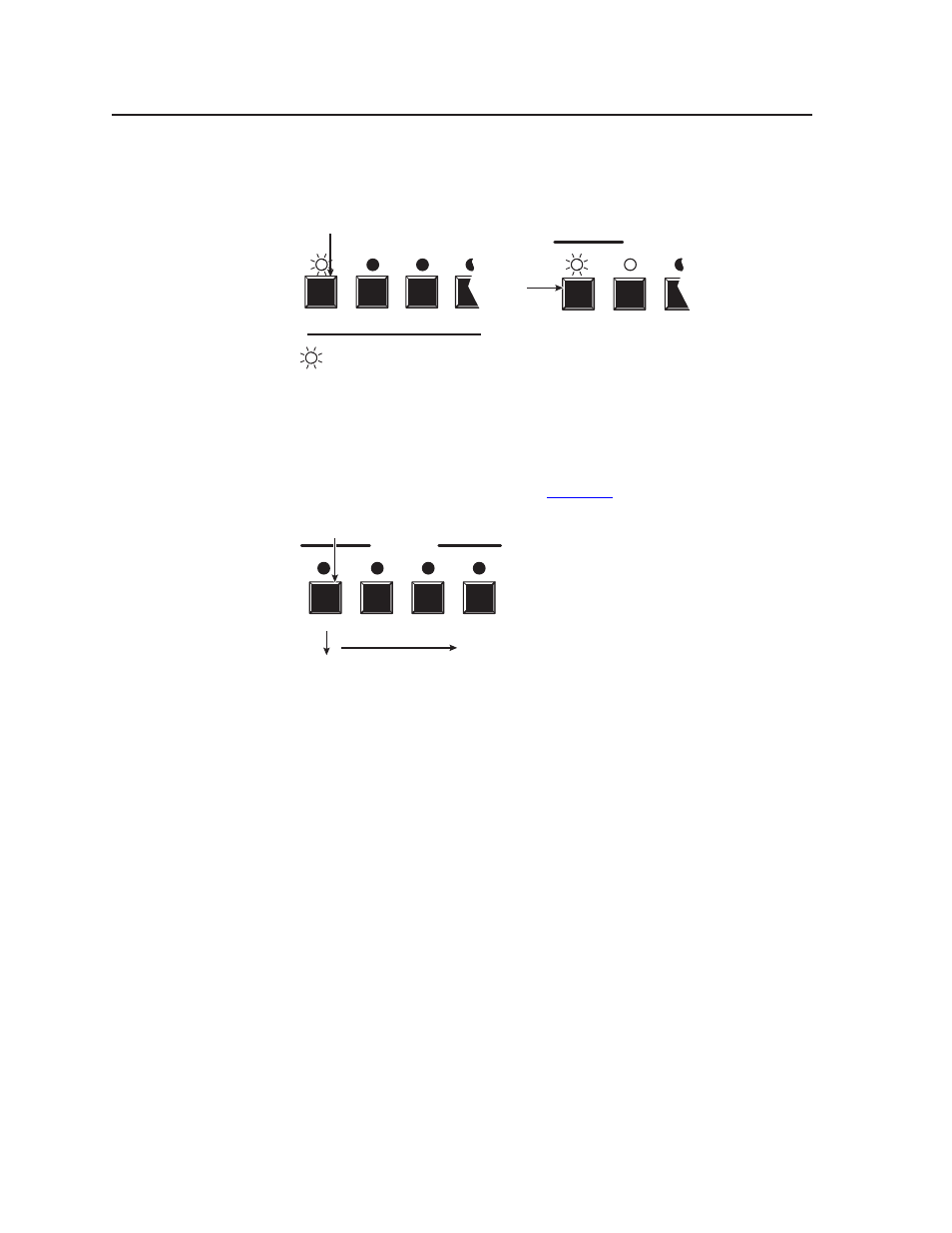

3 . Press and release the Output 1 button (figure 3-40).
ENTER PRESET VIEW
CONTROL 1 2 3 4
1 2 3 4
The Enter LED blinks to indicate
the need to recall the preset.
The Preset LED remains lit.
Press and release the Output 1 button.
The LED blinks to indicate that this
preset
number is selected but not recalled.
= Blinking LED
Preset 13 Preset 14 Preset 16 Preset 15
Figure 3-40 — Select the preset
4 . Press and release the Enter button (figure 3-41). The configuration stored in
memory location 13 (MVX 128 VGA A) or location 17 (MVX 1212 VGA A,
MVX 168 VGA A, MVX 1616 VGA A) is now the current configuration and can
be viewed in the View-only mode (see example 4, earlier in this chapter).
ENTER PRESET VIEW ESC
CONTROL
The Enter and Preset LEDs
return to the unlit state.
Press the Enter button to
recall the preset.
All input LEDs
return to the
unlit state.
Figure 3-41 — Press the Enter button
