Operation, cont’d
MVX VGA A Matrix Switchers • Operation 3-10
PRELIMINAR
Y
4 . Press and release the output 3, output 4, and output 8 buttons (figure 3-6).
N The entire set of ties can be canceled at this point by pressing and releasing the
Esc button. The Esc LED flashes once.
1 2 3 4 5
OUTPUTS
6 7 8
ENTER PRESE
Press and release the Output 3, Output 4, and Output 8 buttons.
The buttons blink to indicate that the selected RGBHV and
audio input will be tied to these outputs.
The Enter LED blinks to indicate
the need to confirm the change.
= Blinking LED

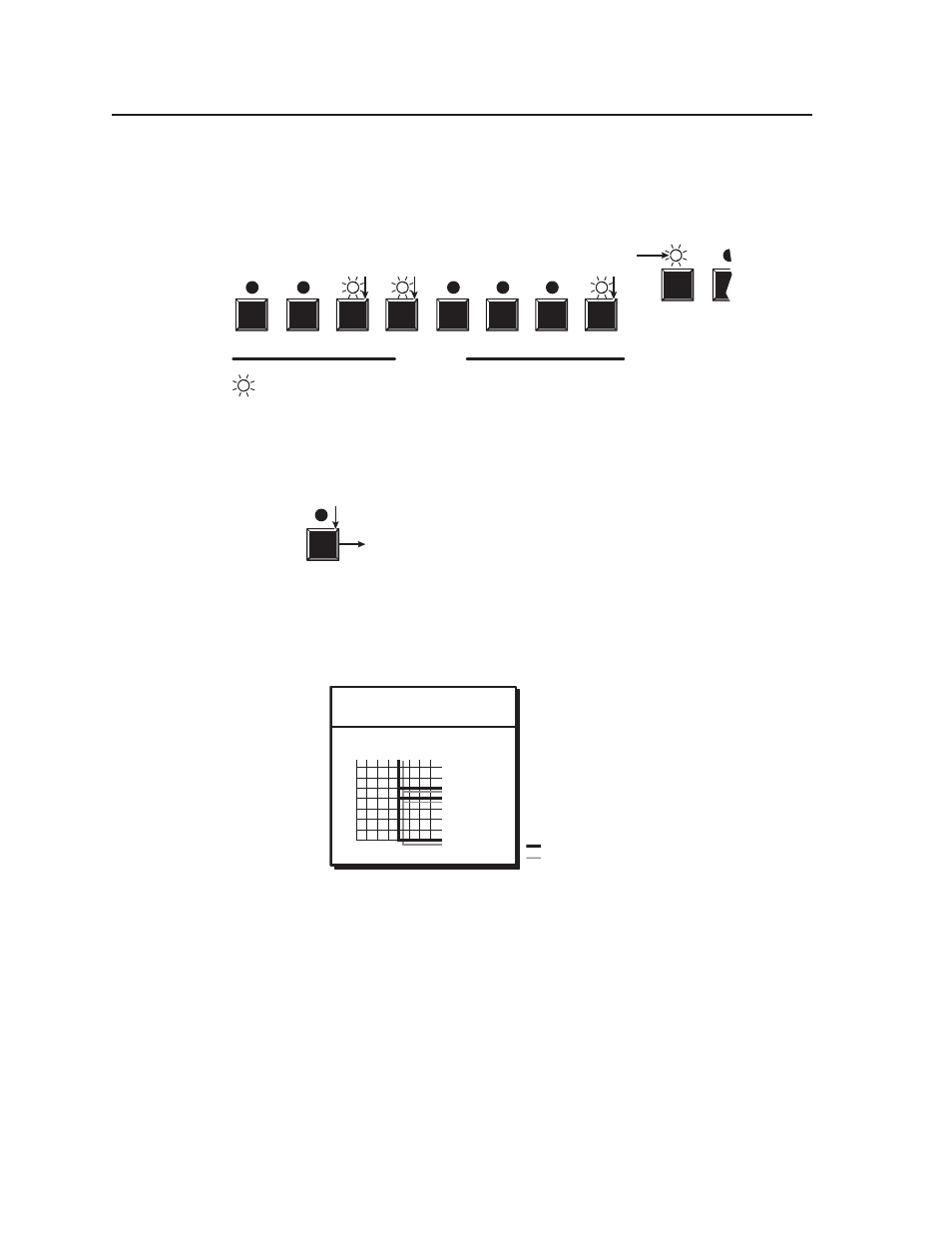

Figure 3-6 — Select the outputs
5 . Press and release the Enter button (figure 3-7).
ENTER
The Enter LED and all input LEDs and
output LEDs return to the unlit state.
Press the Enter button to confirm
the configuration change.
Figure 3-7 — Press the Enter button
The current configuration (figure 3-8) is now:
• Input 5 (video and audio) is tied to output 3, output 4, and output 8.
Input 5 (video/audio) tied
to outputs 3, 4, and 8
Input
Output
3
4
8
5
Video
Audio
Figure 3-8 — Example 1, final configuration
