Example 3: Removing a tie from a set of video and audio ties
In the following example, an existing audio tie is removed from the current
configuration. The steps show the front panel indications that result from your
action.
N This example assumes that you have performed example 1 and example 2.
1 . Press and release the Esc button (figure 3-15).
ENTER PRESET VIEW ESC
CONTROL
Press the Esc button to clear all selections.
The LED blinks once. = LED blinks once. 1
1

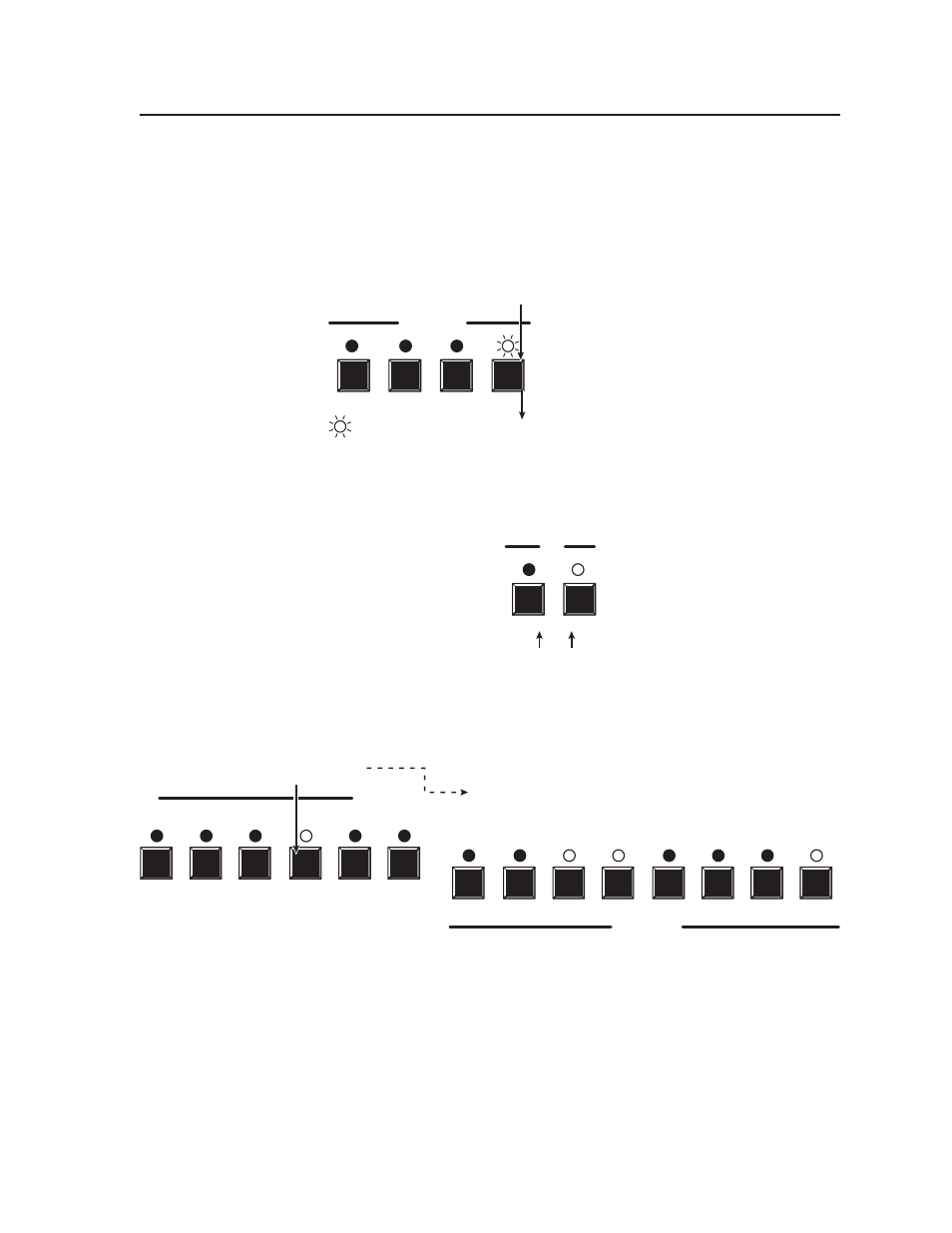

Figure 3-15 — Clear all selections
2 . To select audio only for the tie, if necessary, press and release the RGBHV
button and/or Audio button (figure 3-16).
RGBHV AUDIO
I/O
Press the RGBHV button to toggle on and off.
The LED is unlit when deselected.
Press the Audio button to toggle on and off.
The LED lights when selected.
Figure 3-16 — Select audio only
3 . Press and release the Input 5 button (figure 3-17).
2 3 4 5 6
INPUTS
7
1 2 3 4 5
OUTPUTS
6 7 8
Press and release the Input 5 button.
The LED lights.
The Output 3, Output 4, and Output 8 LEDs light to indicate
the
audio ties created in example 1.
The output 1 LED does not light to indicate the tie created
in example 2 because that tie is RGBHV only.
Figure 3-17 — Select an input
