Example 1: Creating a set of video and audio ties
In the following example, input 5 is tied to outputs 3, 4, and 8. The steps show the
front panel indications that result from your actions.
N This example assumes that there are no ties in the current configuration.
1 . Press and release the Esc button (figure 3-3).
ENTER PRESET VIEW ESC
CONTROL
Press the Esc button to clear all selections.
The LED blinks once. = LED blinks once. 1
1

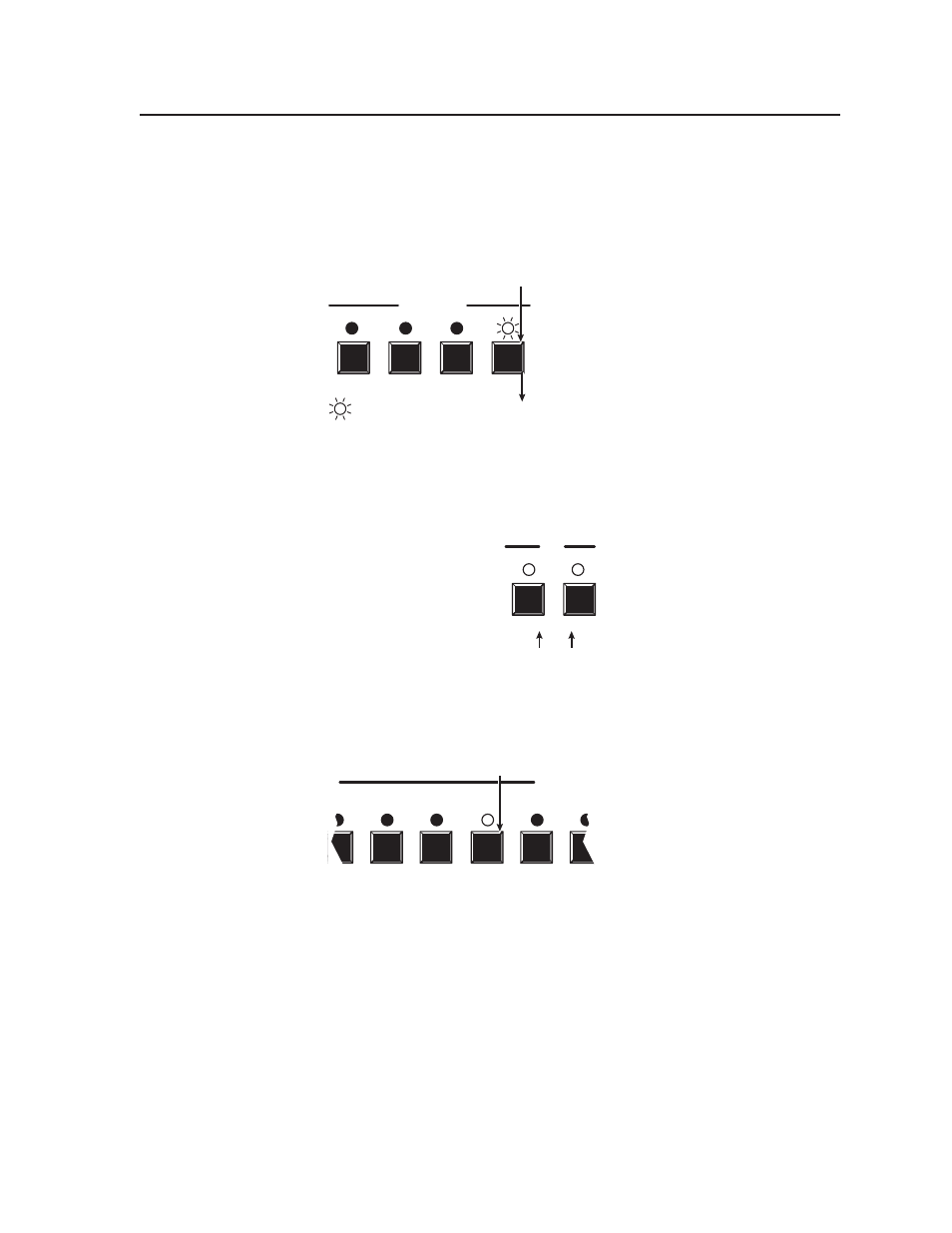

Figure 3-3 — Clear all selections
2 . To select video and audio for the tie, if necessary, press and release the
RGBHV button and the Audio button until both the RGBHV and Audio LEDs
light (figure 3-4).
RGBHV AUDIO
I/O
Press the RGBHV button to toggle on and off.
The LED lights when selected.
Press the Audio button to toggle on and off.
The LED lights when selected.
Figure 3-4 — Select RGBHV and audio
3 . Press and release the input 5 button (figure 3-5).
2 3 4 5 6
INPUTS
7
Press and release the Input 5 button.
The Input 5 LED lights.
Figure 3-5 — Select an input
