Operation, cont’d
MVX VGA A Matrix Switchers • Operation 3-20
PRELIMINAR
Y
N If both RGBHV and audio are selected, the muting action toggles both the video
and audio outputs. If either the video output or the audio output is already
muted, the unmuted output is muted and the muted output is unmuted.
N If both RGBHV and audio are selected and only video is muted, the output LED
flashes. If only audio is selected, the output LED is lit steadily (indicating no
audio mute).
5 . Press and hold the Output 3 button and the Output 4 button (figure 3-30)
for approximately 2 seconds until the LEDs light steadily. The output 3 and
output 4 video and audio signals are unmuted.
3 4 5
OUTPUTS
3 4 5
OUTPUTS
The LEDs stop blinking and light steadily to indicate
that the RGBHV and audio outputs are unmuted.
Release the buttons.
Press and hold the Output 3
and Output 4 buttons.
2 seconds
= Blinking LED

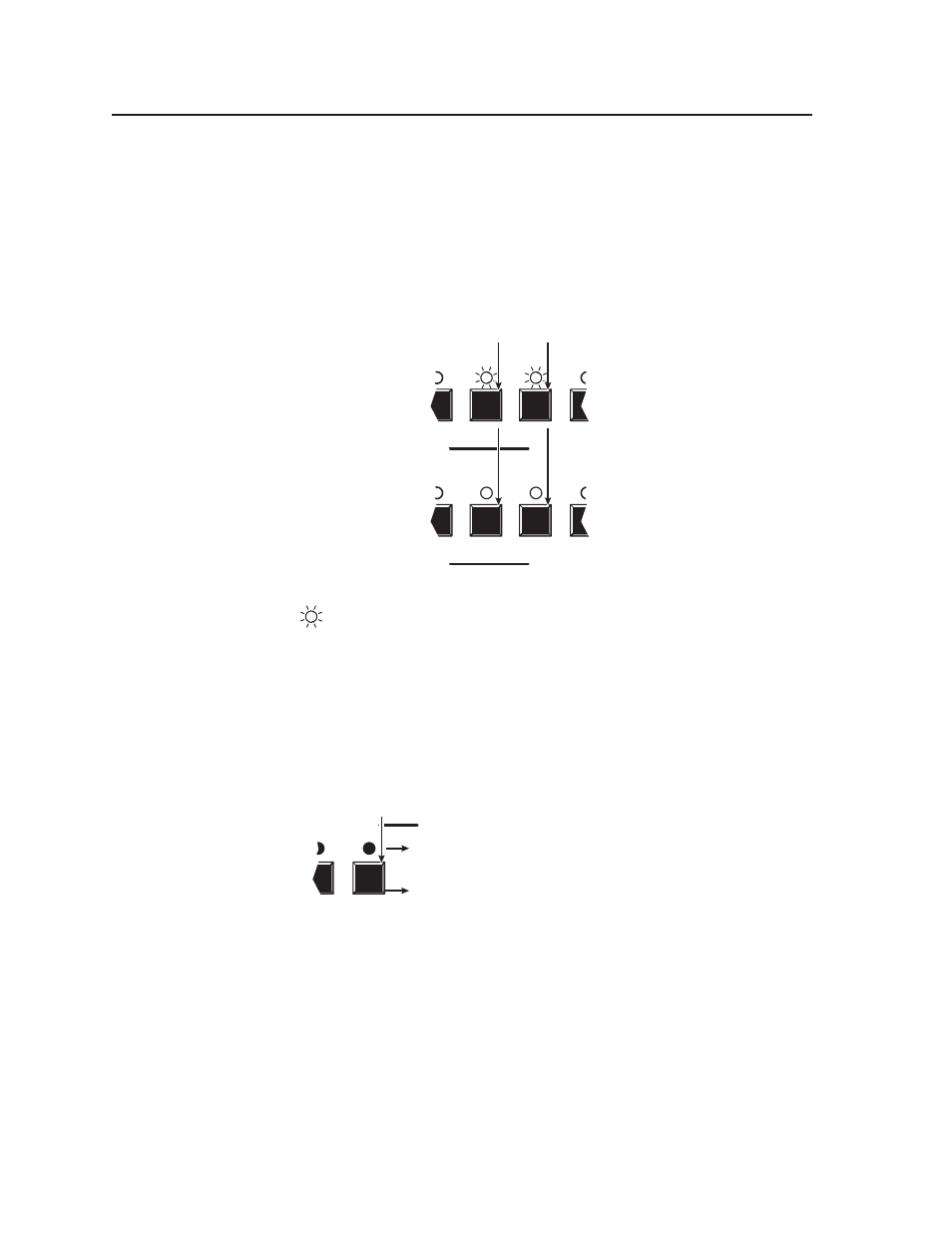

Figure 3-30 — Unmute the outputs
N If both RGBHV and audio are selected, the unmuting action toggles both the
video and the audio outputs. If either the video output or the audio output is
already unmuted, the muted output is unmuted and the unmuted output is
muted.
6 . Press and release the View button to exit View-only mode (figure 3-31).
SET VIEW
CONTROL
Press the View button
to exit View-Only mode.
The View LED returns
to the unlit state.
All input LEDs and output
LEDs return to the unlit state.
Figure 3-31 — Press the View button to exit View-only mode
