VN-Matrix 300 • System Configuration
30
Device Setup (
c
)
The
Device setup
area allows a VN-Matrix 300 device to be configured as either an
encoder or as a decoder.
NOTE: The VN-Matrix 300 is available as a decoder (VND 300) only. In this case it is not
possible to configure the unit as an encoder.
Create Source (Encoder)
Select this option to create a source (ENCODER).
z
Source will be shown adjacent to a change device type button.
z
A
videoport
and
ancport
icon will be created in the
Configuration
window.

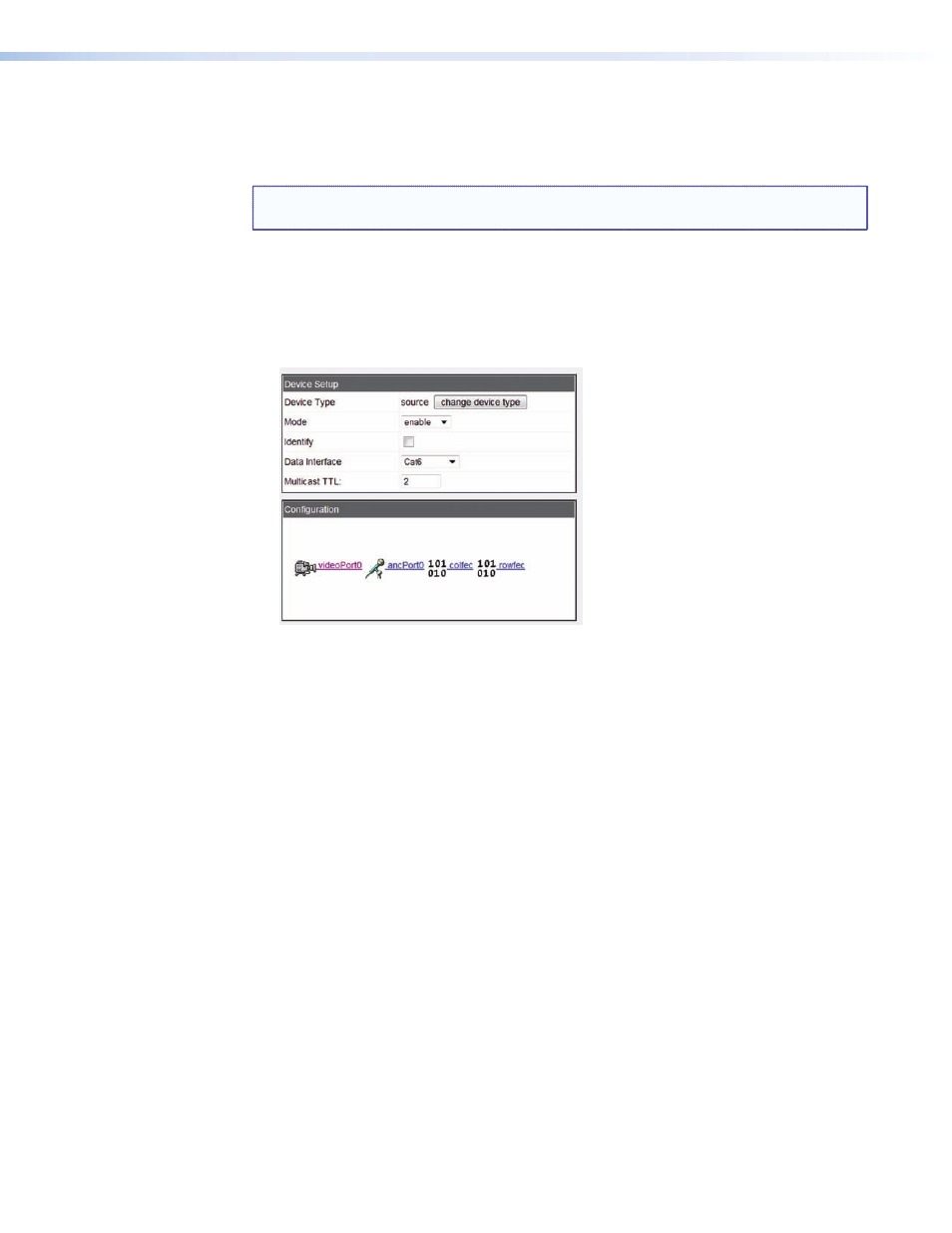

Figure 17.
Source (Encoder) Configuration and Setup
The
Device Setup
area provides access to the following controls and information.
z
Mode:
z
Enable — Normal operation; image transport is enabled.
z
Disable — Image transport is disabled.
z
Standby — Same as disable.
z
Identify — When checked, causes the name of the device to be overlaid on the content
that is presented on the SDI-OUT connector on the rear panel.
z
Data Interface — The selection defines which of the two network interfaces is to be
used for the data transport.
z
Multicast TTL — This value sets the Time To Live (TTL) for multicast packets.
Configuration (
d
)
The
Configuration
area provides access to the device configuration pages.
z
Click on an icon to access the configuration pages.
