VN-Matrix 300 • Introduction 8
Front Panel Features

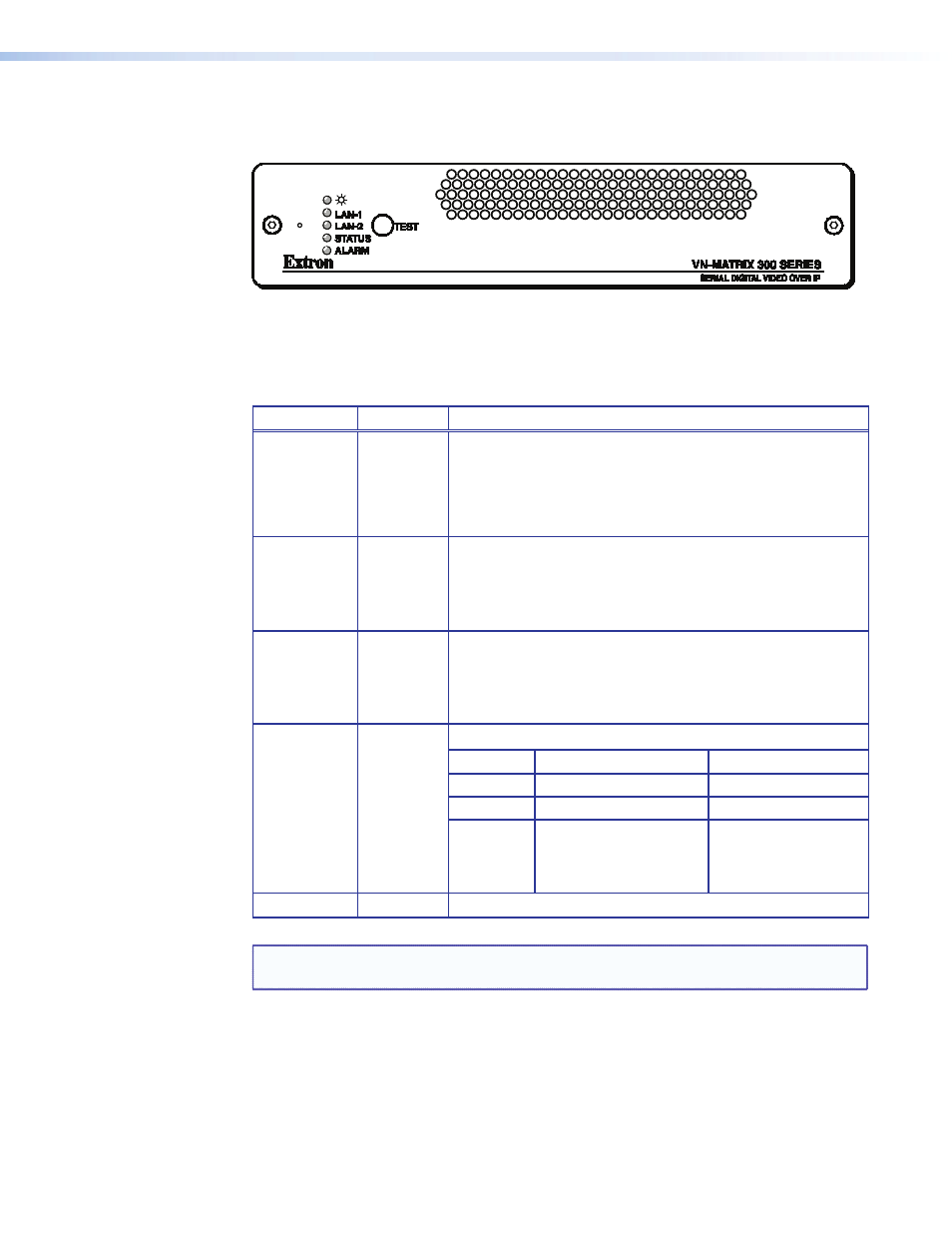

Figure 5. VN-Matrix 300 Front Panel
Indicators
The following indicators are visible on the front of the VN-Matrix 300:
Name Color Function
Power Green
z
Fully Lit – when the unit is receiving power from the 12V
supply input.
z
Flashing – an over temperature condition has occurred
or there was a power overload/underload condition. Cycle
the power off/on to reset.
LAN 1 (RJ45) Orange Indicates the status of network port 1:
z
Fully Lit or Flashing Intermittently – control or source
data is being transmitted or received by the port.
z
Unlit – no data or no network connection detected.
LAN 2 (SFP) Orange Indicates the status of network port 2:
z
Fully Lit or Flashing Intermittently – control or source
data is being transmitted or received by the port.
z
Unlit – no data or no network connection detected.
STATUS Green Indicates the source status of the VN-Matrix 300:
Condition Encoder (source) Decoder (display)
Unlit No source input detected No source is received
Flashing Source being streamed Source being received
Fully Lit Source present but not
being streamed (such as
unit currently disabled or
in standby mode) N/A
ALARM Red Indicates that a critical alarm has occurred.
NOTE: During the VN-Matrix 300 boot up cycle (typically 20-30 seconds) the Network
and Status indicators may light or flash intermittently while the unit initializes.
