VN-Matrix 300 • Installation and Basic Setup Procedures 22
Unit 2
Network Port 1 (RJ45) Network Port 2 (SFP)
0 Speed/Duplex:auto_10_100_1000 10 Speed/Duplex:Fiber_fixed_1000
1 Boot method: static [dhcp] 11 Boot method: static [dhcp]
2 Address: 172.28.0.2 12 Address: 192.168.0.2
3 Netmask: 255.255.0.0 13 Netmask: 255.255.255.0
4 Gateway: 14 Gateway:
5 Broadcast: 15 Broadcast:
6 Mtu: 1500 16 Mtu: 1500
7 Controller ip: 172.28.0.1
8 Controller port: 5432 18 Webserver port: 80
9 Exit

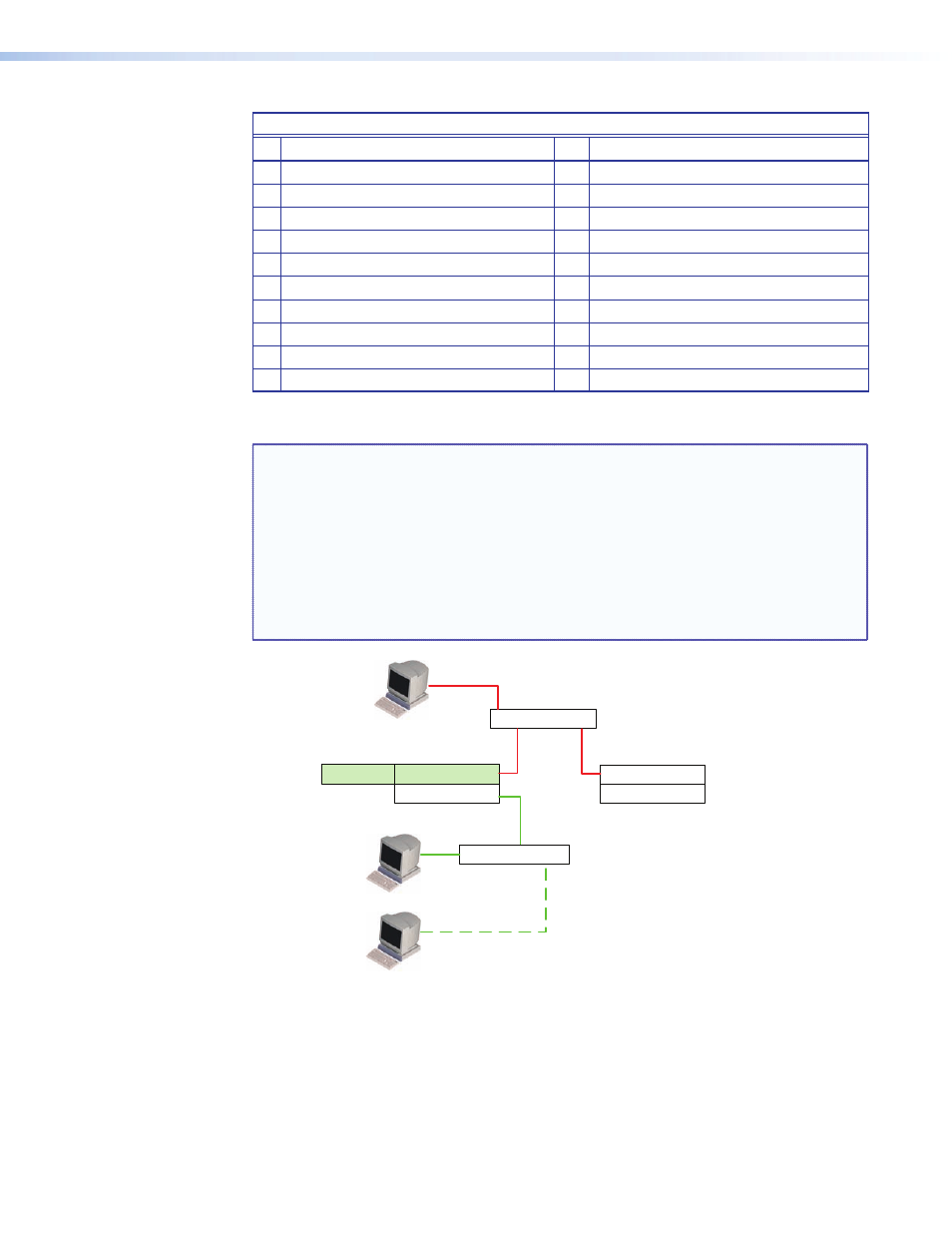

Switched Network Configuration, Example 2
NOTES: This example is the same as the first but the controller has now been assigned to
NIC 2 on unit 1.
• The browser interface is also available via NIC 1.
The controller interface is available on either NIC.
• Image data is configured to run over NIC 2 (the SFP connector).
System control data is now sent over the 192.168.0.x network.
• The controller IP address is now assigned in Option 17 under network port 2
in the configuration for both units.
Option 7 is no longer available under Network port 1.
NIC2:192.168.0.1
NIC1:172.28.0.1
NIC2:192.168.0.2
NIC1:172.28.0.2
Local NMS server
172.28.0.3
Browser (NIC2)
192.168.0.3
Unit 1 Unit 2
Controller
Switch
Switch
Browser (NIC1)
172.28.0.3
Local NMS server
172.28.0.3
Browser address
192.168.0.1
Browser address
172.28.0.1
