VN-Matrix 300 • Installation and Basic Setup Procedures 24

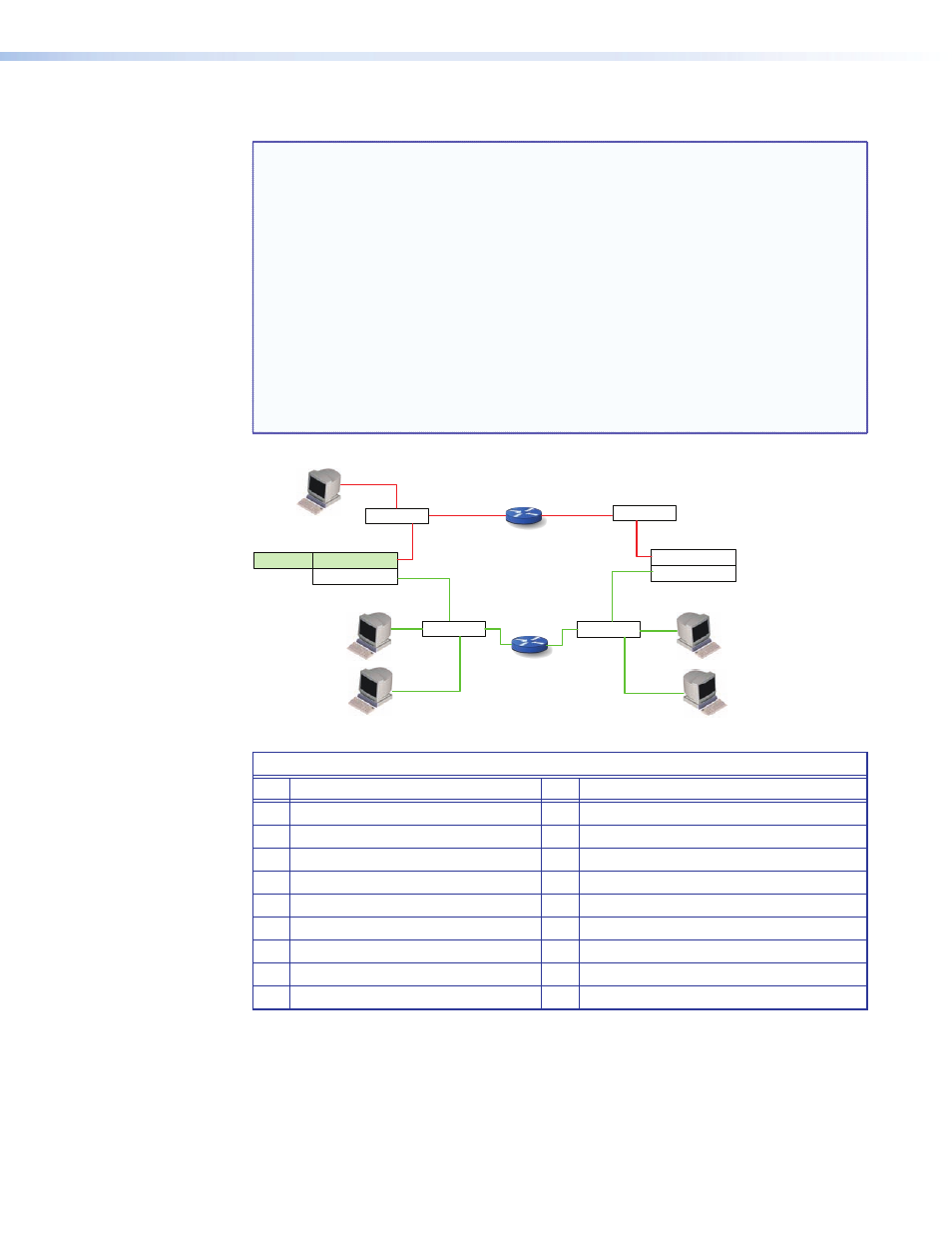

Routed Network Configuration Example
NOTES: This is an example of a routed network configuration.
• Unit 1 is configured as the controller, on IP address 192.168.0.1.
The two VN-Matrix 300 units are connected across a WAN via an external
router.
• A gateway IP address is now set on NIC port 2 (option 14).
• Only 1 gateway may be assigned.
Image data is transported over NIC 2 (the SFP connector).
• The port used for image data transfer is set in the WEB interface, described
later.
Browser control is available on either NIC
• Enter the IP address of the appropriate NIC in the browser address bar.
A network management system connected via NIC 1 (RJ45).
• This provides isolation between image and SNMP traffic.
NIC2:192.168.0.1
NIC1:172.28.0.1
NIC2:192.168.1.1
NIC1:172.29.1.1
Local NMS server
172.28.0.3
Browser address
192.168.0.1
Unit 1 Unit 2
Controller
Switch
Switch Switch
Switch
Browser (NIC1)
172.28.0.4
192.168.0.250 192.168.1.250
Browser (NIC1)
172.29.1.4
Local NMS server
172.29.1.3
Local SNMP
Browser (NIC2)
192.168.0.3
Browser address
172.28.0.1
Unit 1
Network Port 1 (RJ45) Network Port 2 (SFP)
1 Boot method: static [dhcp] 11 Boot method: static [dhcp]
2 Address: 172.28.0.1 12 Address: 192.168.1.1
3 Netmask: 255.255.0.0 13 Netmask: 255.255.255.0
14 Gateway: 192.168.0.250
5 Broadcast: 15 Broadcast:
6 Mtu: 1500 16 Mtu: 1500
17 Controller ip: 192.168.0.1
8 Controller port: 5432 18 Webserver port: 80
9 Exit
