FRONT VIEW
TLP 350CV
BOTTOM VIEW
TOP VIEW
RIGHT SIDE VIEW LEFT SIDE VIEW
NOTE: Architectural Adapter Plates (AAPs) shown in the diagrams above and in photographs are examples only.
AAPs are optional accessories for this product. AAPs and cables must be ordered separately.

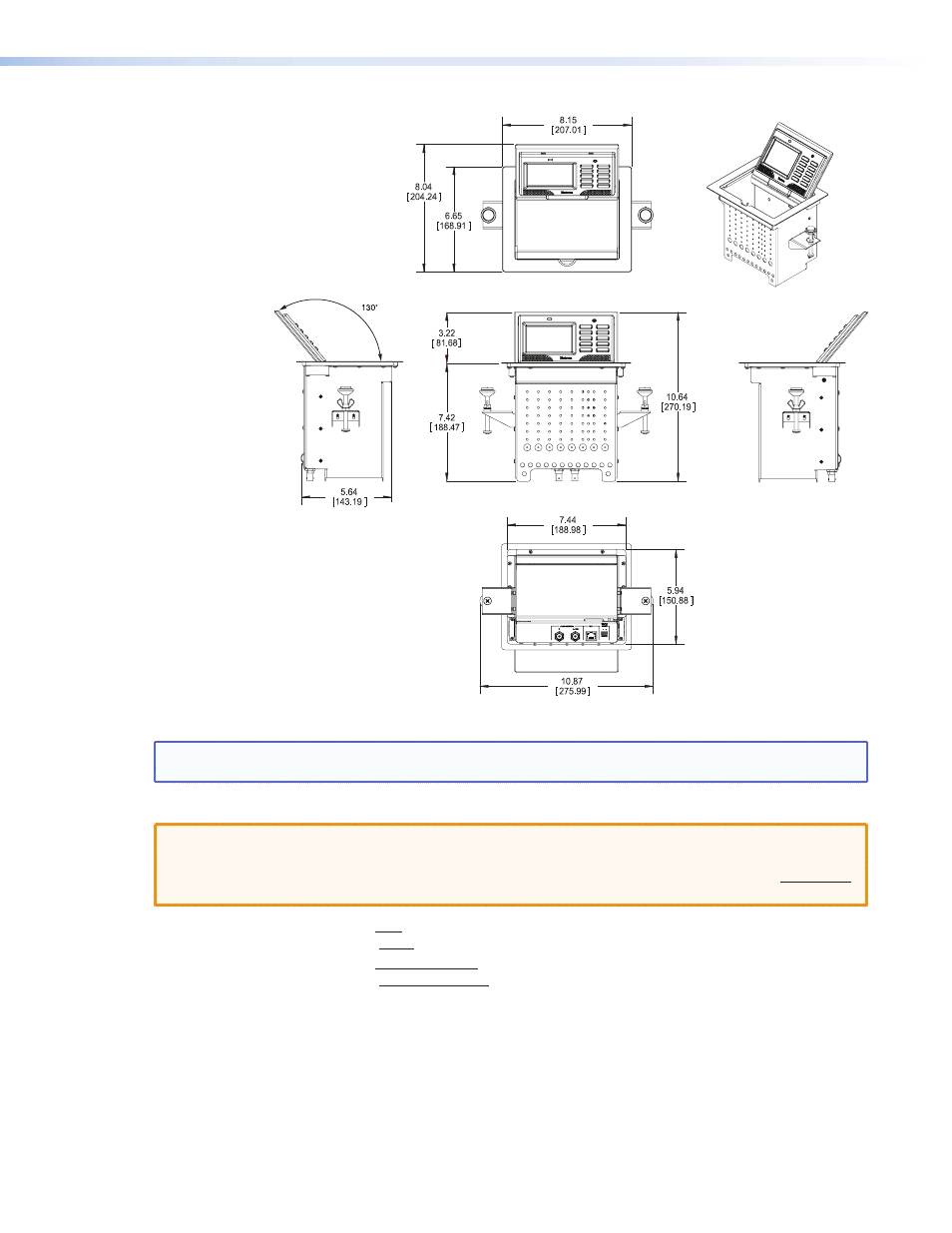

enclosure dimensions
CAUTION: Use the appropriate metal extron routing template or refer to the surface cutout
dimensions here before cutting a hole in the furniture or other surface. Pay special
attention to the direction the unit will face; the unit's connector access side is underlined.
extron is not responsible for miscut mounting holes.
Top plate (outer rim) ................ 8.15" w x 6.65" D
(20.70 cm w x 16.89 cm D)
Surface cutout (inside rim) ....... 7.50 +0.00/-0.02" w x 6.00 +0.00/-0.02" D
(19.05 +0.00/-0.05 cm w x 15.24 +0.00/-0.05 cm D)
box (under surface) .................. 7.42" H x 10.87" w (front/rear of unit) x 5.64" D with clamps
(18.85 cm H x 27.6 cm w x 14.32 cm D with clamps)
Product weight ............................... 5.8 lbs (2.6 kg)
Shipping weight ............................. 9 lbs (4 kg)
Vibration ........................................ ISTA 1A in carton (International Safe Transit Association)
