Install the Power Module and Shelf Assemblies
NOTE: The included power module takes up two (US) or three (Int’l) AAP spaces
and must be installed on the left side of the TLP 350CV enclosure.
Install the power module and AAP assembly into position at the desired location and
elevation. Secure with the included #4-40 Phillips head screws.
Philips head screws
secure AAP shelf
assembly and power
module.
Tighten the
AAP Nuts.
Large holes
provide tool
access to fasten
rear brackets.
Push power module
and AAP assembly
through bottom
of enclosure.
Install the power
module on the left side.
Rear Shelf Bracket
3
2
4
1

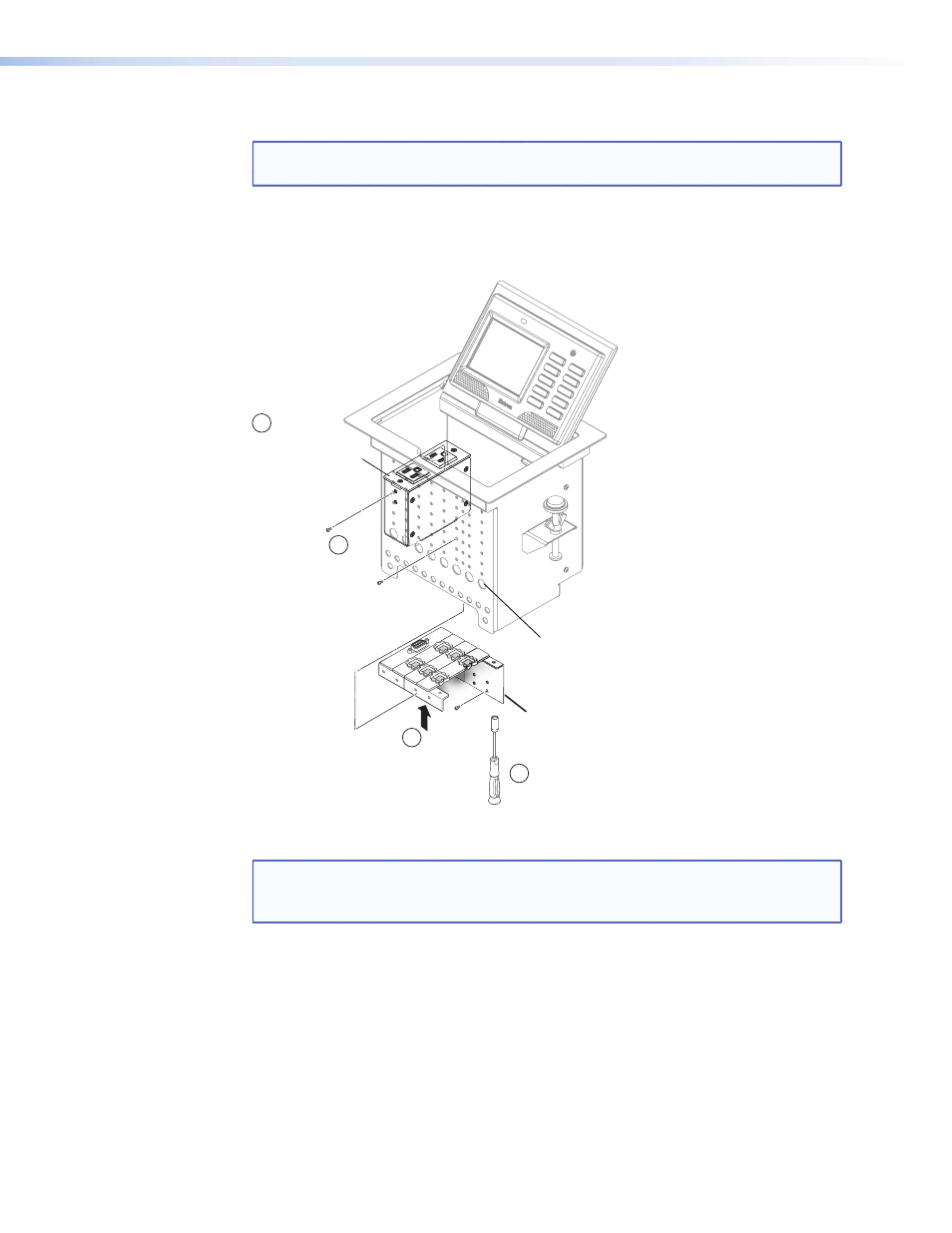

Figure 3.
Power Module and AAP Assembly Installation
TIP: If the AAP shelf assembly does not easily slide into the enclosure, loosen the
AAP mounting nuts. Retighten the AAP mounting nuts once the AAP shelf
assembly is fastened in position.
TLP 350CV • Mounting the TLP 350CV
8
