Using gui configurator, Design the layout of the text and graphics. (see – Extron Electronics TLP 350CV Installation User Manual
Page 28
Using GUI Configurator
This section provides an overview of the GUI Configurator program. For complete
information about the program, consult the GUI Configurator Help File (select Contents in
the Help Menu or press the F1 key while within the program).
NOTE: To configure the TLP 350CV, use GUI Configurator version 1.1 or later.
To use the GUI Configurator program, follow these instructions:
1.
Click on the desktop icon. A splash screen appears momentarily and then the program
opens at the main screen behind the “GUI Configurator Start Options” dialog box.

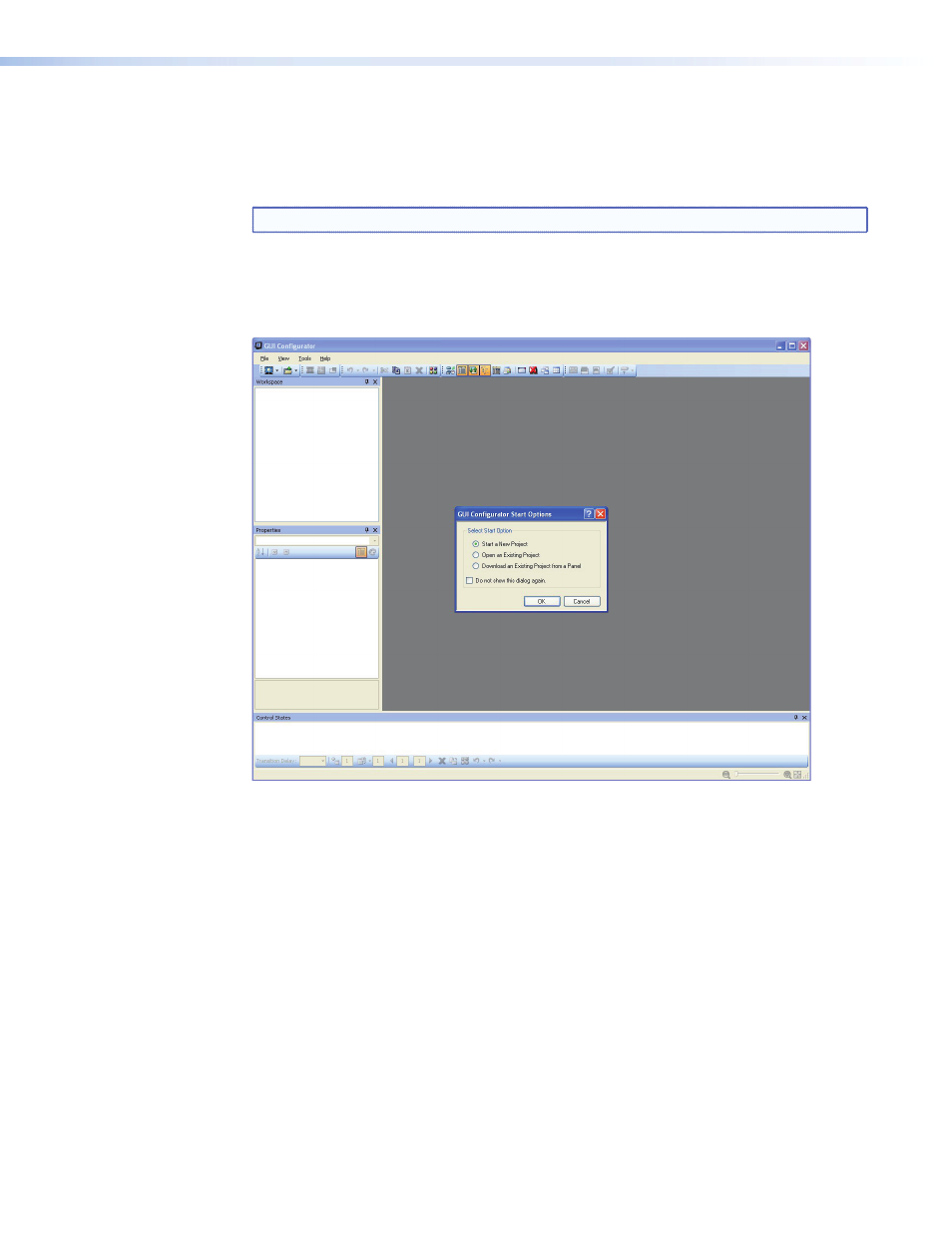

Figure 11.
Opening GUI Configurator
TLP 350CV • Configuration Software
22
