Gui configurator and global configurator, Installation – Extron Electronics TLP 350CV Installation User Manual
Page 26

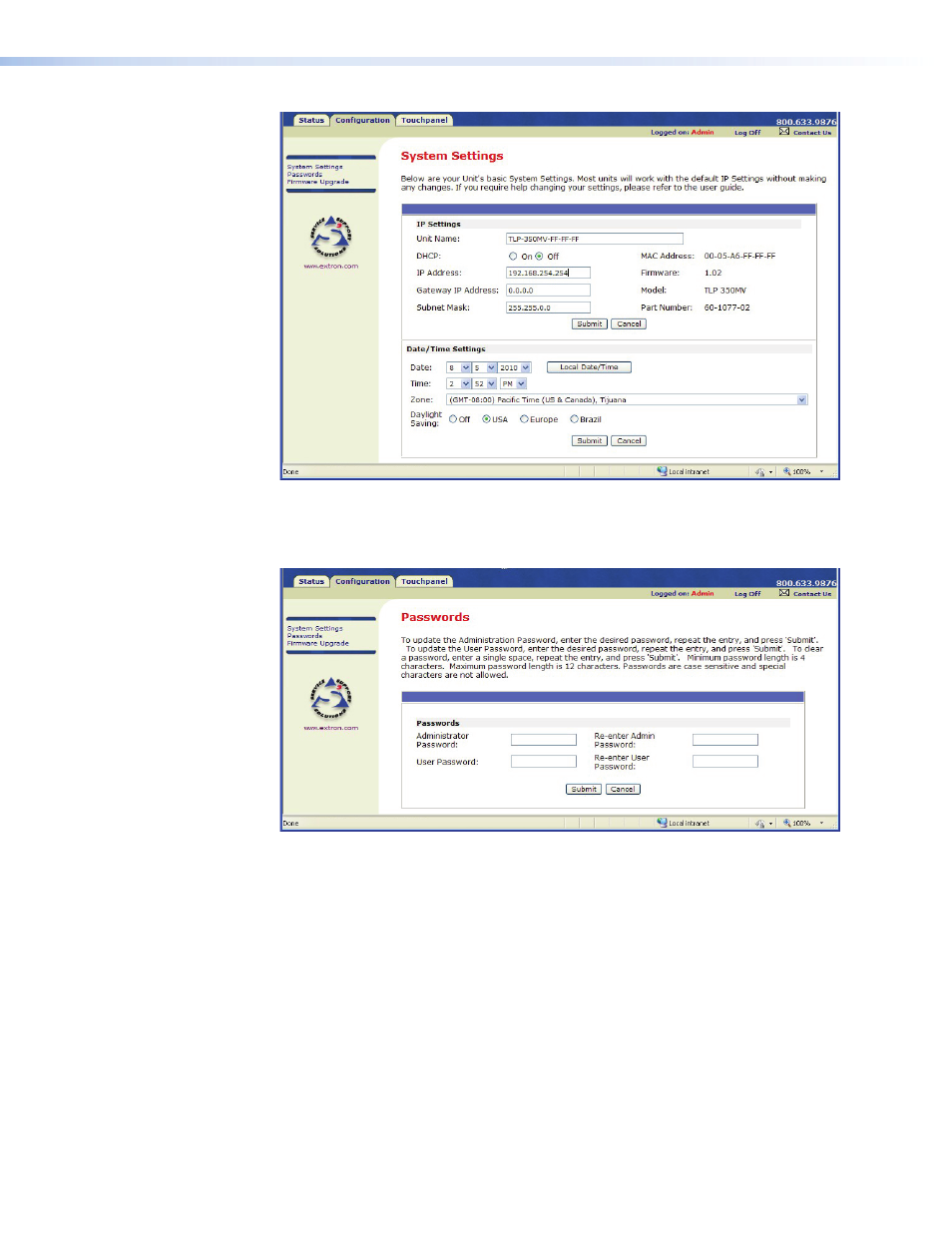

Figure 8.
System Settings
3.
Selecting Passwords allows the user to set passwords for an Administrator and a User.
To set a password, follow the instructions at the top of the page.
Figure 9.
Passwords
4.
To upgrade the unit’s firmware, select Firmware Upgrade. More detailed instructions
are found in the “
Updating Firmware from a Browser
” section on page 17.
5.
Click on the Touchpanel tab, which allows the user to alter the Touchpanel and volume
settings. These correspond to the
Main settings
(see page 8) and Volume settings (see
page 9) in the on-screen menus.
TLP 350CV • Configuration Software
20
