Using global configurator, Assign functions to the text and graphics. (see – Extron Electronics TLP 350CV Installation User Manual
Page 33
Using Global Configurator
NOTE: To configure the TLP 350CV, use Global Configurator version 3.0.4 or later.
This section provides an overview of the Global Configurator program. For complete
information about the program, consult the Global Configurator help file (click on Contents
in the Help menu or press the F1 key while within the program).
This section describes how to set up Global Configurator project with an IPL 250. Setting
up a project with another IP Link product will be similar but you should consult the Global
configurator help file for exact information about the product you are using.
1.
Double click on the GC3 desktop icon. The “Global Configurator 3 Start Options” box
opens.

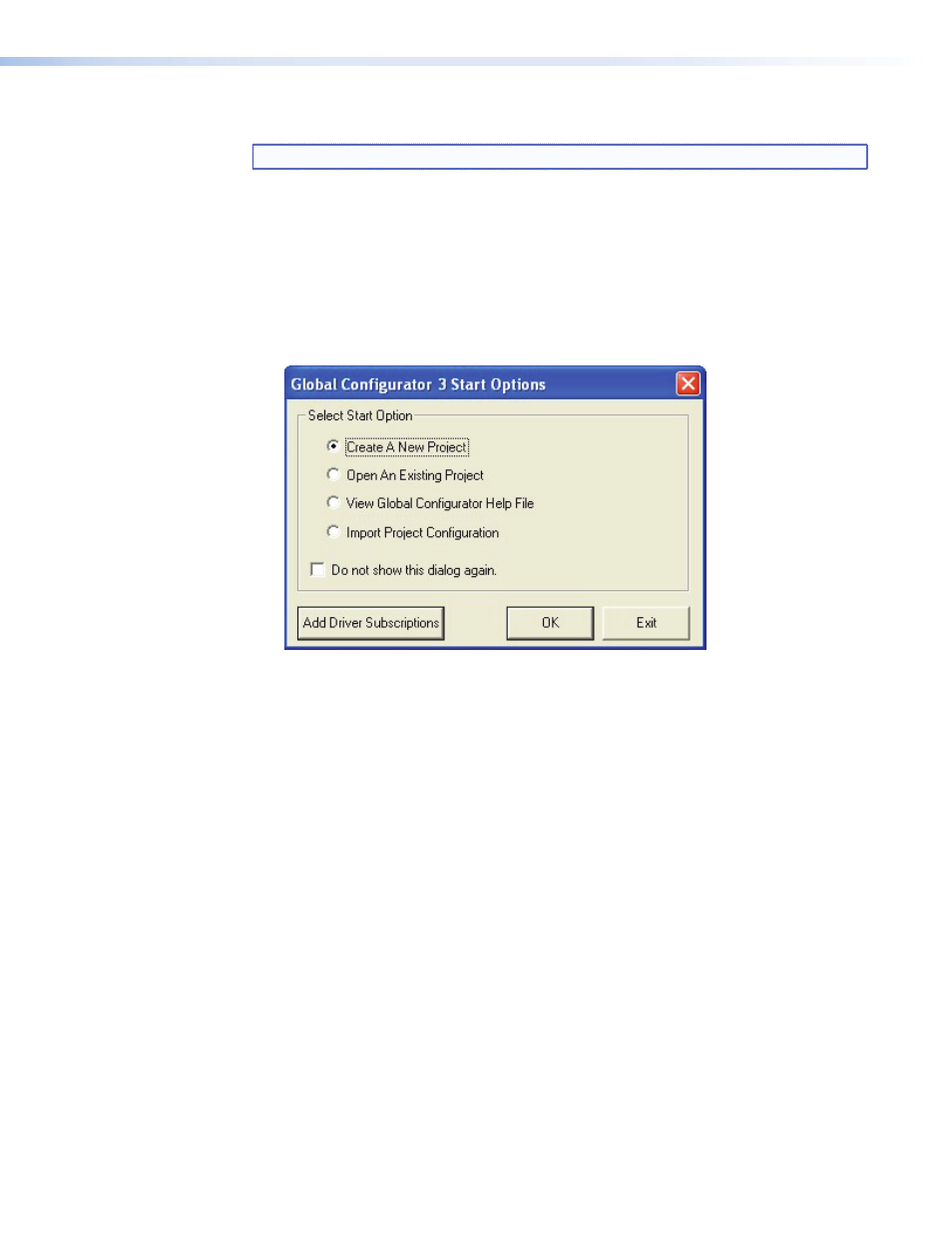

Figure 19.
Global Configurator 3 Start Options
2.
Select “Create A New Project“ and click OK. The dialog box closes, leaving the Project
Settings screen.
TLP 350CV • Configuration Software
27
