Extron Electronics TLP 350CV Installation User Manual
Page 36
5.
Click OK and the Add Device screen closes. The start-up screen, which was behind it, is

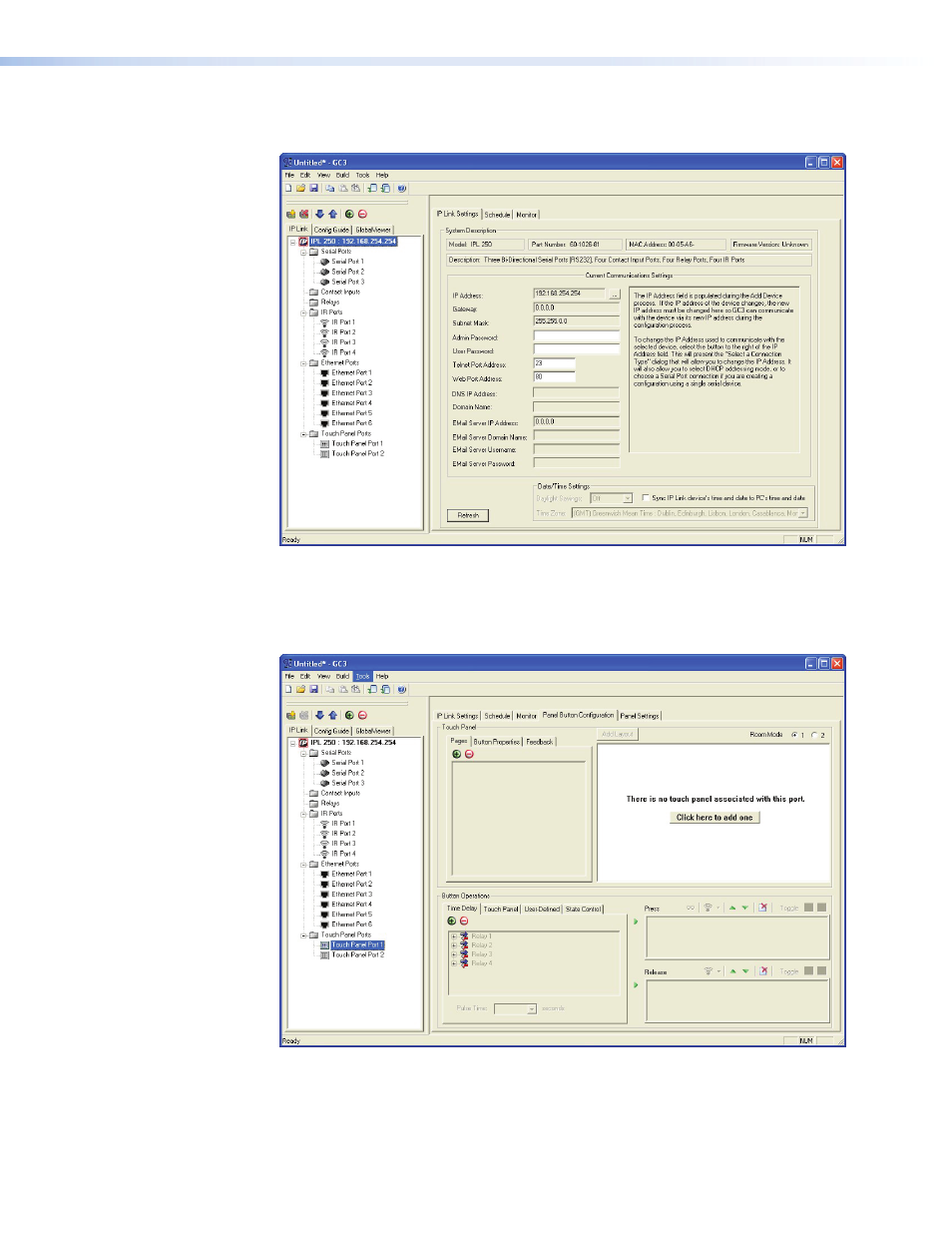

now visible, showing the IPL 250 and the available ports:
Figure 22.
Configuring an IP Link Device
6.
Select Touchpanel Port 1. The screen shows the available options for the TouchLink
panel. To add the GUI Configurator project that was uploaded to the TouchLink panel,
click “Click here to add one.”
Figure 23.
Adding a TouchLink panel
TLP 350CV • Configuration Software
30
