Mounting the
Enclosure
This section includes the following topics:
z Installing the Power Module, Cables and AAPs
z Mounting the Enclosure
Installing the Power Module, Cables and AAPs
each TLP 350CV includes pass-through AAPs and a power module. A wide range of passive
AAPs are also available allowing direct connection of cables from the top and underneath
the AAPs. See
www.extron.com for passive AAP options.
Shelf brackets are available in two-space and three-space configurations. Depending upon
the configuration, the enclosure can support up to nine AAPs. The power module takes
two (US) or three (Int’l) AAP spaces leaving seven (US) or six (Int’l) spaces for passive or
pass-through AAPs.
TIP: The recommended way to install the cables and AAPs is to populate the shelf
brackets with pass-through and passive AAP plates outside the enclosure as
shown below, then install the populated AAP shelf assembly into the enclosure.
Assemble AAP Brackets and AAPs
Pass-through AAP's provide direct cable connection and must have the cable installed as
they are being mounted on the shelf brackets.
each AAP shelf assembly consists of a set of shelf brackets and a number of cable
pass-through and passive AAPs. Decide the location of each AAP prior to assembling the
AAP shelf.

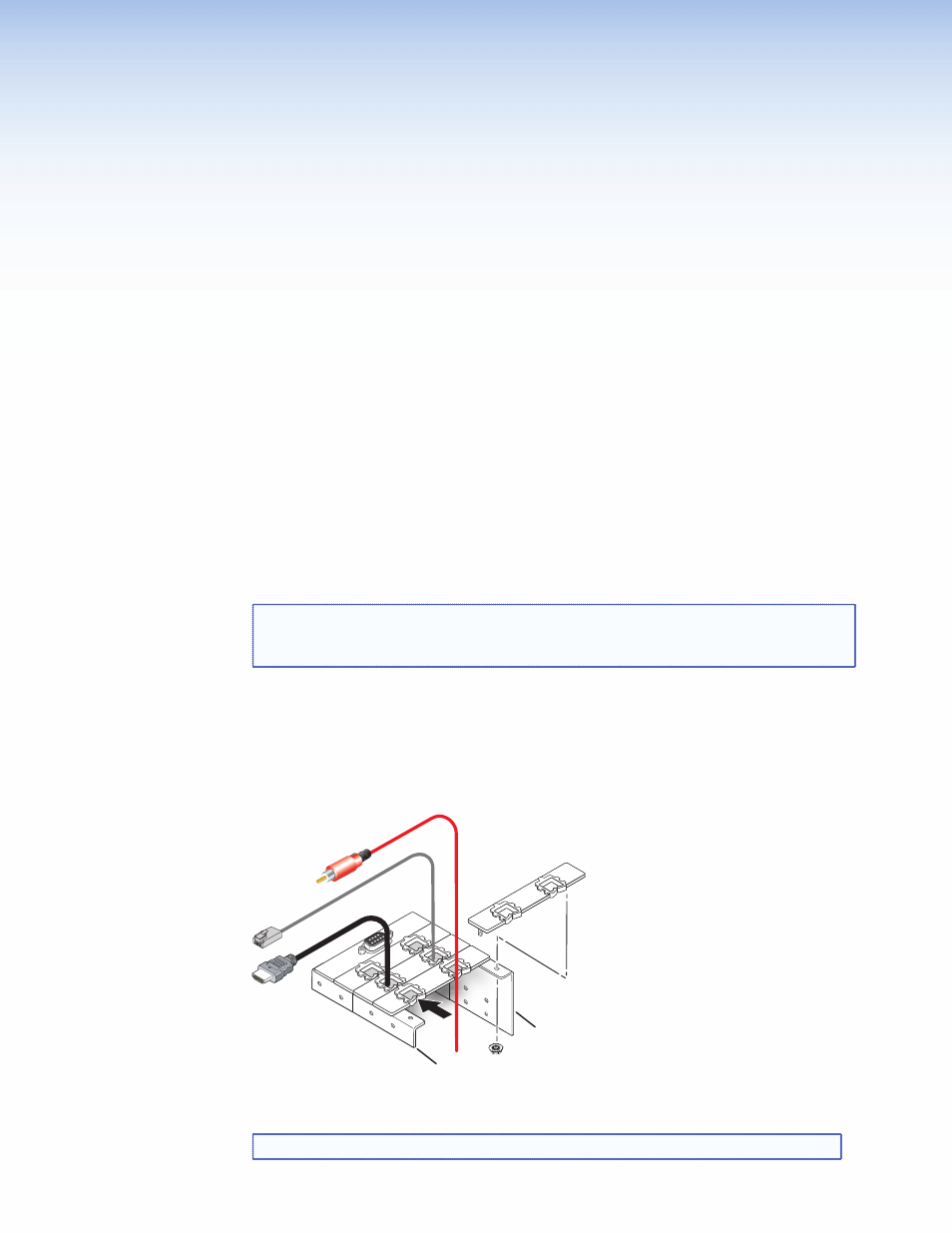

Rear Shelf Bracket
Front Shelf Brackets
Figure 2. Pass-through and Passive AAP Mounting
TIP: It may be easier to cable the rear of passive AAPs prior to installing them.
