Connecting the
Touch Panel
This section includes the following topics:
z Connecting the TLP 350CV
z
Mounting the Power Supply (US models only)
Connecting the TLP 350CV
The rear panel of the TLP 350CV located on the bottom of the enclosure, provides all
required connections. The panel requires an IP Link controller for operation, but may be
configured without one connected.
Ground
+12 VDC
Orange Captive
Screw Connector
Tie Wrap
POWER
12V
1.0A MAX
LAN
VID / Y C
PREVIEW INPUT
Straight-through Cable
(for connection to a switch, hub, or router)
End 1 End 2
Pin Wire Color Pin Wire Color
1 white-orange 1 white-orange
2 orange 2 orange
3 white-green 3 white-green
4 blue 4 blue
5 white-blue 5 white-blue
6 green 6 green
7 white-brown 7 white-brown
8 brown 8 brown
Crossover Cable
(for direct connection to a PC)
End 1 End 2
Pin Wire Color Pin Wire Color
1 white-orange 1 white-green
2 orange 2 green
3 white-green 3 white-orange
4 blue 4 blue
5 white-blue 5 white-blue
6 green 6 orange
7 white-brown 7 white-brown
8 brown 8 brown
Ethernet
Ethernet
RS-232
Projector
IPL 250
IP Link ®
Ethernet
Control Processor
Straight-through Cable Crossover Cable
Source Device
INPUT
LAN POWER
12V
500mA
MAX
1 2 3 4 COM 3 IR 3
S G S G
TX RX 4 RELAY 3 4
COM1 TX RX RTS CTS COM 2 IR 1
S G S G
TX RX 2 RELAY 1 2
Link
LED Activity
LED
Composite
or S-Video
- OR -
TCP/IP
Network
TM FULL HIGH DEFINITION 1080P VIDEO OUTPUT
BLU-RAY DISC PLAYER
Extron
12V Power
Supply
UTP or STP CAT5 or better cable.
Terminate both ends identically, in
accordance with either the TIA/EIA T 568A
or the TIA/EIA T 568B wiring standard.
Connect a video source to
preview program material prior
to switching it to the display.
Crossover cable for
offline configuration
using GUI Configurator. Straight-through cable for Global
Configurator and connection to
controllers via LAN.

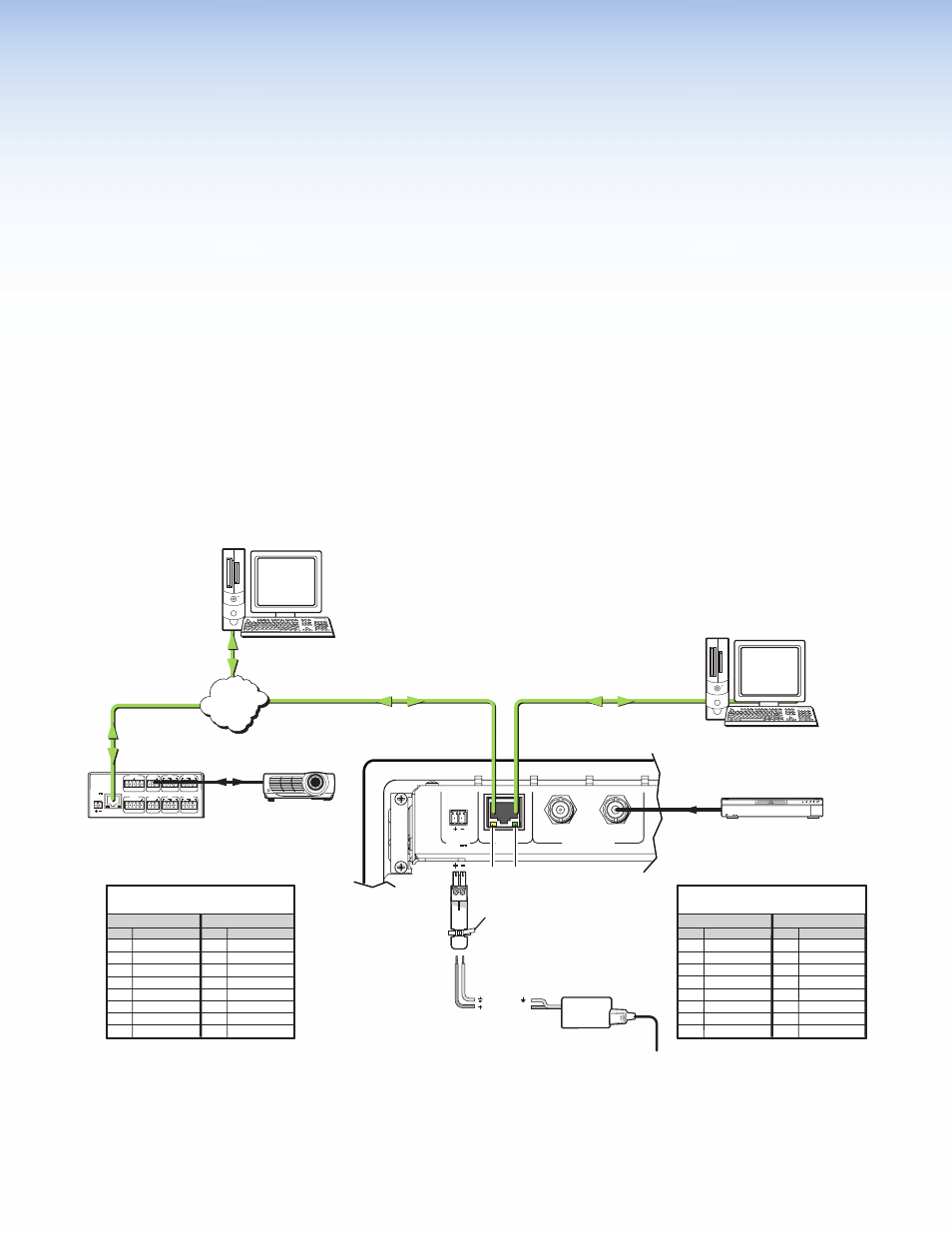

Figure 4. TLP 350CV Rear Panel
TLP 350CV • Connect the TLP 350CV 10
