Initial
Configuration
This section provides information on the front panel controls and indicators, the on-screen
menus used to configure the TLP 350CV, and calibration of the touchscreen.
z
Front Panel Controls and Indicators
z
Configuring the TLP 350CV (Initial Setup)
z
z
Front Panel Controls and Indicators
The front panel provides control and operation via the touch screen, the side buttons, and
speaker.
a
c
b
d
g
f
h
e

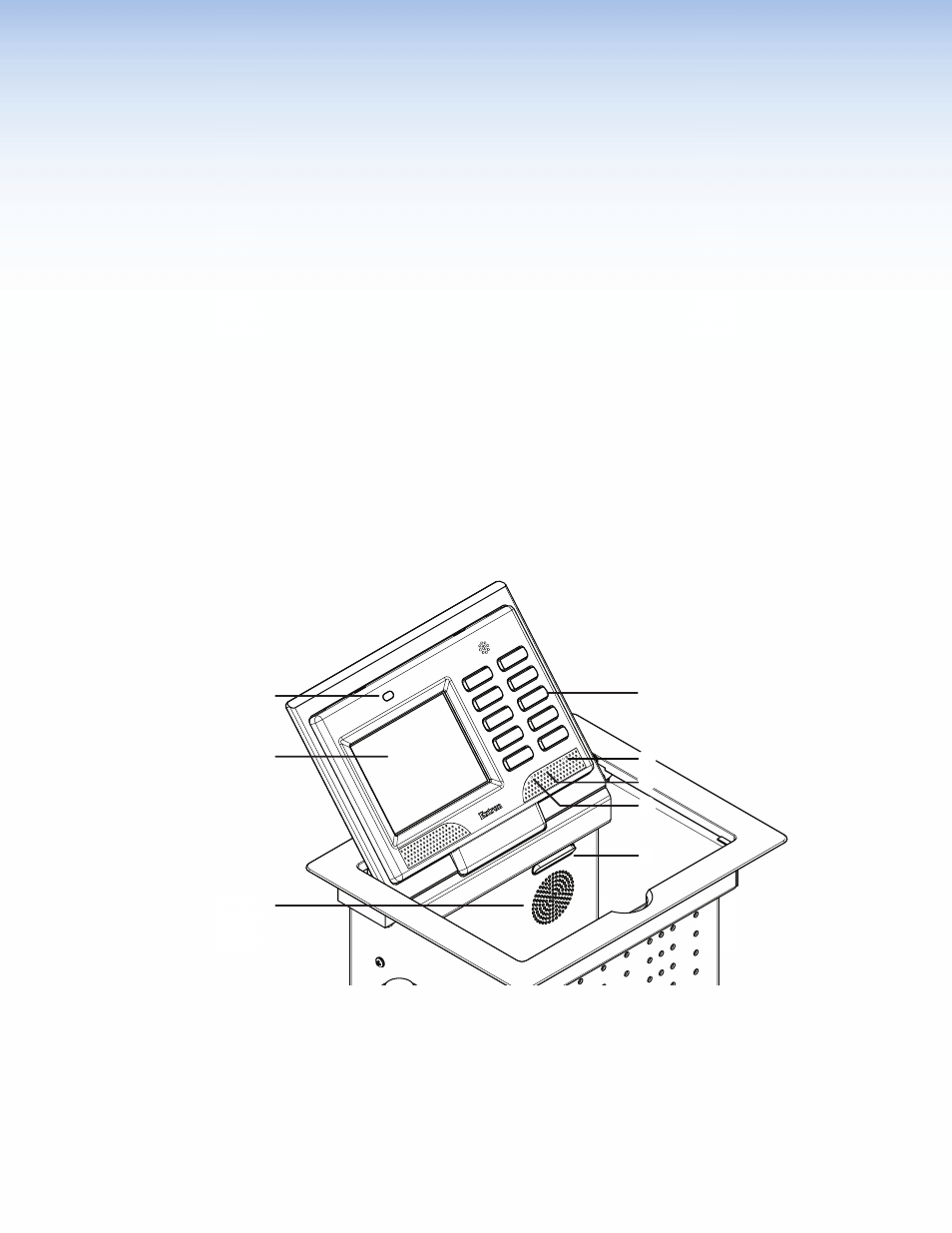

Figure 5.
TLP 350CV Front Panel
a
Light Sensor — Provides auto-dimming of the display to maximize viewability in
differing lighting conditions.
b
LCD screen — The backlit LCD screen has a resolution of 320 x 240, with 18 bits/pixel
(6 bits/color) plus an 8 bit alpha channel providing 26-bit color depth. The touch overlay
is broken into a grid with each square corresponding to 64 (8x8) pixels on the LCD
screen.
TLP 350CV • Initial Configuration
12
