Global configurator – Extron Electronics TLP 350CV Installation User Manual
Page 29

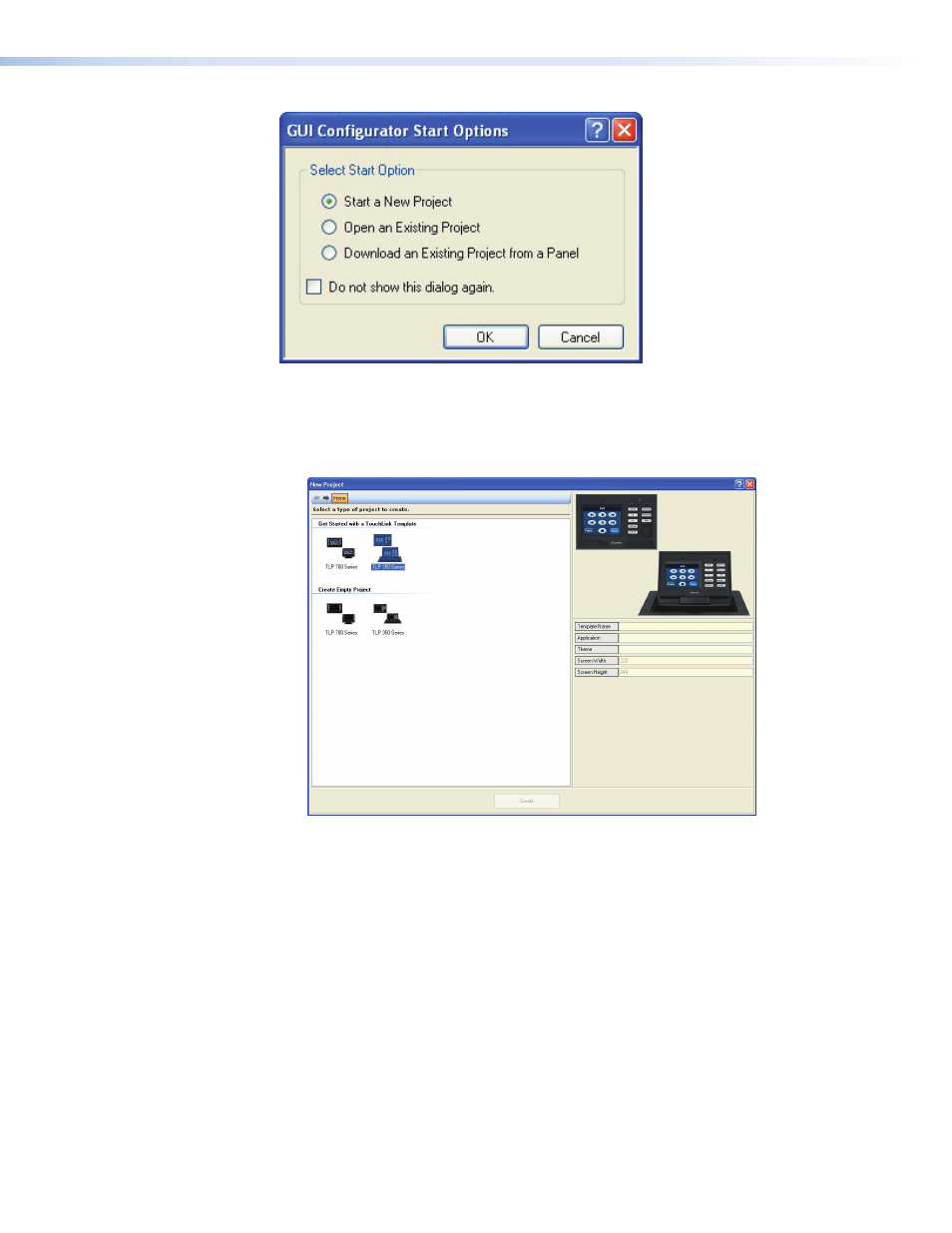

Figure 12.
GUI Configurator Start Options Dialog Box
2.
you can choose to:
z
Start a New Project — Clicking OK opens a dialog box that offers a choice of
project options.
Figure 13.
GUI Configurator New Project Dialog Box
A series of icons offer the choice of creating a project with or without a template
and allows you to select the size and type of Touchlink panel. If you are creating
a project from an existing template, you can use the factory-loaded templates or
select a previously created template.
TLP 350CV • Configuration Software
23
