Step twelve: configure associated control modules – Extron Electronics MLC 104 Plus Series Setup Guide User Manual
Page 47
MLC 104 Plus Series • Software Setup
3-25

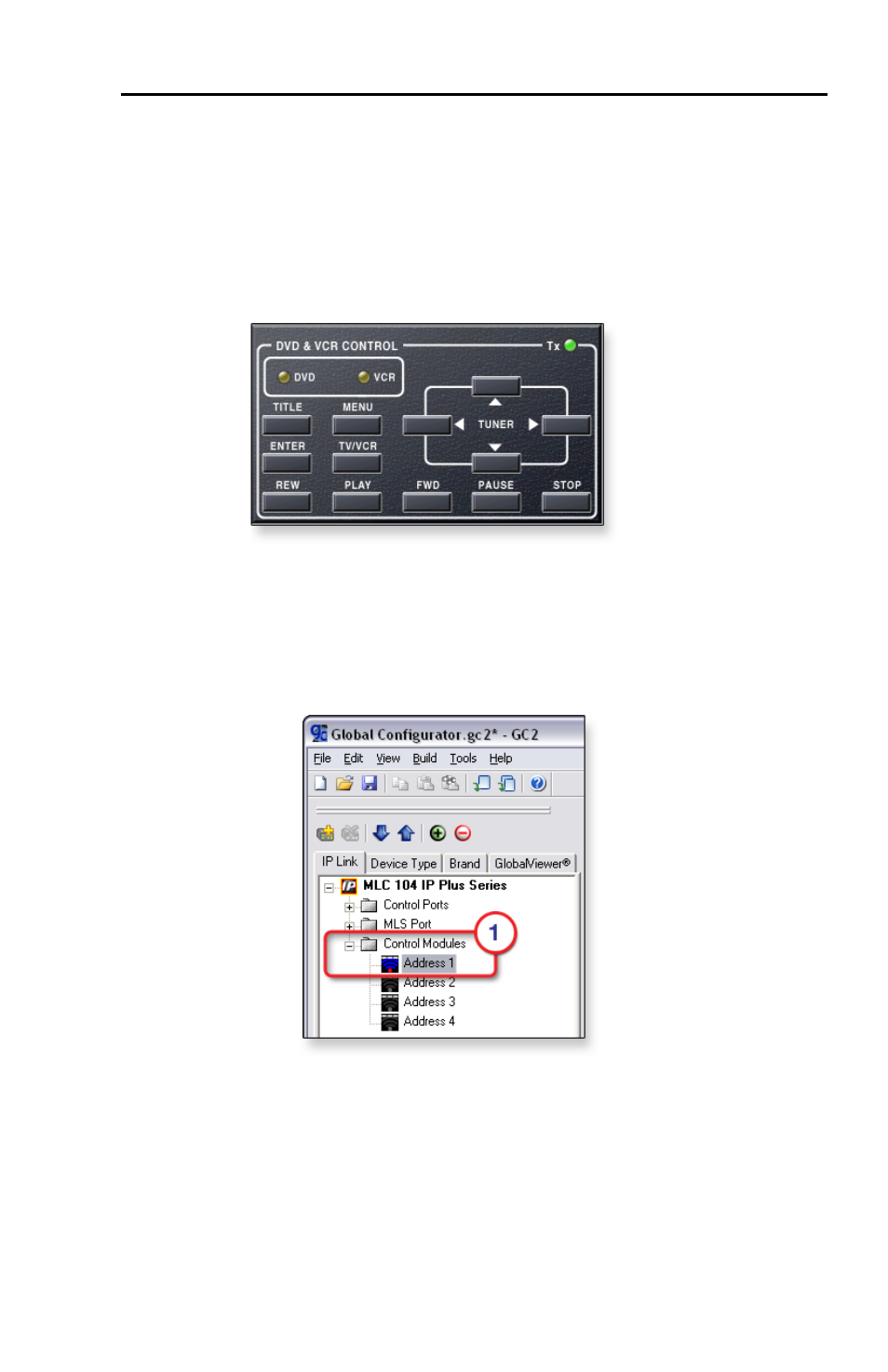

Step twelve: configure associated control
modules
A control module is a faceplate with buttons that can be
associated with the MLC.
The buttons on a control module can be configured to perform
specific device operations, such as power on a device or raise/
lower audio volume.
The Control Module Summary tab is used to configure the
button operations of a control module.
To configure a control module:
1
.
Select a control module address in the IP Link Tree
window.
