Page 36
MLC 104 Plus Series • Software Setup
Software Setup, cont’d
3-14

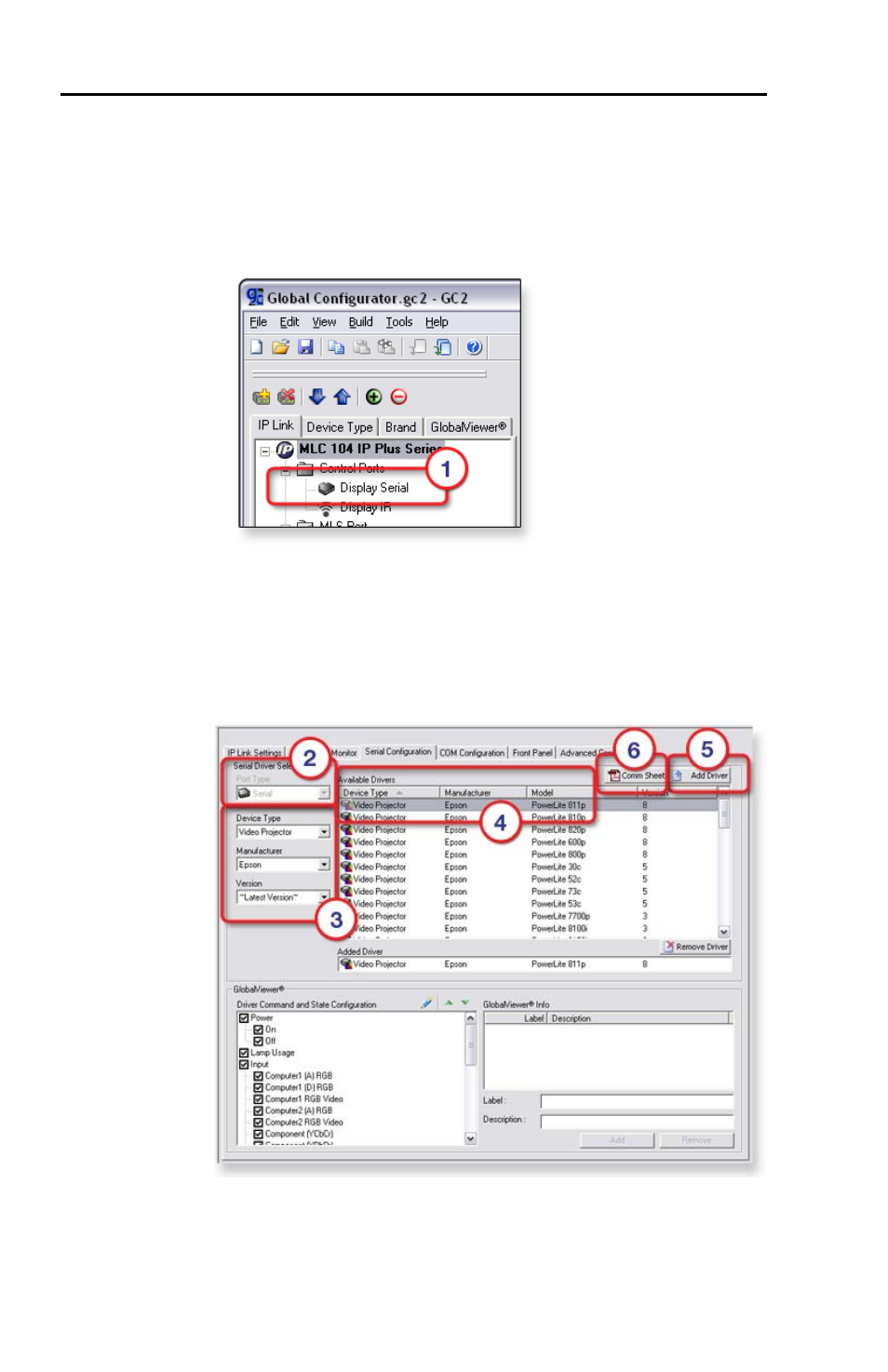

Step nine: assign serial device drivers
The Serial Configuration tab of Global Configurator allows you
to assign a device driver to each serial port of the device.
To assign a device driver:
1
.
Select a serial port in the IP Link Tree window.
The Serial Configuration tab opens.
2
.
Select Serial in the Port Type field.
3
.
Select a device type, manufacturer, and version.
4
.
Select an available driver.
5
.
Click Add Driver.
6
.
If desired, click Comm Sheet to open an file with
information about the selected driver.
