MLC 104 Plus Series • Hardware Setup
Hardware Setup, cont’d
2-6

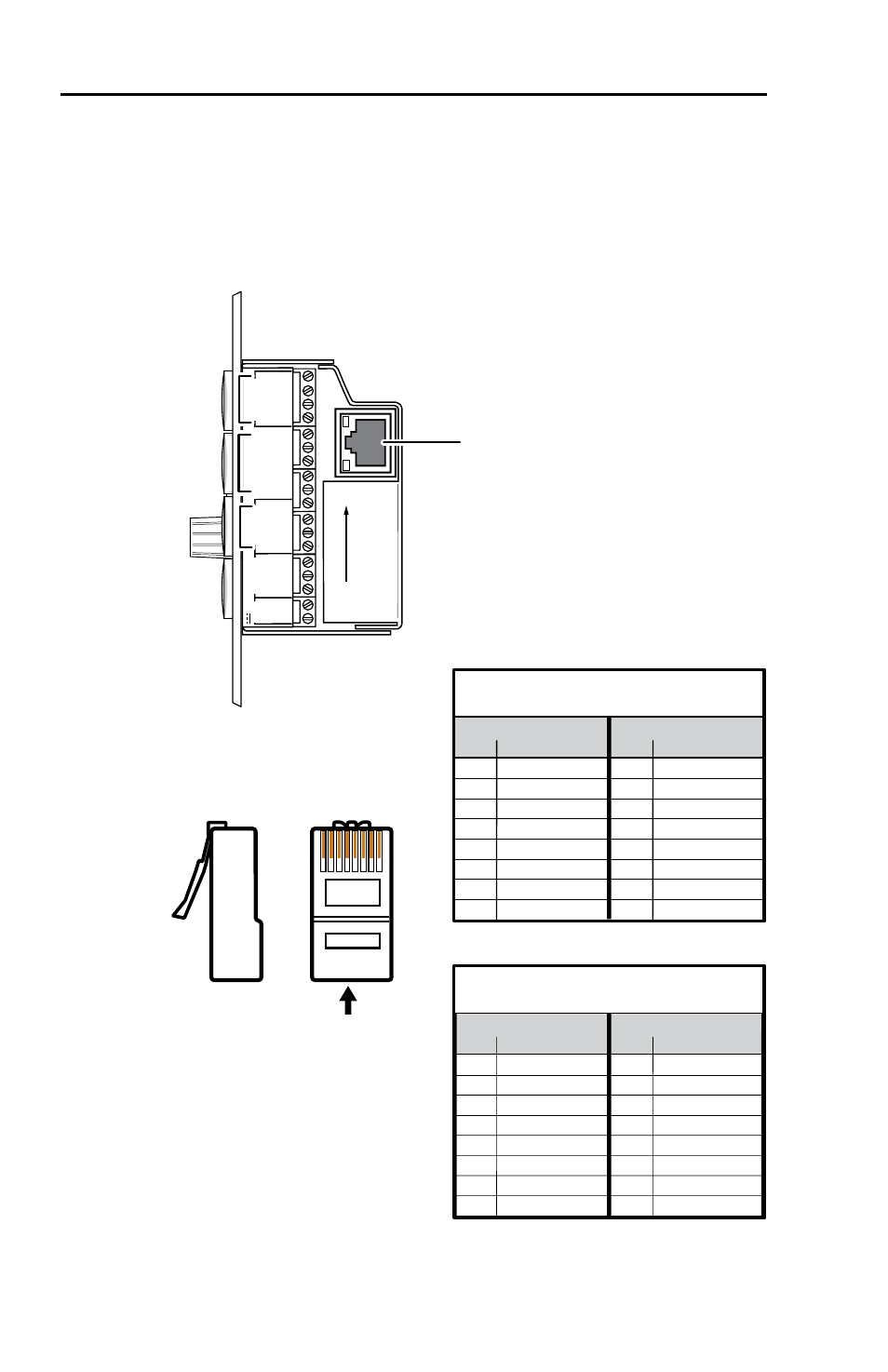

LAN Connection (IP Models Only)
Connect a straight-through Ethernet cable to the LAN connector
if you are connecting to a switch, hub, or router on your
network.
Connect a crossover Ethernet cable to the LAN connector if you
are connecting directly to a PC.
2
3
GROUND
1
IR IN
GROUND
IR OUT
CM
SCP
GROUND
GROUND
Tx
Rx DISPLA
Y
RS-232/IR
LAN
PRESS
TAB
WITH
TWEEKER
TO
REMO
VE
A
B
MLS
PWR
RS-232 12
V
DIGIT
AL
I/O
A B C D
E
COMM LINK +V OUT
GROUND
Tx
Rx
+12V IN
LAN
Connector
12345678
RJ-45 Connector
Insert
Twisted
Pair Wires
Pins:
Side View
Straight-through Cable
(for connection to a switch, hub, or router)
End 1 End 2
Pin Wire Color Pin Wire Color
1 white-orange 1 white-orange
2 orange 2 orange
3 white-green 3 white-green
4 blue 4 blue
5 white-blue 5 white-blue
6 green 6 green
7 white-brown 7 white-brown
8 brown 8 brown
Crossover Cable
(for direct connection to a PC)
End 1 End 2
Pin Wire Color Pin Wire Color
1 white-orange 1 white-green
2 orange 2 green
3 white-green 3 white-orange
4 blue 4 blue
5 white-blue 5 white-blue
6 green 6 orange
7 white-brown 7 white-brown
8 brown 8 brown
