MLC 104 Plus Series • Software Setup
Software Setup, cont’d
3-18
Button modes

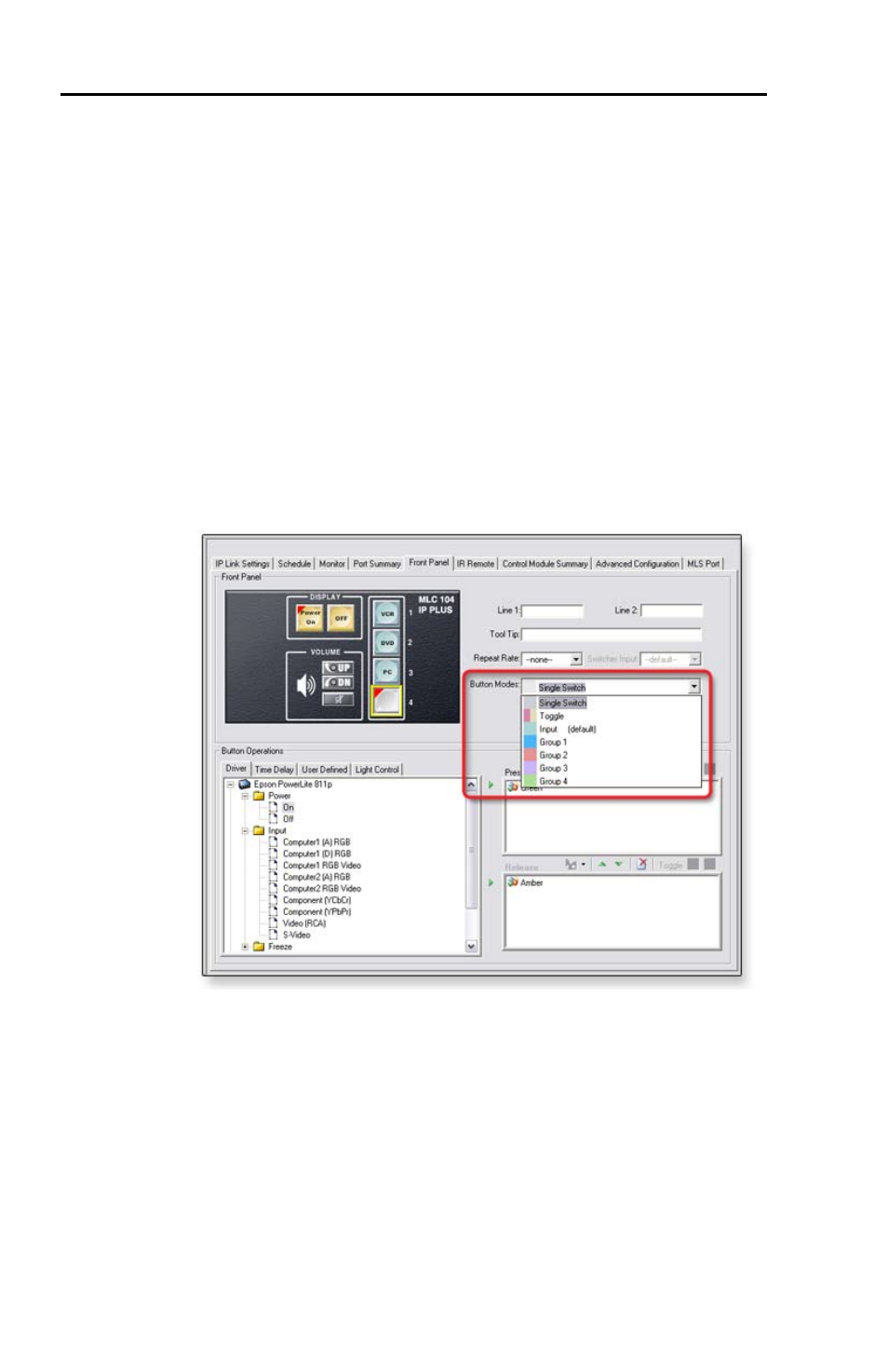

The Set Button Modes options allow the user to apply three
different modes of operation for all buttons on the MLC's front
panel.
Button modes of operation are:
• Single Switch — the pushbutton switch performs the same
function each time it is pressed.
• Toggle — you can assign two different actions to subsequent
depressions of the same pushbutton.
• Input — when this button is activated, the audio or video
input signal that has been associated with this pushbutton is
sent to the display device.
• Group (X) — when multiple pushbuttons are assigned to a
group, only one can be active at a time. When one button is
activated, it deactivates any other currently active button.
