MLC 104 Plus Series • Software Setup
3-23

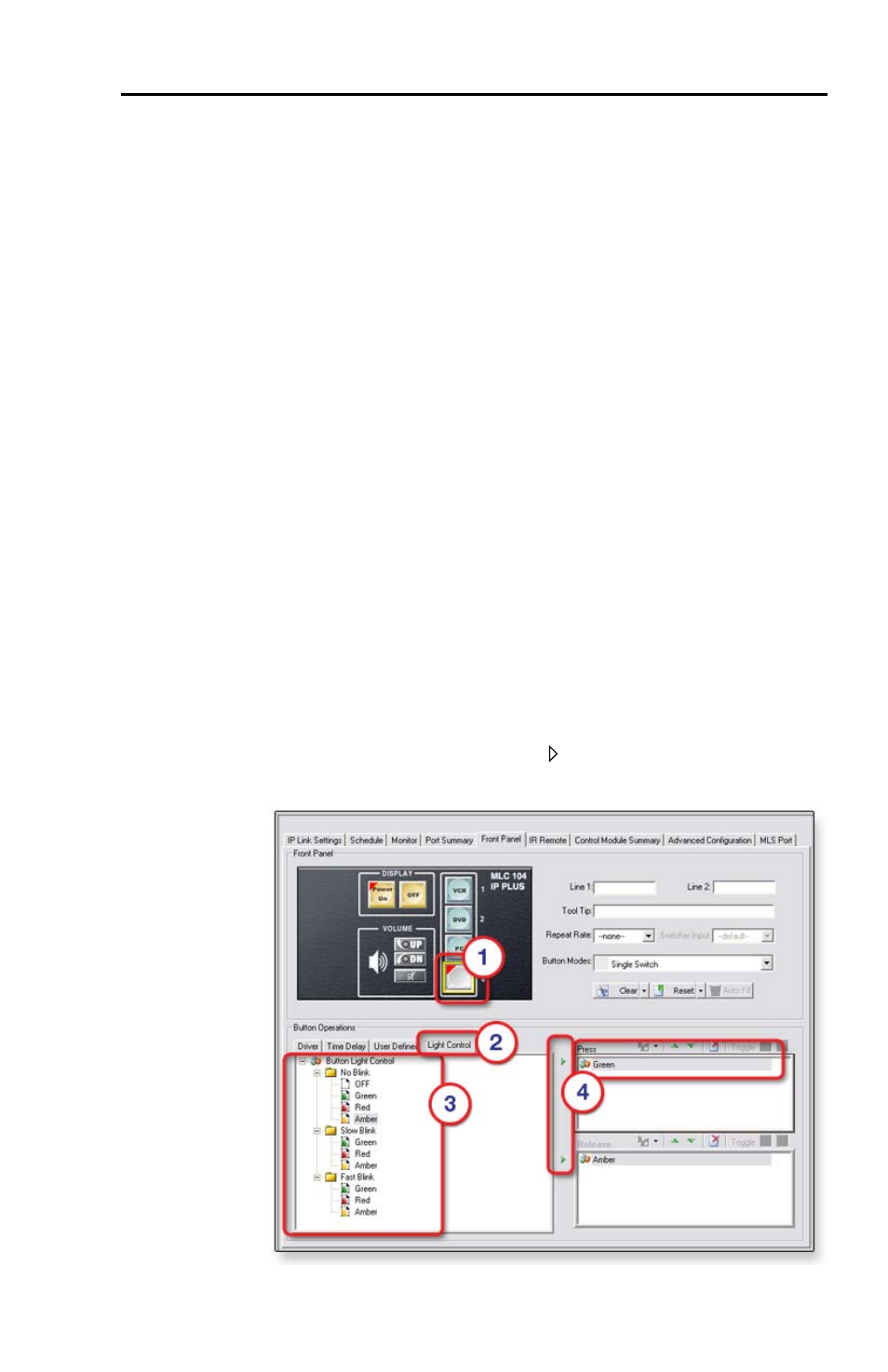

The Button Operations Light Control tab allows users to assign
an indicator color to the Press and Release actions of selected
buttons. Color changes are reflected on both the physical
front panel button and the virtual front panel button in the
GlobalViewer
®
interface (only applies to buttons in single switch
or group mode).
Indicator color options are:
• Off
• Green
• Red
• Amber
Indicator blink options are:
• No Blink
• Slow Blink
• Fast Blink
To assign an indicator color to a button:
1
.
Select a button.
2
.
Click the Button Operations Light Control tab.
3
.
Expand a No Blink, Slow Blink, or Fast Blink folder.
4
.
Drag the desired color icon (Off, Green, Red, Amber) to
either the Press or Release window.
- or -
Use the green right arrows (
) to move the desired color to
the Press window or the Release window.
