ISM 482 Integrated Scaling Matrix Switcher • HTML Operation 62
Output resolution
Select the output resolution as follows:
1. Click in the resolution field. A drop-down scroll box appears (see figure 45).

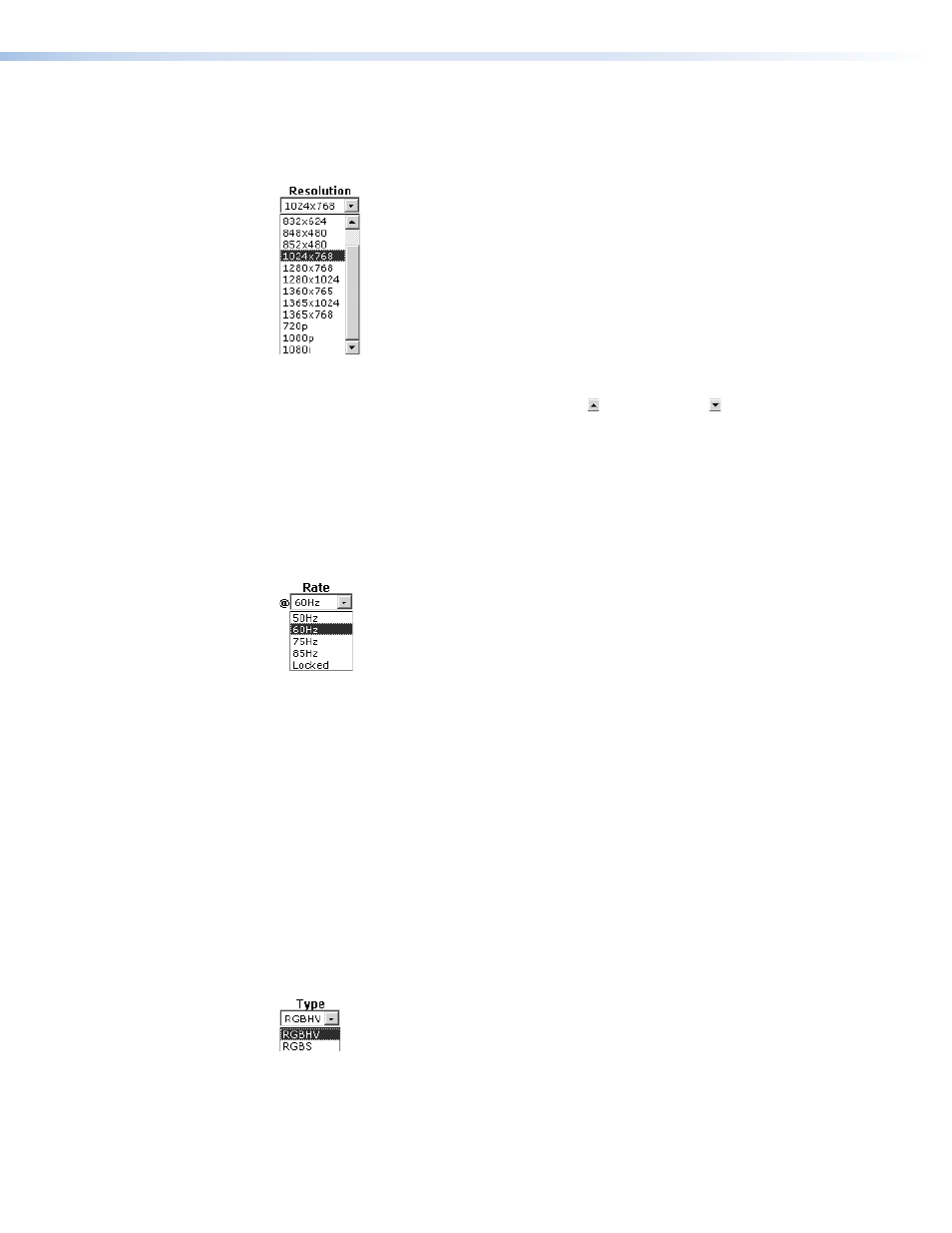

Figure 45. Resolution Scroll Box
2. Click and drag the slider or click the scroll up ( ) or scroll down ( ) button until the
desired rate is visible.
3. Click the desired output.
4. Click the Submit button.
Output rate
Select the output rate as follows:
1. Click in the Rate field. A drop down box appears (see figure 46).
Figure 46. Rate @ Drop Box
2. Click the desired output frequency.
Frequencies that are not available for a specific resolution are marked N/A in the Rate @
drop box.
The drop box selection
Locked enables the Extron Accu-RATE Frame Lock (AFL™)
feature. Accu-RATE Frame Lock eliminates image tearing and other artifacts of scaling
motion video by eliminating frame rate conversion. It exactly matches the output rate of
the ISM to the frame rate of the input 1. Select this feature if you will be using motion
video sources with a display that is capable of a variety of refresh rates.
3. Click the Submit button.
Output format
Select between separate horizontal (H) and vertical (V) sync or composite s sync as follows:
1. Click in the Type field. A drop-down box appears (see figure 47).
Figure 47. Type Drop Box
2. Click the desired sync type.
3. Click the Submit button.
