ISM 482 Integrated Scaling Matrix Switcher • HTML Operation

55

Control Page

On the Control page (see figure 38), you can select an input to either or both outputs. The
Control page also provides facilities to check the frequency of an input and to mute outputs.
Access the Control page by clicking the

Control

tab.

Creating a Tie

Select and switch an input to an output as follows:

1.

Click the

Video/Audio

,

Video

, or

Audio

button to select both the video and audio

planes, the video plane only, or the audio plane only for switching (audio follow or audio
breakaway).

2.

Select an input for output 1 or output 2 by clicking the desired input button for either
output 1 or output 2. After the RGB delay, the selected input is displayed on the
designated monitors. The selected input button turns blue to indicate a video and
audio or video only selection, or yellow to indicate an audio only selection. The RGB
delay is user-selectable (see “Changing the RGB delay,” below).

Changing the RGB Delay

The RGB delay interval for each output defines how long the screen is blanked when you
are selecting a new input for the connected monitor.
Change the RGB delay for an output as follows:

1.

Click in the RGB Delay field for the desired output. A drop-down scroll box appears
(see figure 39).

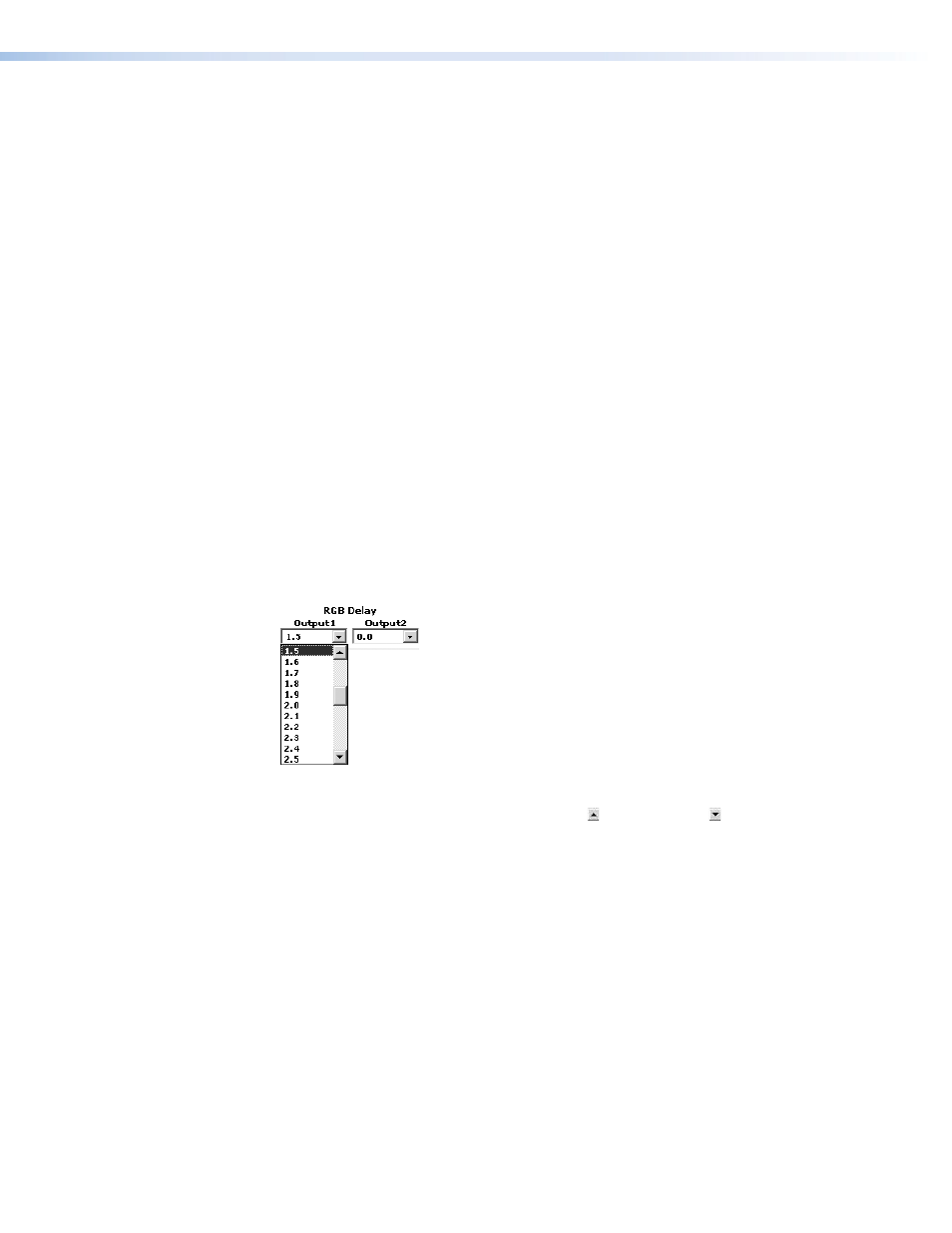

Figure 39.

RGB Delay Scroll Box

2.

Click and drag the slider or click the scroll up ( ) or scroll down ( ) button until the
desired interval is visible.

3.

Click the desired interval.

Blacking out the Screen and Muting the Audio

You can mute the video (blackout the screen) and/or audio to output 1 and/or output 2 from
the control page as follows:

1.

Click the

Video/Audio

,

Video

, or

Audio

button to select both the video and audio

planes, the video plane only, or the audio plane only for muting.

2.

Click the Output 1 or Output 2

Black/Mute

button. The

Black/Mute

button turns

blue to indicate a video and audio mute or video only mute, or it turns yellow to indicate
audio mute. If you muted the output that is selected on the front panel, the front panel
Black and/or Mute LEDs light.
Click the

Black/Mute

button again to unmute the video and/or audio.
