ISM 482 Integrated Scaling Matrix Switcher • Switcher Software 52
Using the Software
1. To run the Button-Label Generator program, click Start > Programs > Extron
Electronics > Button-Label Generator . Extron’s Button-Label Generator window
appears (see figure 36).
2. Under Systems selection, choose ISS 408/ISM 482. This selection creates the correctly
sized labels for the ISM’s label strip. The button label editing area changes to reflect the
number and arrangement of buttons on the device.

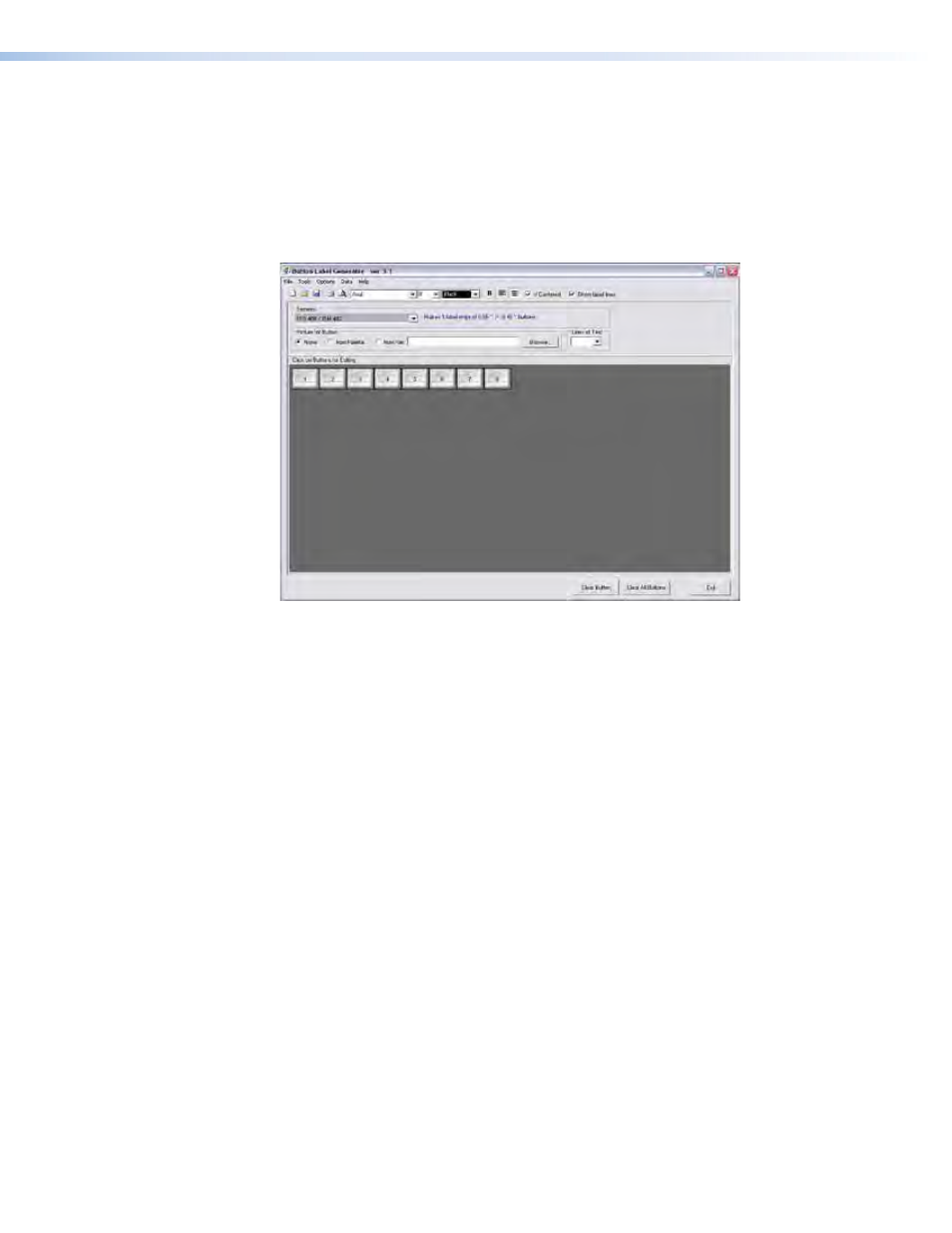

Figure 36. The Extron Button-Label Generator Window
3. Using standard Windows controls, you can create and print labels that can be cut out
and placed in the label windows on the front panel of the ISM.
For information about using the program, you can access a help file by clicking on the
Help menu on the main screen and choosing Show Help .
You can also see an example of a completed Extron Button-Label Generator window
by clicking the
Help menu on the main screen, choosing Show Help , and clicking the
Load Demo button.
