ISM 482 Integrated Scaling Matrix Switcher • Switcher Software 50

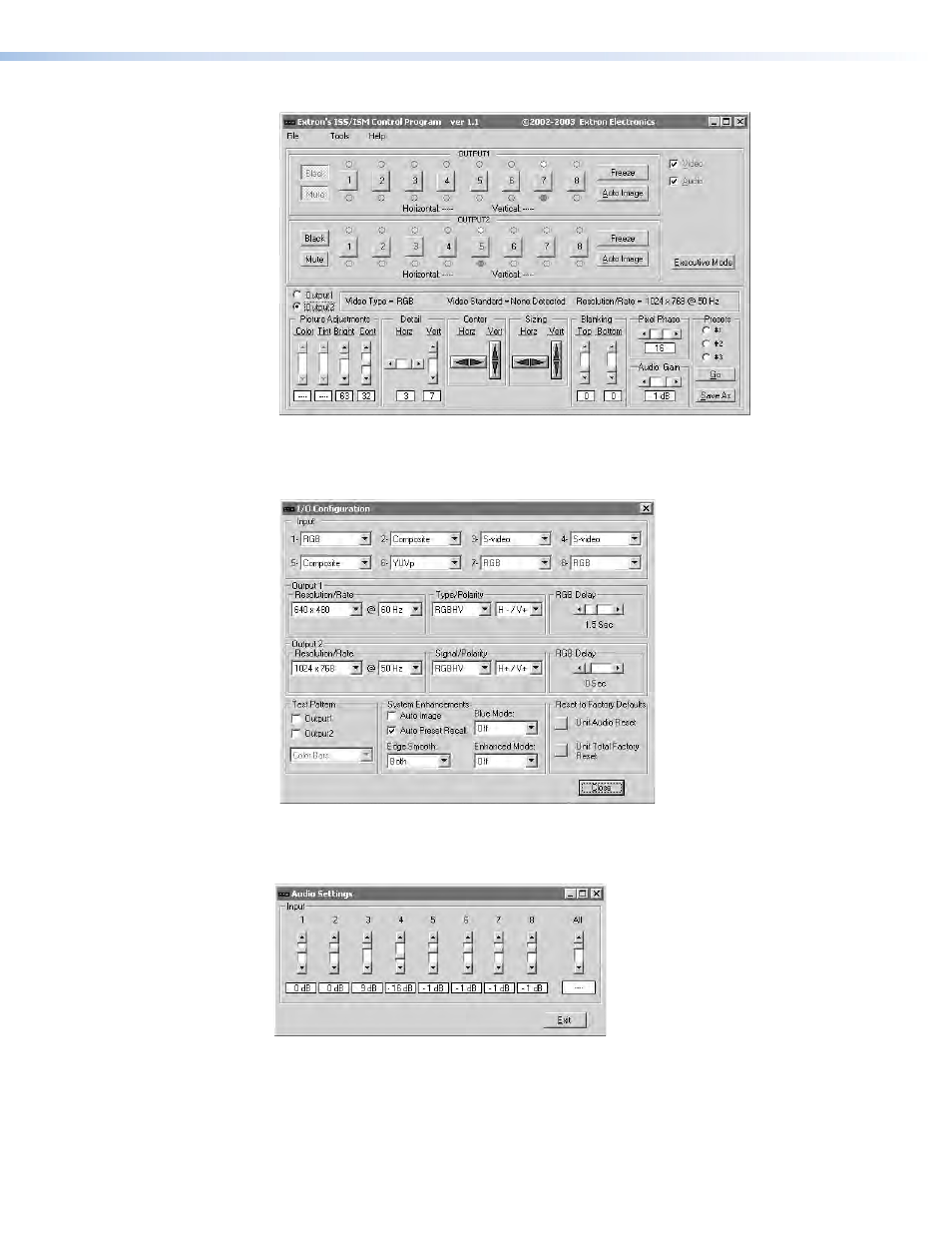

Figure 32. Windows Control Program Window
5. If desired, on the task bar click Tools > I/O Configuration to configure the video
inputs and outputs in the I/O configuration window (see figure 33).
Figure 33. Control Program I/O Configuration Window
6. If desired, on the task bar, click Tools > Audio Settings to set each input’s audio level
or attenuation in the Audio Settings window (see figure 34).
Figure 34. Control Program Audio Settings Window
