ISM 482 Integrated Scaling Matrix Switcher • Installation
8
Standard Output Connections
NOTE: The two Output 1 outputs, consisting of five BNC connectors and a
15-pin HD connector, output the identical video signal and the same sync format.
The two Output 2 outputs are also identical to each other.
d
Video output BNC connectors — Connect RGB video displays to these two sets of
female BNC connectors. Figure 7 shows how to connect the various video formats.
H/
HV
R
G
B
H
/HV
RGBHV
Video
RGBS
Video
V
R
G
B
V

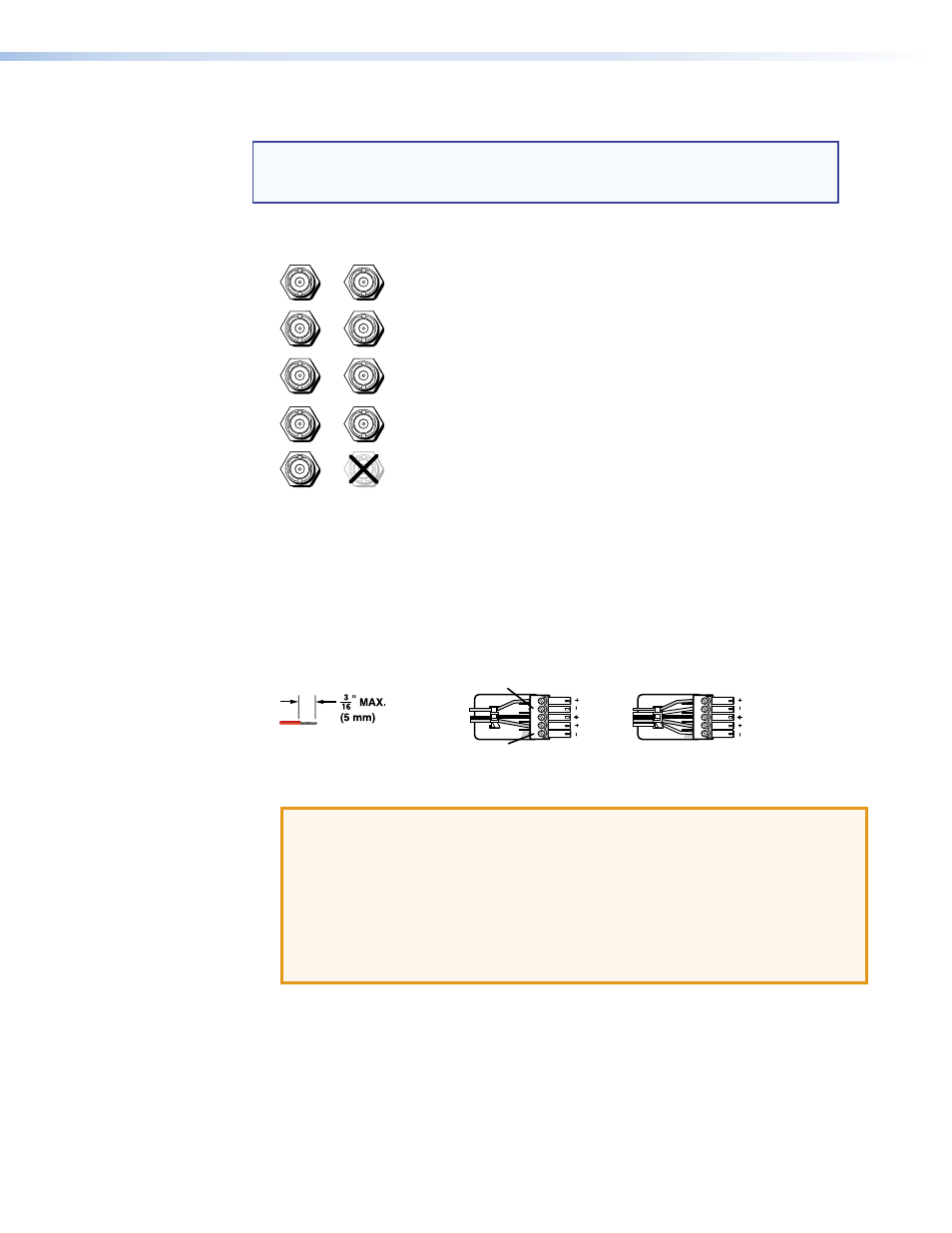

Figure 7.
BNC Output Connections for RGBHV and RGBS Video
Video output 15-pin HD connectors — Connect RGB video displays to these two
female 15-pin HD connectors.
e
Audio output connectors — Connect audio devices, such as an audio amplifier
or powered speakers, to these two 3.5 mm, 5-pole captive screw connectors. The
connectors output the selected unamplified, line level audio. See figure 8 to properly
wire an output connector.
Unbalanced Stereo Output
Balanced Stereo Output
Do not tin the wires!
Tip
Ring
Tip
Ring
Sleeves
Tip
No Ground Here
No Ground Here
Tip
Sleeves
LR
LR
Figure 8.
Captive Screw Connector Wiring for Audio Output
ATTENTION:
•
Connect the sleeve to ground (Gnd). Connecting the sleeve to a negative (-)
terminal will damage the audio output circuits.
•
The length of exposed wires is critical. The ideal length is 0.2 inches (5 mm).
•
If the stripped section of wire is longer than 0.2 inches, the exposed wires
may touch, causing a short circuit between them.
•
If the stripped section of wire is shorter than 0.2 inches, wires can be easily
pulled out even if tightly fastened by the captive screws.
By default, the audio output follows the video switch. Audio breakaway, commanded via
the front panel, the Ethernet link, or the RS-232 link, allows you to select from any one
of the audio input sources. See the applicable portions of the
(see page 50), and
