ISM 482 Integrated Scaling Matrix Switcher • Operation 25
Picture Adjustments
The picture adjustments allow you to fine tune the image quality of the selected input.
When you press one of the Picture Adjustments buttons (Color/Tint, Brightness/Contrast,
Size, Center, or Filter) once, the corresponding image adjustment menu for the selected
output (lit Output LED) image appears on the LCD screen. Select the other output using the
Output buttons to call the image adjustment menu for the other output. In either screen,
adjustments can then be made by rotating the Adjust knob or the Adjust knob. Picture
adjustment settings are stored in nonvolatile memory; when the switcher is powered down
and powered up, the settings are restored.
Adjust an image for centering, sizing, brightness, contrast, color, tint, zoom, or detail as
follows (see figure 23):
10 sec.
timeout
2 sec. 2 sec.
Display
Cycle
Power
on
COLOR/
TINT
BRT/
CONT
SIZE CENTER FILTER
Extron Electronics
ISM 482
Integration
Scaling Matrix
Extron Electronics
ISM 482
60-425-01
Version xxxx
Output #1
Color Tint
127 128
Output #1
Brightness Contrast
063 063
Output #1
Horz Size Vert
450 400
Output #1
Horz Center Vert
500 550
Output #1
Horz Filter Vert
3 7
NOTE: The Adjust knob and the Adjust knob
are used to adjust the image settings on the
left and right sides of the LCD screen,
respectively.
NOTE: Press the appropriate output button
to select the desired output.

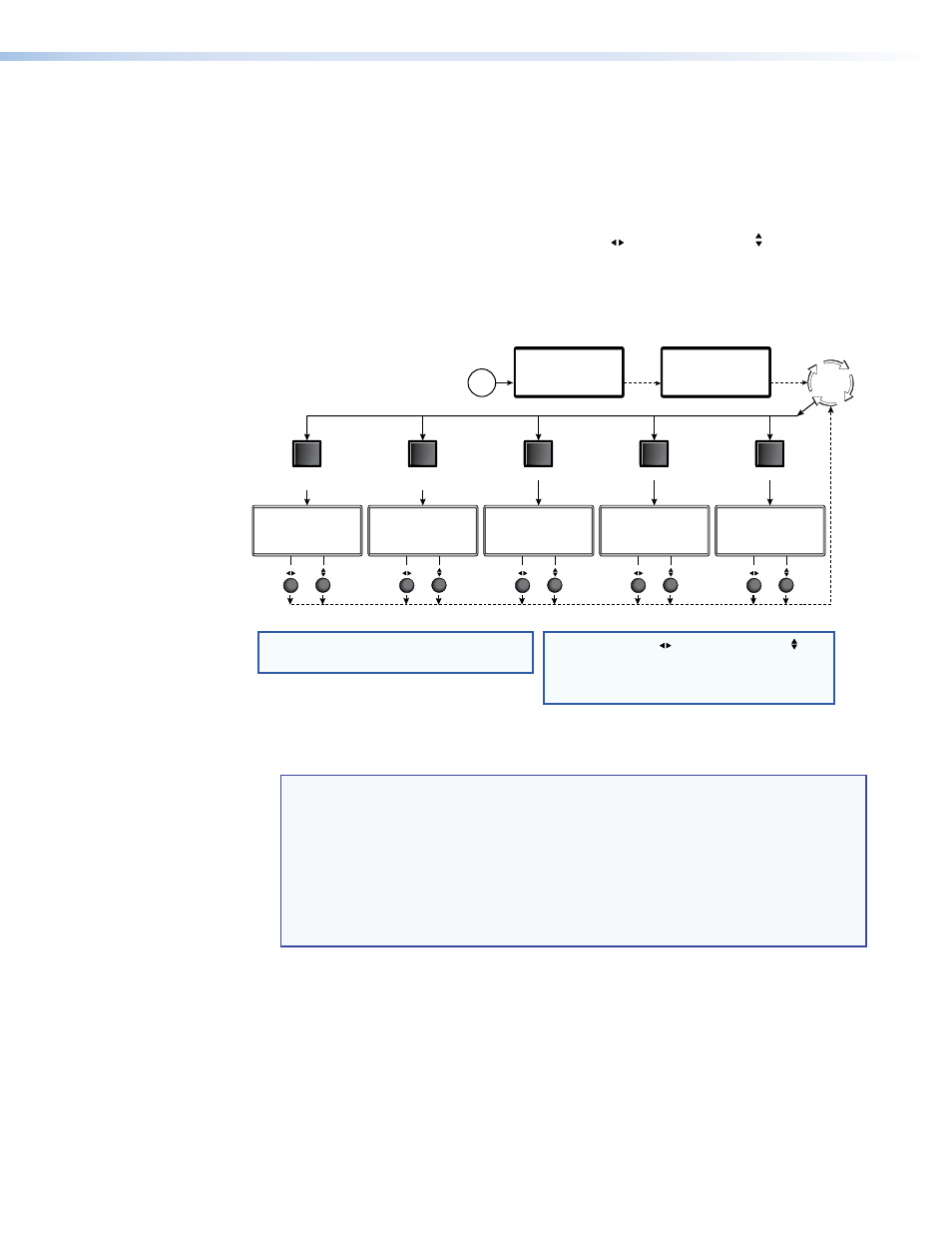

Figure 23. Picture Adjustments Flowchart
1. Press the desired input button and output button to select an input-output tie to adjust.
NOTES:
• The adjustments are made to the input signal as it is switched to the tied
output (1 or 2) only. (The output LED is lit and the selected output is shown
in the LCD). The adjustments do not affect the same input tied to the other
output.
• Color adjustments are available only for component video, S-video, and
composite video inputs.
Tint adjustments are available only for S-video and composite video inputs.
2. Press the appropriate picture adjustment button: color and tint, brightness and contrast
(Brt/Cont), sizing (Size), centering (Center), or filter. The LCD display shows the name of
the adjustment and the current setting value.
