FOX 500 Tx/Rx • Operation
Operation, cont’d
3-4 FOX 500 Tx/Rx • Operation 3-5
Menu system overview

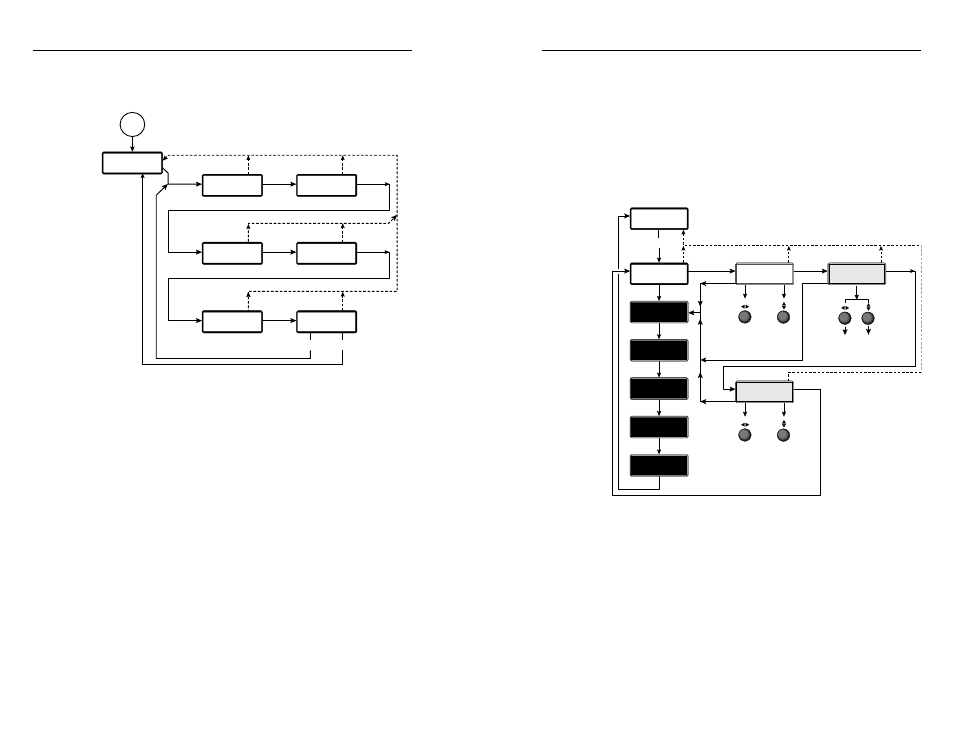

Figure 3-2 shows a flowchart of the main menus in the menu
system.
Menu
Power
on
Menu
Next
Menu
Menu
Menu
Menu
30 sec.
30 sec.
CONTROL
Menu
Menu
30 sec.
Menu
OUTPUT
CONFIG
30 sec.
MEMORY
PRESETS
30 sec.
30 sec.
AUDIO
CONFIG
ADVANCED
CONFIG
EXIT MENU
PRESS NEXT
FOX 500
nn.nk nnHz
Figure 3-2 — Menu system flowchart
Menu button — Press the Menu button to activate the menu
system and to scroll through the five main menus and the
exit menu. The currently selected menu appears in the LCD.
Next button — Press the Next button to move between the
submenus of a selected main menu, to activate one for
viewing or configuration, and to save a selection.
Adjust [ and Adjust { knobs — When in a submenu, rotate
the Adjust [ knob and Adjust { knob to scroll through
the submenu options and select a setting. Refer to the
flowcharts in this chapter and to specific sections for
explanations on knob adjustments.
N If you press the Menu button while a main menu is
active, the next main menu becomes active.
If you press the Menu button while a submenu is active,
the LCD backs up to display that submenu’s main menu.
N To return to the default screens, let the receiver remain
idle for 30 seconds until the selected screen times out,
or press the Menu button until the Exit Menu appears,
then press the Next button.
N Where a submenu is marked as unavailable in the
following pages, the submenu flow skips over the
unavailable submenus completely.
N From any menu or submenu, after 30 seconds of
inactivity, the receiver saves all adjustment settings and
times out to the default (FOX 500) LCD display.
Picture Control menu
Figure 3-3 is a flowchart that shows an overview of the Picture
Control menu, its submenus, and the available settings.
ADVANCED
CONFIG
Menu
Menu
30 sec.
000 to
255 000 to
255
000 to
255
Menu
Next
Menu
Menu
Menu
CONTROL
30 sec.
000 to
255
00 to
31
30 sec.
* This submenu is only
available when both fiber
cables are installed
between the transmitter
and receiver.
Next
Menu
Menu
Next
Next
OUTPUT
CONFIG
AUDIO
CONFIG
MEMORY
PRESETS
EXIT MENU
PRESS NEXT
Menu
Menu
FOX 500
nn.nk nnHz
H POS V
128 128
HORZ START
0000
Tt Pix Phase
0000 000
*
*
Figure 3-3 — Picture Control menu flowchart
N The Horizontal Start and Total Pixels/Pixel Phase
submenus are only available when both fiber cables are
installed between the transmitter and receiver.
Position submenu
The position submenu allows you to shift the receiver's output
image horizontally and vertically on the display. Rotate the
Adjust [ knob to shift the image horizontally. Rotate the
Adjust { knob to shift the image vertically.
