Sondes Section 2
YSI Incorporated Environmental Monitoring Systems Operations Manual 2-18
INSTALLING BATTERIES
The 600XLM, 6600V2-2, 6600EDS V2-2, 6600V2-4, 6920V2-1, 6920V2-2 and battery version of the 600
OMS V2-1are the sondes that use alkaline batteries for power. A set of batteries is supplied with each of
these sondes. If you do not have one of these sonde model types, you may skip this section.
INSTALLING BATTERIES INTO THE YSI 600XLM OR 600 OMS V2-1 SONDES

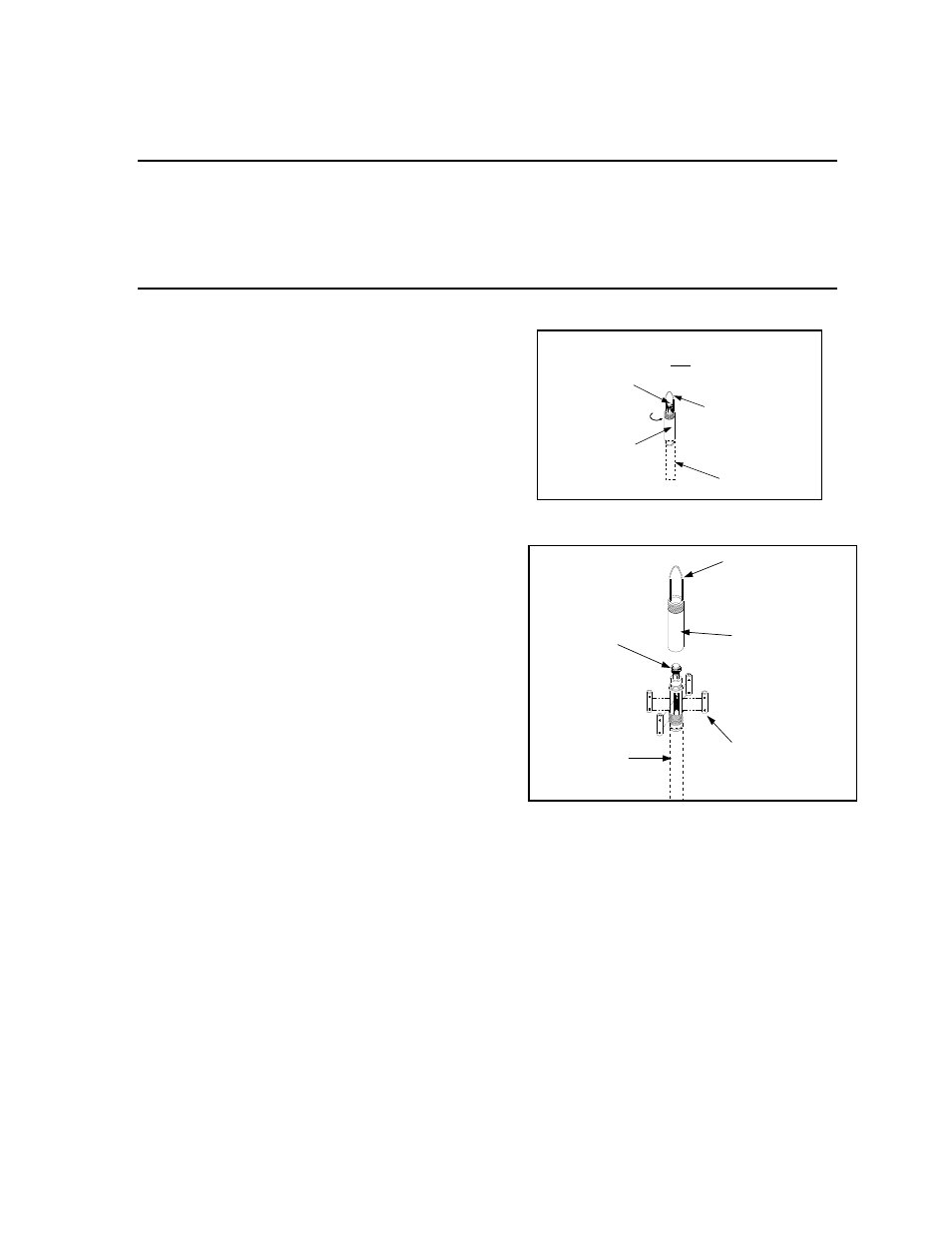

Figure 33
To install 4 AA-size alkaline batteries into the sonde, refer to
the following directions and Figure 33.
Grasp the cylindrical battery cover and unscrew by hand.
Then slide the battery lid up and over the bulkhead
connector. Insert batteries, paying special attention to
polarity. Labeling on the battery compartment posts
describes the orientation. It is usually easiest to insert the
negative end of battery first and then “pop” the positive
terminal into place.
Figure 34
Check the O-ring and sealing surfaces for any contaminants
that could interfere with the O-ring
seal of the battery chamber.
CAUTION:
Make sure that there are NO contaminants
between the O-ring and the sonde. Contaminants that
are present under the O-ring may cause the O-ring to
leak when the sonde is deployed.
Lightly lubricate the o-ring on the outside of the battery
cover. DO NOT lubricate the internal o-ring.
Return the battery lid and tighten by hand.
DO NOT OVER-TIGHTEN.
BAIL
BULKHEAD
CONNECTOR
WITH CAP
AA BATTERIES x 4
(NOTE POLARITY)
SONDE BODY
(NOT SHOWN)
SCREW ON
BATTERY CAP
BATTERY
CAP
BULKHEAD
CONNECTOR
SONDE
BODY
DO NOT USE BAIL FOR LEVERAGE
WHEN REMOVING BATTERY CAP!
BAIL
