Installation Guide LP 33 Series 10-20 kVA
4.1 SERIAL PORT J27 - RS232
LPS33U_030-04
0_UPS+J27_01
OFF
ON
OFF
ON
J27

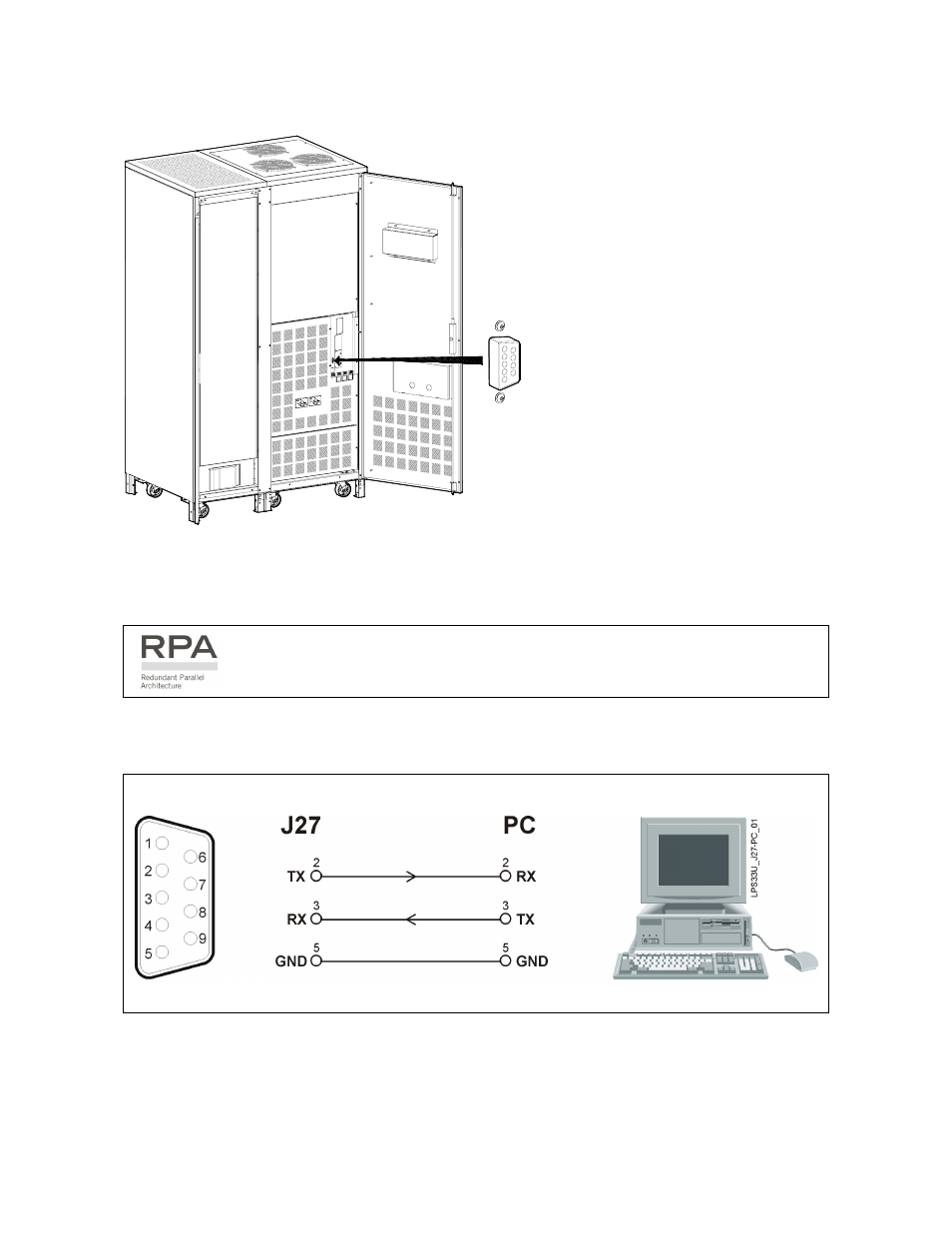

Fig. 4.1-1 Serial Port J27 – RS232
Serial Port J27 - RS232
(sub - D, female 9 pin)
Total remote management of the
system using new generation software
JUMP (Java Universal Management
Platform) for system protection and
management of systems using GE
UPS’s.
JUMP system is written in JAVA and
supports virtually all platforms having
JAVA runtime environment.
The serial port J27 - RS232 is enabled on all the units of the parallel system.
Serial port J27 – RS232 connection to PC with RS232 1:1 cable DB9m – DB9f
Fig. 4.1-2 Serial port J27 - RS232 connection to PC
