Chapter 6: EntelliPro CP3 and CP5 application
The EntelliPro CP3 device is a touch control display in tegrated into the Motor Control Center MCC for local control; alarm
handling; and visualization the device status, values, and parameter settings.
EntelliPro ES parameters cannot be set via the main panel.
The EntelliPro CP3 application has been created to operate and handle the 11 pre-programmed drive typical, such as DOL , DOL

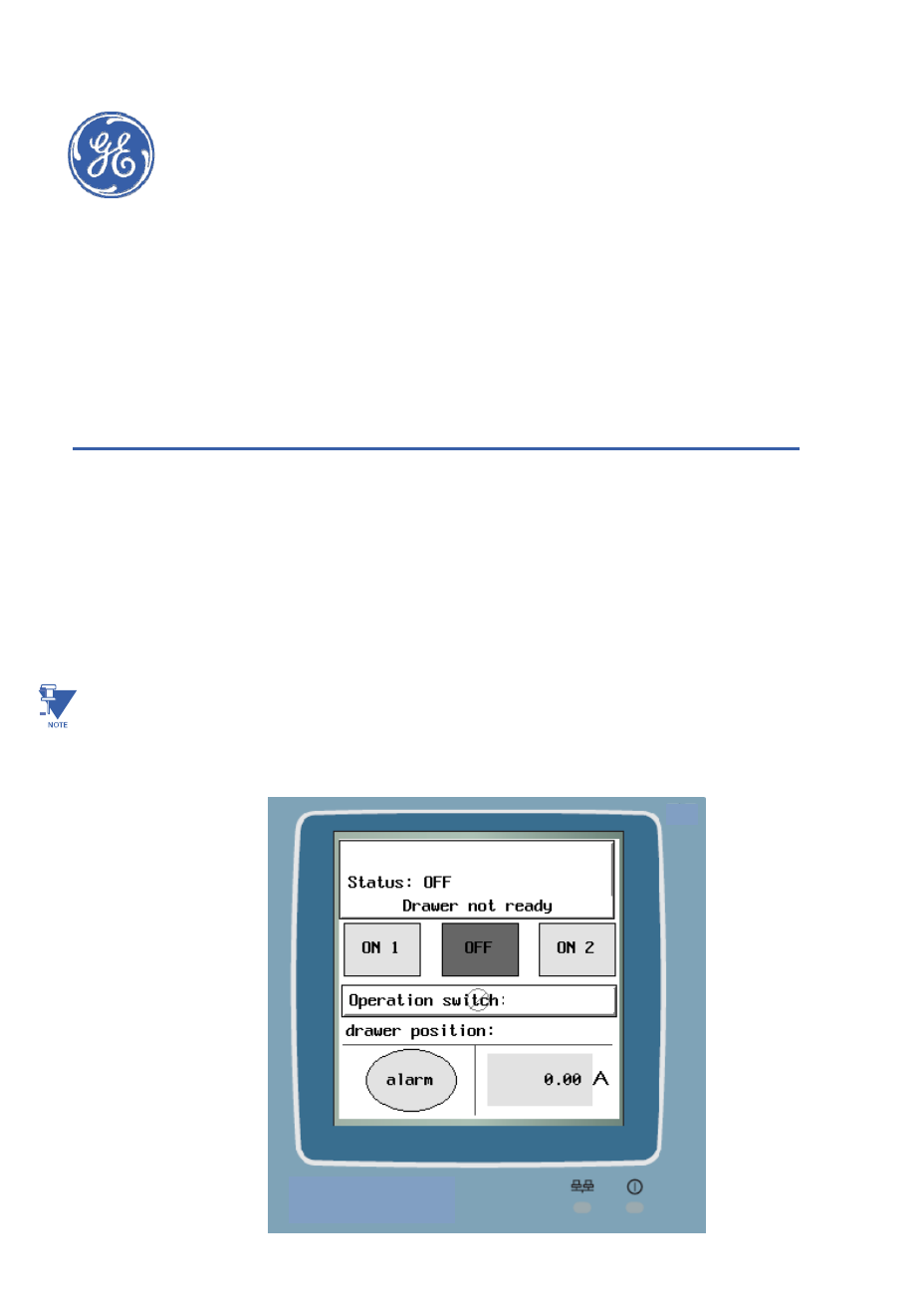

The next two figures show the Entellipro CP3 main panel and parameters descriptions.
Reverse, Star Delta, Star Delta reverse, Soft starter, Soft starter reverse, Breaker control, Dahlander, Pole changing starter, Solenoid
valve, and Actuator.
2 : Valve 1
local
operate
EPOS MOTOR MANAGEMENT SYSTEM – INSTRUCTION MANUAL 6.1
CHAPTER 6: ENTELLIPRO CP3 and CP5 APPLICATION
6.1 EntelliPro CP3 Main panel
NOTE: If the drive typical value is set to “Fully free logic,” the Modbus data interface of the free logic must follow the EntelliPro ES
standard. Otherwise the data in the EntelliPro CP application might be incorrect.
