GE Industrial Solutions EntelliPro ES User Manual
Page 223
EP OS MOTOR MANAGEMENT SY STEM – INSTRUCTION MANUAL
CHAPTER 5: WinESG
5.2
7

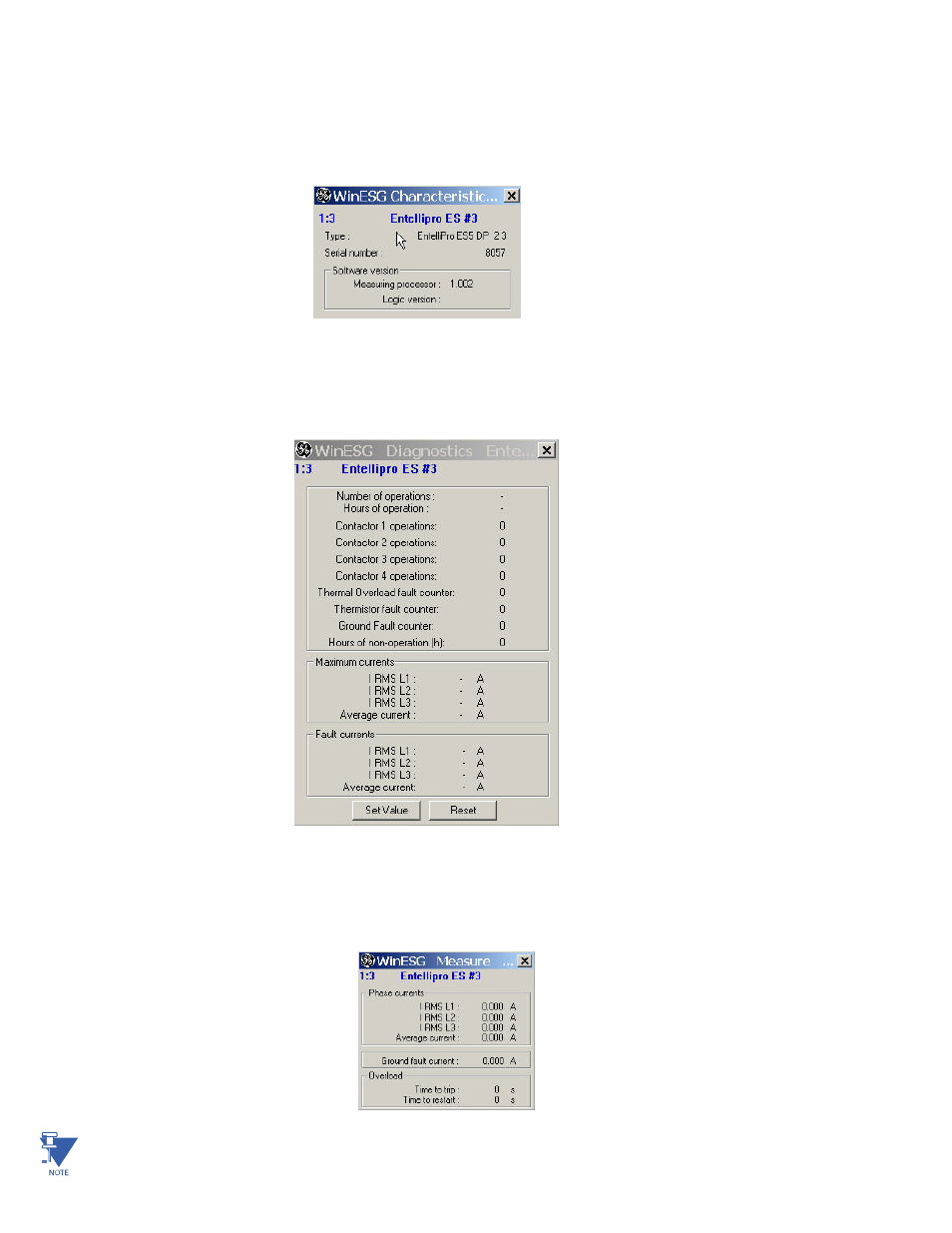

5.3.2.12 Char (Characteristic)
panel
The characteristic (Char) window
shown below, displays the device type (catalog), unit serial number, software version and
the fully flexible logic version if available.
5.3.2.13 Diagnostic panel
The diagnostic panel
shown below, shows the operations counters, trip information, maximum currents, and fault currents. The
operations counters can be set by pressing “set value” or reset by pressing the “Reset” button.
5.3.2.14 Measure panel
The measure panel shows the phases and average RMS currents, ground fault currents, time to trip and time to
reset.
NOTE:
Motor cannot start if the time to reset is non-zero.
