4 parameterization function panel – GE Industrial Solutions EntelliPro ES User Manual
Page 215
EP OS MOTOR MANAGEMENT SY STEM – INSTRUCTION MANUAL
CHAPTER 5: WinESG
5.1
9
5.3.2.4 Parameterization Function panel
The function panel provides a means to define motor operation during start-up, enable the debug screen, and select
the type of parameterization. Refer to figure 5-10 for the WinESG parameterization function panel.

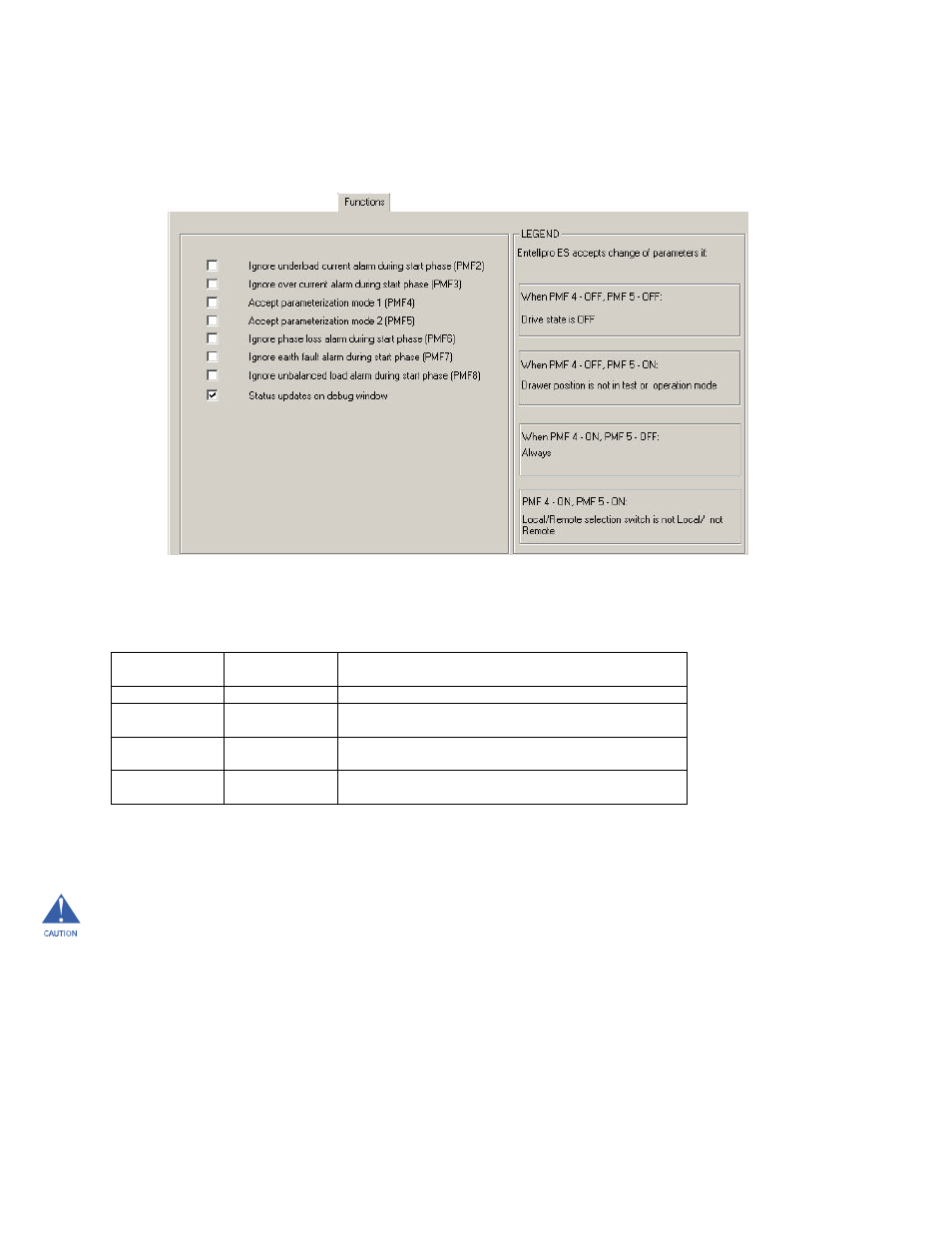

Figure 5-10-: WinESG parameterization function panel
Parameterization definition:
Parameterization
Mode 1:
Parameterization
Mode 2:
Operation
Disabled
Disabled
Parameterization allowed only when motor is in stop condition
Enabled Disabled
Parameterization
allowed via Profibus while motor is at any
state.
Disabled Enabled
Parameterization allowed via Profibus when draw out position
is not in test or operation mode
Enabled
Enabled
Parameterization allowed via Profibus when the operation
mode is not Remote or Local.
Status updates on debug window:
allow viewing of logic variables in the debug panel
CAUTION:
Debug panel should only be enabled for testing purpose. On normal operation It should be disabled.
