GE Industrial Solutions EntelliPro ES User Manual
Page 198
CHAPTER 5: WinESG
EP OS MOTOR MANAGEMENT SYSTEM – INSTRUCTION MANUAL
5.2
NOTE:
The standard value in prepared XML files is set to "Use the last edited file".

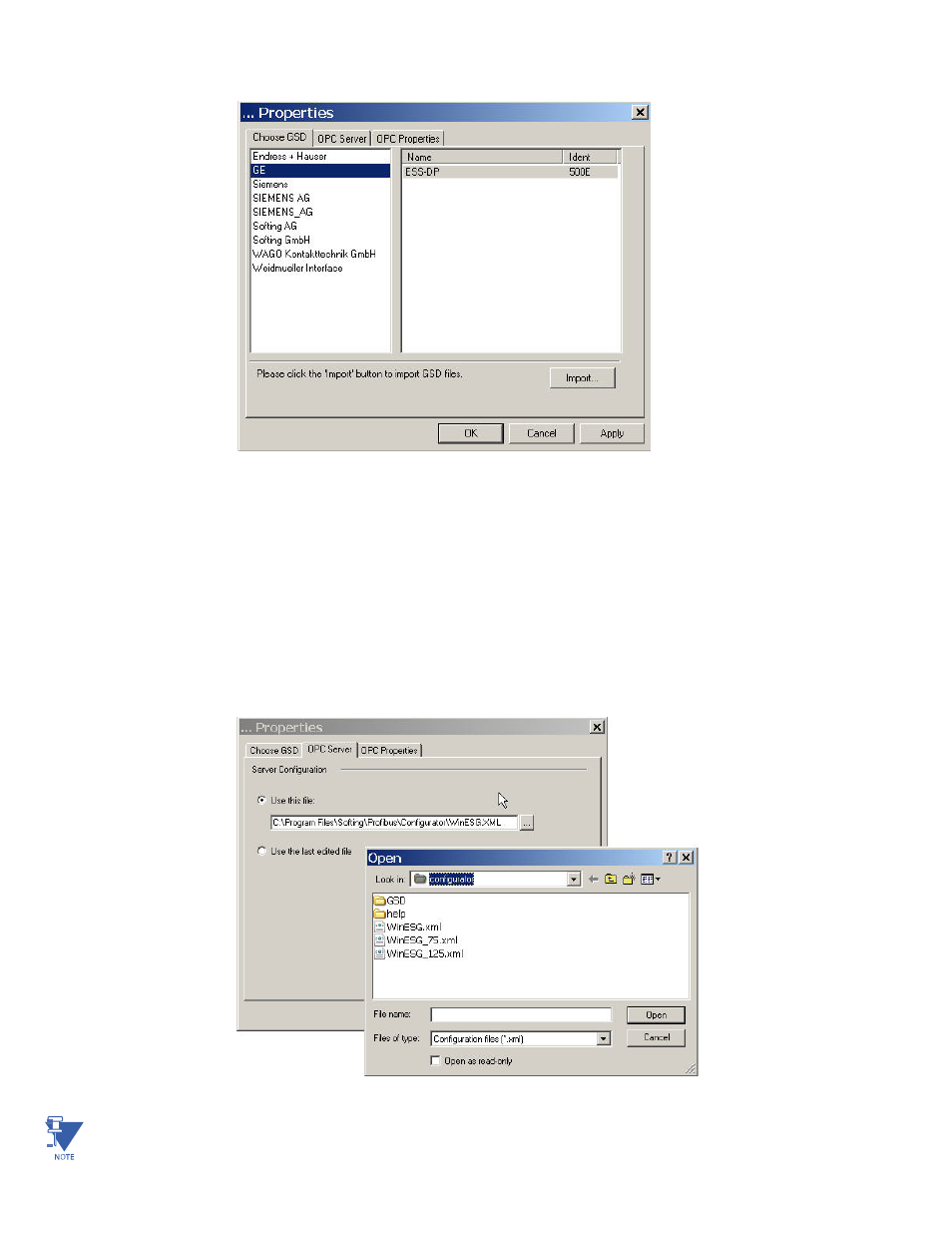

Step 4: From the Options menu, open the Settings window and select the OPC Server tab.
Browse the directory (C:\Program files \ Softing \ PROFIBUS \ Configurator) to select the appropriate XML
WinESG.xml has four configurable slave devices. Slaves adress from 1 to 4.
WinESG_75 has 75 configurable slave devices. Slaves adress from 1 to 75.
WinESG_125 has 125 configurable slave devices. Slaves adress from 1 to 125.
Users can create their own XML file from the pre-defined list with spefic number of slaves.
.
.
if "Use the last edited file" is selected the OPC Server automatically opens the last saved configuration file when starting up.
.
NOTE
: The configuration must not be activated when Win ESG starts up.
Step
Step 8: Save the project by selecting File, Save.
