Galaxy Power System Verification Procedures
4 - 22 Replacement Procedures Issue 3 January 2008
GPS4848 Replacement Procedures, continued
Replacing a 595A
or 595B Rectifier
Fan Assembly
Step Action
1 Follow instructions in the “Removing a Rectifier” procedure
in this section.
2 Place rectifier on a flat surface at a comfortable working
height.
3 Loosen the front cover (white) by removing 14 screws (5
top, 5 bottom, 2 on each side). Before fully removing the
cover, disconnect the ribbon cable from the display circuit
pack.
Caution
Allow the front end of the rectifier to overhang the
working surface. To remove bottom screws, turn the
rectifier on its side, or work below the table surface.
Never tilt the front of the unit to gain access to the bottom
screws. This will result in damage to the rear connector.
To Display
All Screws Shown Except for
Fan Mounting Screws Below
#6-32 x 5/16" (846743656)
Torque to 10 in-lbs (1.1 Nm)
Fan Mounting Screws
#6-32 x 2 1/4" (846427839)
Torque to 10 in-lbs (1.1 Nm)
Fans
(846427839)
Comair PQ4887X-031868
Threaded Taper Pin
Torque to 10 in-lbs (1.1 Nm)

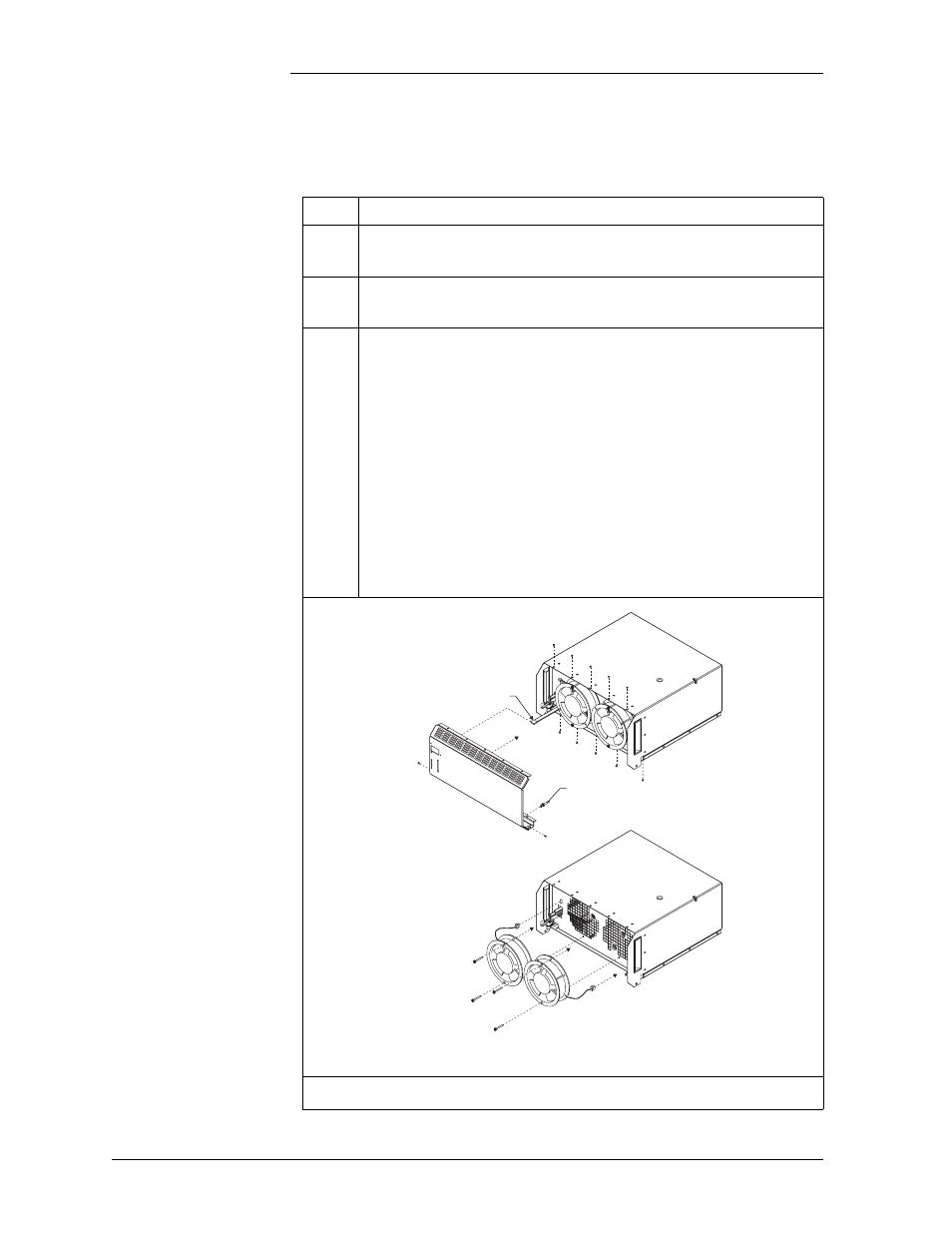

Figure 4-6: Replacing a Rectifier Fan Assembly
Continued on next page.
