Galaxy Power System Verification Procedures
Issue 3 January 2008 Replacement Procedures 4 - 19
GPS4848 Replacement Procedures, continued
Installing or
Replacing a 595A
or 595B Rectifier,
continued
!
Step Action
3 Install the rectifier. See Figure 4-5.
a. Verify the output circuit breaker is OFF and that the
rectifier power switch is in the “Standby” position.
b. Slide the unit slowly onto the shelf until it contacts the
rear connector.
Note: Install rectifiers vertically, starting at the bottom
position and working upward.
c. Remove the label over the access window. Using a 5mm
Allen-head “T” wrench, turn the locking screw clockwise
to secure the rectifier to the shelf.
Rectifier Shelf
in Cabinet
Rectifier
Insertion Tool

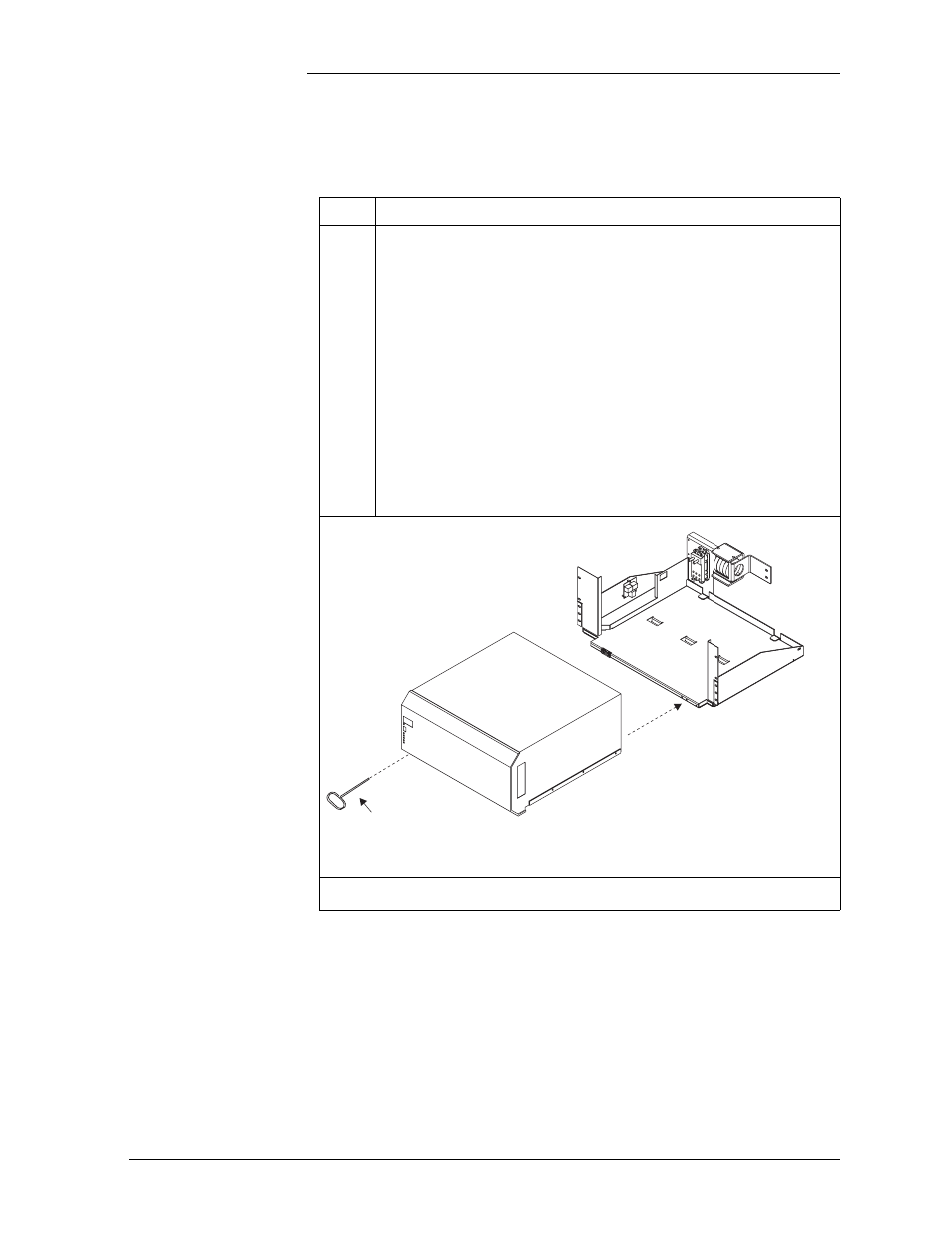

Figure 4-5: Installing a Rectifier in a Rectifier Shelf
Continued on next page.
